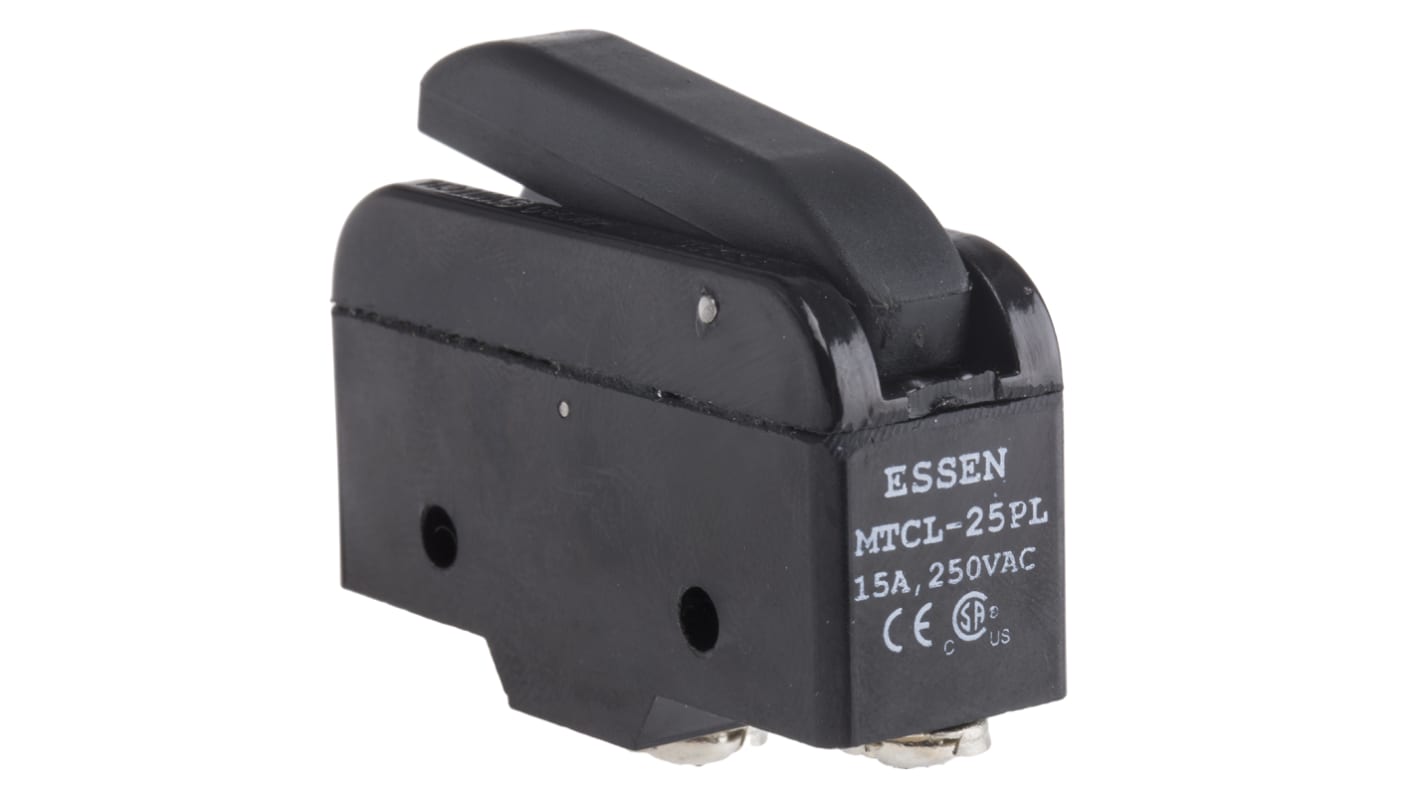

RS PRO Lever Micro Switch, Screw Terminal, 15 A, 250 V ac, SPCO, IP40
- RS Stock No.:
- 797-2520
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
Kr. 139,04
(exc. VAT)
Kr. 173,80
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 82 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 139,04 |
| 10 - 24 | Kr. 127,56 |
| 25 - 49 | Kr. 122,75 |
| 50 - 99 | Kr. 118,18 |
| 100 + | Kr. 114,29 |
*price indicative
- RS Stock No.:
- 797-2520
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Micro Switch | |
| Actuator Type | Lever | |
| Terminal Type | Screw | |
| Switch Contact Current | 15 A | |
| Housing Material | Plastic | |
| Contact Configuration | SPCO | |
| IP Rating | IP40 | |
| Operating Force | 185g | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Contact AC Voltage | 250V ac | |
| Width | 17.6 mm | |
| Mechanical Life | 1000000Operations | |
| Hazardous Area Certification | No | |
| Length | 49.4mm | |
| Standards/Approvals | RoHS, CSA, CE, IEC 1058-1 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Micro Switch | ||
Actuator Type Lever | ||
Terminal Type Screw | ||
Switch Contact Current 15 A | ||
Housing Material Plastic | ||
Contact Configuration SPCO | ||
IP Rating IP40 | ||
Operating Force 185g | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Contact AC Voltage 250V ac | ||
Width 17.6 mm | ||
Mechanical Life 1000000Operations | ||
Hazardous Area Certification No | ||
Length 49.4mm | ||
Standards/Approvals RoHS, CSA, CE, IEC 1058-1 | ||
- COO (Country of Origin):
- IN
Heavy Duty Microswitch (15A)
Single pole reverse acting changover switches available with a variety of actuators
Standards
IEC 1058-1
