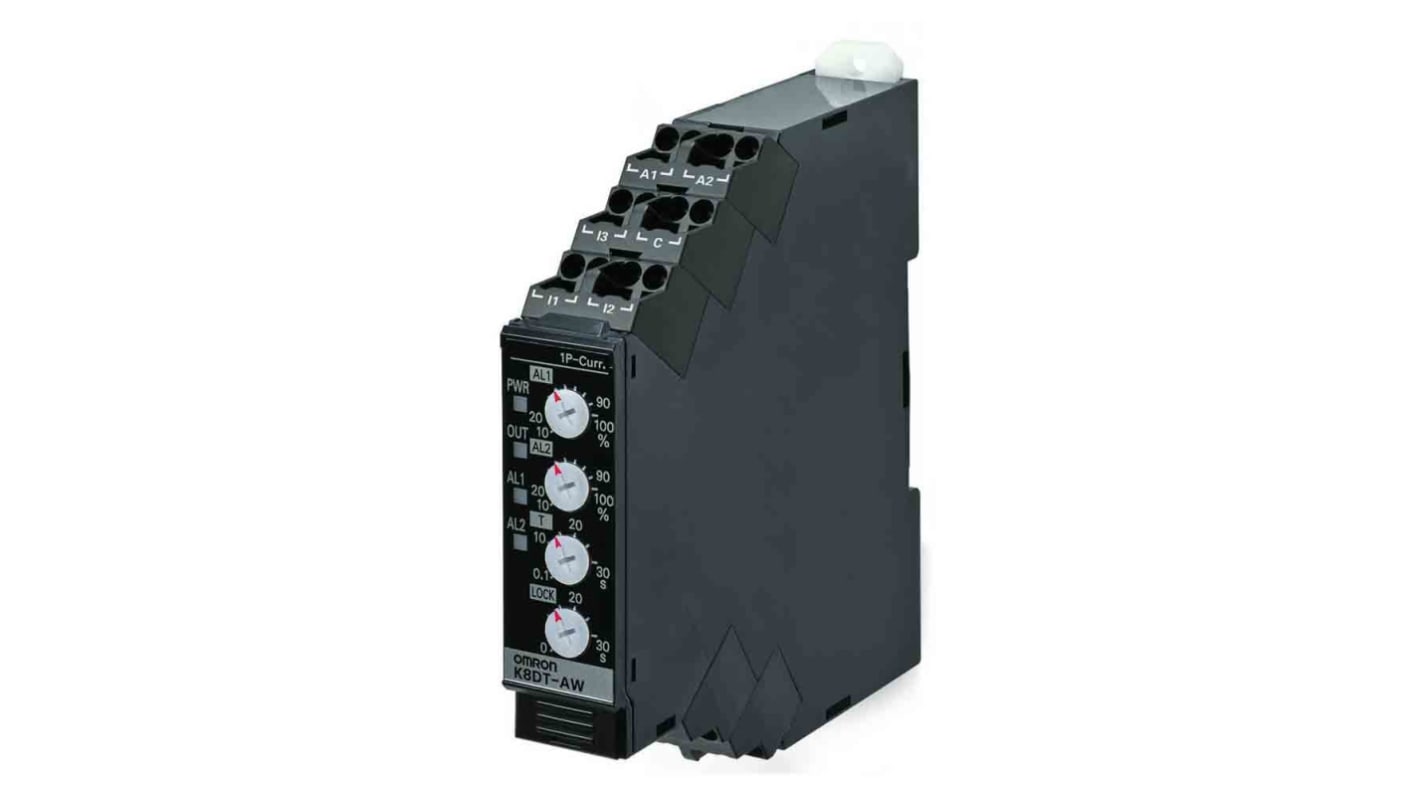

Omron Monitoring Relay, 1 Phase, SPDT, DIN Rail, Screw, 10A to 200A, 24V ac

RS Stock No.:: 215-5516
Mfr. Part No.:: K8DT-AW3CD
Brand:: Omron

Omron Monitoring Relay, 1 Phase, SPDT, DIN Rail, Screw, 10A to 200A, 24V ac

Subtotal (1 unit)*

Kr. 2 118,98

(exc. VAT)

Kr. 2 648,72

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Temporarily out of stock

Shipping from 25 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 2 118,98

*price indicative

RS Stock No.:: 215-5516
Mfr. Part No.:: K8DT-AW3CD
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Monitoring Relay
	Electrical Phase	1
	Contact Configuration	SPDT
	Mount Type	DIN Rail, Screw
	Minimum Current Sensed	10A
	Power Consumption	1.8VA
	Maximum Current Sensed	200A
	Current Sensitivity	Overcurrent, Undercurrent
	Terminal Type	Screw
	Time Delay	0.1 to 30 s
	IP Rating	IP20
	Supply AC Voltage	24V ac
	Relay Contact Current	5A
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Width	17.5mm
	Height	90mm
	Series	K8DT-AW
	Standards/Approvals	CE, CCC, RoHS, IEC, UL
	Length	90mm

	Select all
	Brand Omron
	Product Type Monitoring Relay
	Electrical Phase 1
	Contact Configuration SPDT
	Mount Type DIN Rail, Screw
	Minimum Current Sensed 10A
	Power Consumption 1.8VA
	Maximum Current Sensed 200A
	Current Sensitivity Overcurrent, Undercurrent
	Terminal Type Screw
	Time Delay 0.1 to 30 s
	IP Rating IP20
	Supply AC Voltage 24V ac
	Relay Contact Current 5A
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Width 17.5mm
	Height 90mm
	Series K8DT-AW
	Standards/Approvals CE, CCC, RoHS, IEC, UL
	Length 90mm

Datasheet-K8DT-AW3CD

Omron K8DT-AW Series Monitoring Relay, 200A Maximum Current Sensed, 10A Minimum Current Sensed - K8DT-AW3CD

This monitoring relay is a single-phase device designed to detect and respond to both overcurrent and undercurrent conditions within electrical systems. It operates from a low-voltage supply and is intended for panel and control-cabinet installations where compact, DIN-rail or screw-mounted protection is required. The product is suitable for monitoring current in motors and general industrial equipment across a wide sensing range.

Features and Benefits:

• Senses currents from 10A to 200A for wide coverage • Adjustable response time 0.1-30s to match process dynamics • SPDT contact rated 5A for common control circuits • Accepts 20.4-26.4V AC/DC supply for flexible powering • Push-in terminals reduce wiring time and improve secure connections • Power consumption 1.8VA to minimise supply loading

Applications

• Suitable for motor protection in conveyor systems • Ideal for detecting phase-related current faults in single-phase equipment • Used with control panels requiring Compact DIN-rail modules • Can be used for monitoring pump drive current draw • Used for preventive maintenance current surveillance in factories

What mounting options are available for installation?

It can be fitted on a standard 35mm DIN rail or secured directly using screws for fixed-panel attachment.

How does ambient temperature affect operation limits?

The unit functions across an ambient range of -20°C to 60°C, enabling use in cold storerooms and warm plant environments within those bounds.

What level of environmental protection does the enclosure provide?

The housing meets IP20 protection, providing Basic finger-safe protection suitable for enclosed control cabinets.

What approvals and standards does it comply with?

It carries CE, CCC, RoHS, IEC and UL certifications indicating conformity with relevant international safety and material directives.
