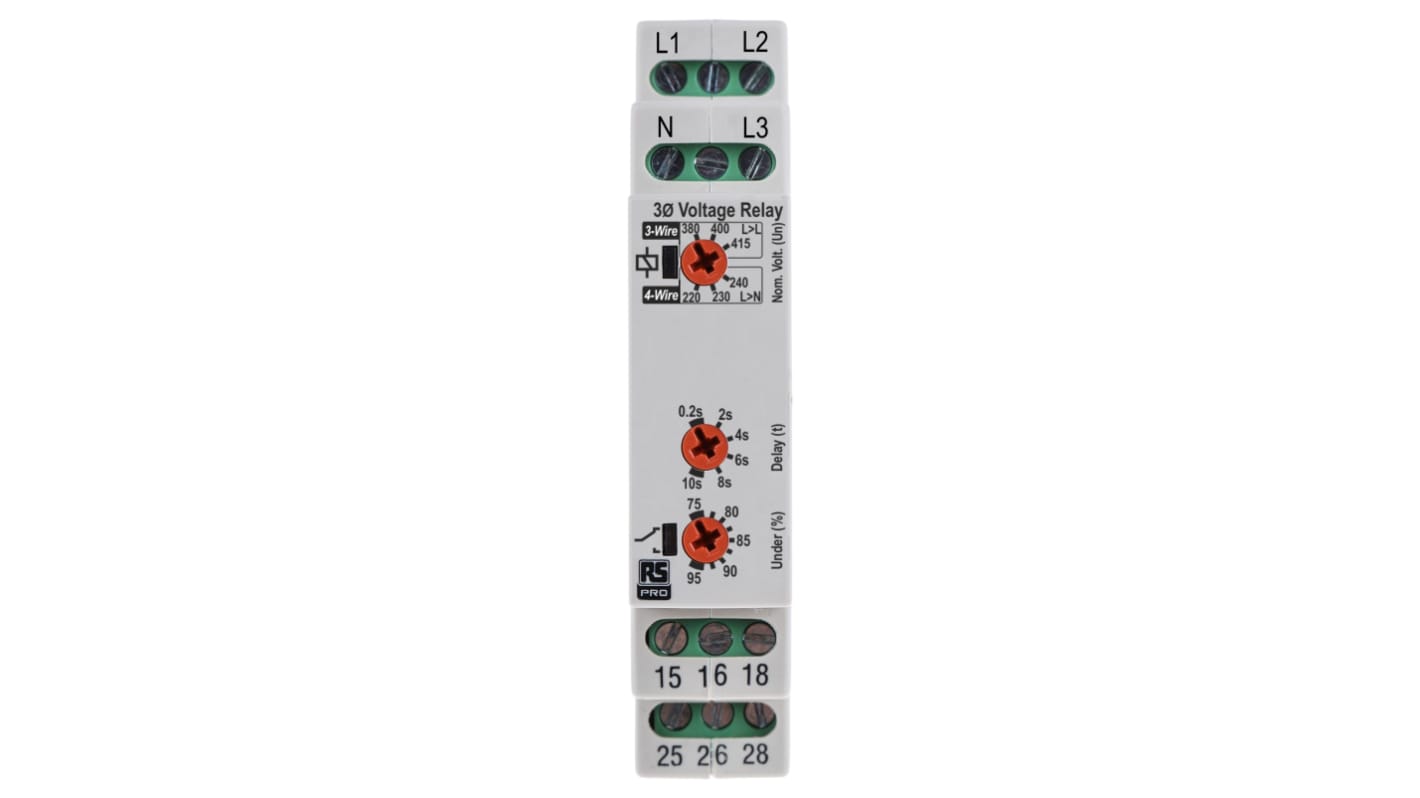

RS PRO Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 243 → 540 V, DIN Rail, Surface Mount

RS Stock No.:: 225-7388
Brand:: RS PRO

RS PRO Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 243 → 540 V, DIN Rail, Surface Mount

Price Each

Kr. 1 295,47

(exc. VAT)

Kr. 1 619,34

(inc. VAT)

45 In stock for same day dispatch*

2 available from Europe for delivery within 1 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Units	Per unit
1 +	Kr. 1 295,47

RS Stock No.:: 225-7388
Brand:: RS PRO

RS PRO Datasheet

RS PRO 3-Phase Failure Sequence & Under-Voltage Relay

The RS PRO 3-Phase voltage monitoring relay is used for connecting to a 3-wire or 4-wire supply. The relay is designed to monitor its own supply and in conjunction with an external contactor, disconnect the supply to the load/equipment in the event of a fault occurring.

How does it work?

For the output relay to energise, all phases (and neutral – if applicable) must be present and measured phase voltages within the set trip levels. The product does not monitor phase rotation/sequence. If any of these conditions are not met, the relay (+ contactor) will de-energise, disconnect the supply and thus protect the equipment.

Features and Benefits

Compact 17.5mm DIN rail housing

Microprocessor based

True R.M.S. monitoring measuring phase to phase (3wire) or phase to neutral (4-wire) voltages

Selectable nominal voltages to suit most popular 3-wire or 4wire supply voltages

Monitors own supply and detects an Under-voltage condition on one or more phases

Detects incorrect phase sequence, phase loss and neutral loss1

Adjustment for Under voltage trip level

Adjustment for Time delay

DPDT relay output 5A

Green LED indication for supply status

Red LED indication for relay status

Electrical Specification

Input: L1, L2, L3, N Supply/monitoring voltage Un: There are 6 nominal voltages to choose from on this product

3-wire monitoring: 380, 400, 415V AC

4-wire monitoring: 220, 230, 240V AC

Frequency range: 48 – 63Hz

Supply variation: 243- 540V AC (L>L)

Overvoltage category: III (IEC 60664)

Rated impulse withstand voltage: 4kV (1.2/50 μS)

Power consumption (max.): 2.5VA

Output: 15, 16, 18 / 25, 26, 28

Relay configuration: DPDT

Output rating: AC1 – 250V 5A, AC15 – 250V 2A, DC1 – 25V 5A

Electrical life: ≥ 150,000 ops at rated load

Dielectric voltage: 2kV AC (rms) IEC 60947-1

Rated impulse withstand voltage: 4kV (1.2/50μS) IEC 60664

Dimensions

Width:17.5 mm x Height: 89 mm x Depth: 66.5 mm

Note

Full specification and setup details can be found on the RS PRO datasheet.

Approvals

Declarations: CE, RoHS, and C-tick compliant

Standards Met EMC: Immunity EN 61000-6-2, Emissions: EN 61000-6-4

Attribute	Value
Monitoring Application	Phase, Voltage
Electrical Phase	3
Contact Configuration	DPDT
Voltage Sensing Range	243 → 540 V
Voltage Sensitivity	Undervoltage
Mounting Type	DIN Rail, Surface Mount
Phase Sensitivity	Phase Failure, Phase Sequence
Time Delay	0.2 → 10s
Length	89mm
Operating Temperature Range	-20 → +60°C
Maximum Operating Temperature	+60°C
Width	17.5mm
Height	66.5mm
Minimum Voltage Sensed	243 V
Maximum Voltage Sensed	540V
Terminal Type	Screw
Special Features	Microprocessor Based, Detects Incorrect Phase Sequence, Phase Loss And Neutral Loss, Adjustment For Under Voltage Trip Level, Adjustment For Time Delay
Dimensions	89 x 17.5 x 66.5mm
Minimum Operating Temperature	-20°C
