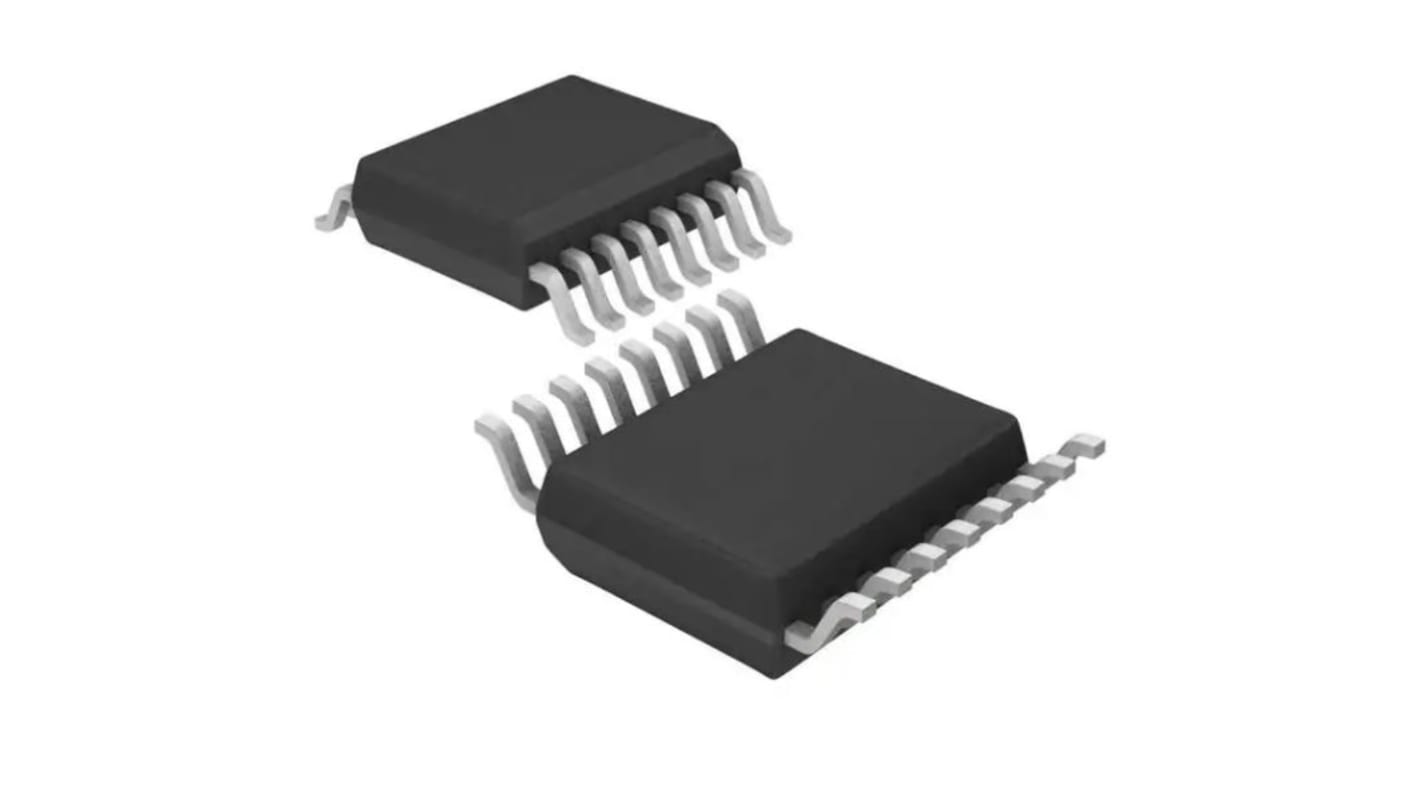

ams OSRAM Surface Position Sensor 3.3 V 5 V, SSOP-16, 16-Pin

View all Motion Sensor ICs
Bulk discount available

Subtotal (1 pack of 2 units)*

Kr.121 61

(exc. VAT)

Kr.152 012

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1 838 unit(s), ready to ship
Units
Per unit
Per Pack*
2 - 48Kr. 60,805Kr. 121,61
50 - 98Kr. 53,77Kr. 107,54
100 - 248Kr. 49,88Kr. 99,76
250 - 998Kr. 47,36Kr. 94,72
1000 +Kr. 44,73Kr. 89,46

*price indicative

Packaging Options:
RS Stock No.:
210-2985
Mfr. Part No.:
AS5115-HSST
Brand:
ams OSRAM
Find similar products by selecting one or more attributes.
Select all

Brand

ams OSRAM

Sensor Type

Magnetic Rotary Encoder

Product Type

Position Sensor

Technology

Analogue

Mount Type

Surface

Minimum Supply Voltage

3.3V

Maximum Supply Voltage

5V

Package Type

SSOP-16

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

150°C

Pin Count

16

Standards/Approvals

No

Width

8.2 mm

Series

AS5115

Height

1.99mm

Length

6.5mm

Automotive Standard

AEC-Q100

Supply Current

100mA

COO (Country of Origin):
AT
The AMS AG contactless rotary encoder sensor for accurate angular measurement over a full turn of 360° and over an extended ambient temperature range of -40°C to 150°C.

Surface mounting style

External Magnet actuator type

Buffered sine and cosine output signals
