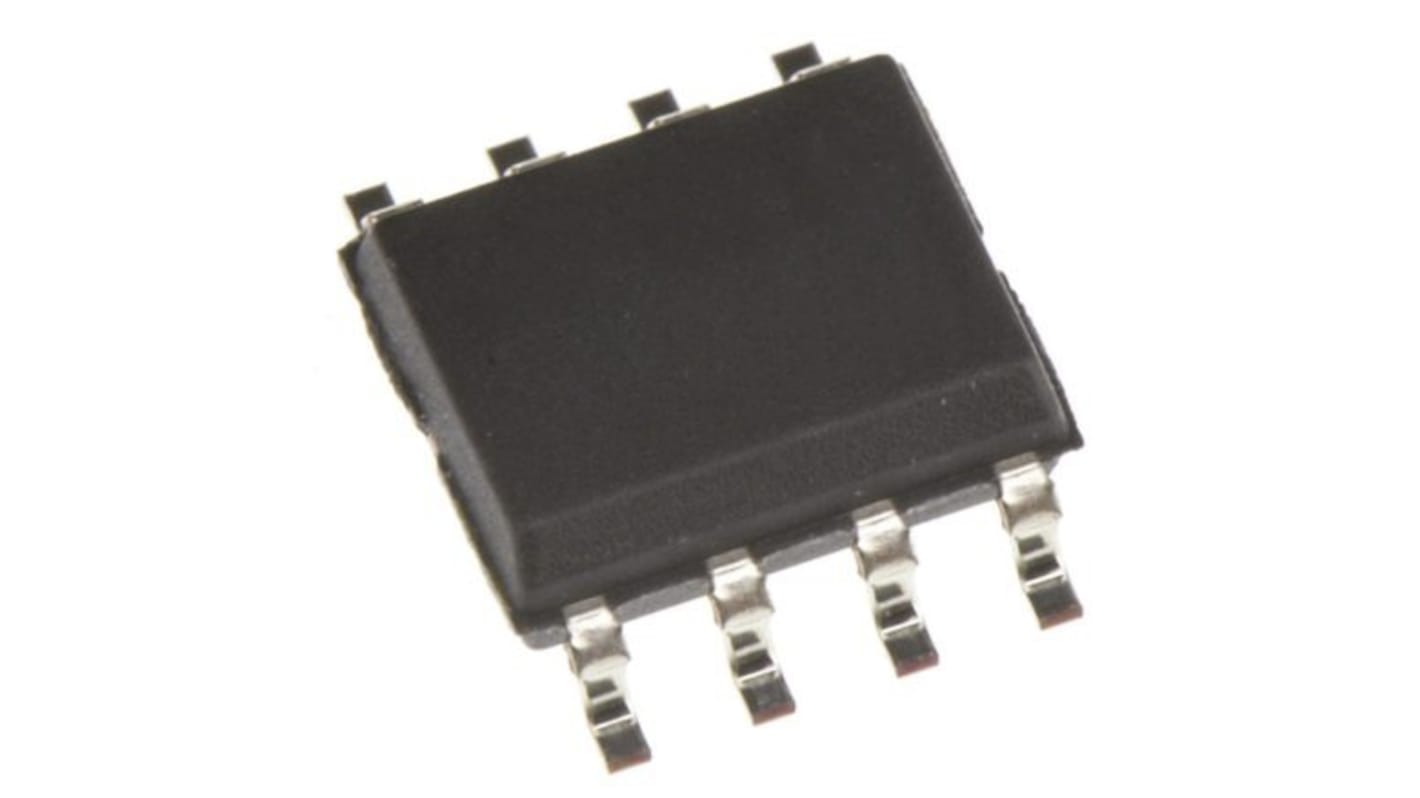

Melexis 3-Axis Surface Position Sensor 4.5 V 5.5 V, SPI, SOIC, 8-Pin
- RS Stock No.:
- 237-7650
- Mfr. Part No.:
- MLX90316KDC-BDG-100-RE
- Brand:
- Melexis
Bulk discount available
Subtotal (1 unit)*
Kr.46 68
(exc. VAT)
Kr.58 35
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 153 unit(s) shipping from 20. januar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | Kr. 46,68 |
| 10 - 99 | Kr. 42,10 |
| 100 - 499 | Kr. 39,24 |
| 500 - 999 | Kr. 38,32 |
| 1000 + | Kr. 37,29 |
*price indicative
- RS Stock No.:
- 237-7650
- Mfr. Part No.:
- MLX90316KDC-BDG-100-RE
- Brand:
- Melexis
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Melexis | |
| Sensor Type | Position Sensor | |
| Product Type | Position Sensor | |
| Number of Axis | 3 | |
| Technology | Hall Effect | |
| Mount Type | Surface | |
| Magnetic Type | Monolithic | |
| Interface Type | SPI | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Package Type | SOIC | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 8 | |
| Maximum Operating Temperature | 125°C | |
| Length | 4.8mm | |
| Height | 1.52mm | |
| Series | MLX90316 | |
| Standards/Approvals | RoHS | |
| Width | 3.81 mm | |
| Automotive Standard | No | |
| Response Time | 400μs | |
| Supply Current | 13.5mA | |
| Select all | ||
|---|---|---|
Brand Melexis | ||
Sensor Type Position Sensor | ||
Product Type Position Sensor | ||
Number of Axis 3 | ||
Technology Hall Effect | ||
Mount Type Surface | ||
Magnetic Type Monolithic | ||
Interface Type SPI | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Package Type SOIC | ||
Minimum Operating Temperature -40°C | ||
Pin Count 8 | ||
Maximum Operating Temperature 125°C | ||
Length 4.8mm | ||
Height 1.52mm | ||
Series MLX90316 | ||
Standards/Approvals RoHS | ||
Width 3.81 mm | ||
Automotive Standard No | ||
Response Time 400μs | ||
Supply Current 13.5mA | ||
- COO (Country of Origin):
- MY
The Melexis position sensor IC providing the absolute angular position of a small dipole magnet rotating above the device surface. This monolithic device senses, in a contactless fashion, the horizontal component of the applied magnetic flux density. This unique sensing principle applied to a rotary position sensor results into an impressive robustness of the angular position over the mechanical (air gap, off-axis) tolerances. The output transfer characteristic is fully programmable to match any specific requirement through end-of-line calibration. The Melexis programming unit PTC-04 communicates and calibrates the device exclusively through the connector terminals.
Absolute rotary position sensor IC
Simple & robust magnetic design
Programmable angular range up to 360 degrees
Programmable linear transfer characteristic
Selectable analog (ratio metric), PWM, serial protocol
10 bit angular thermal accuracy
40 bit ID number
Single die – SOIC-8 package RoHS compliant
