Schneider Electric TeSys Motor Starter, Star Delta, 690V, 147 kW, 3 Phase
- RS Stock No.:
- 346-619
- Mfr. Part No.:
- LC3D150P7A64
- Brand:
- Schneider Electric
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 346-619
- Mfr. Part No.:
- LC3D150P7A64
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Motor Starter | |
| Power Rating | 147kW | |
| Sub Type | Star Delta | |
| Number of Phases | 3 | |
| Current Rating | 150A | |
| Number of Poles | 3 | |
| Overall Length | 555mm | |
| Maximum Voltage | 690V | |
| Standards/Approvals | UL 508, RoHS, REACH, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA | |
| Hazardous Area Certification | NO | |
| Overall Width | 450mm | |
| Series | TeSys | |
| Overall Depth | 205mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Motor Starter | ||
Power Rating 147kW | ||
Sub Type Star Delta | ||
Number of Phases 3 | ||
Current Rating 150A | ||
Number of Poles 3 | ||
Overall Length 555mm | ||
Maximum Voltage 690V | ||
Standards/Approvals UL 508, RoHS, REACH, IEC 60947-5-1, IEC 60947-4-1, EN 60947-5-1, EN 60947-4-1, CSA | ||
Hazardous Area Certification NO | ||
Overall Width 450mm | ||
Series TeSys | ||
Overall Depth 205mm | ||
- COO (Country of Origin):
- FR

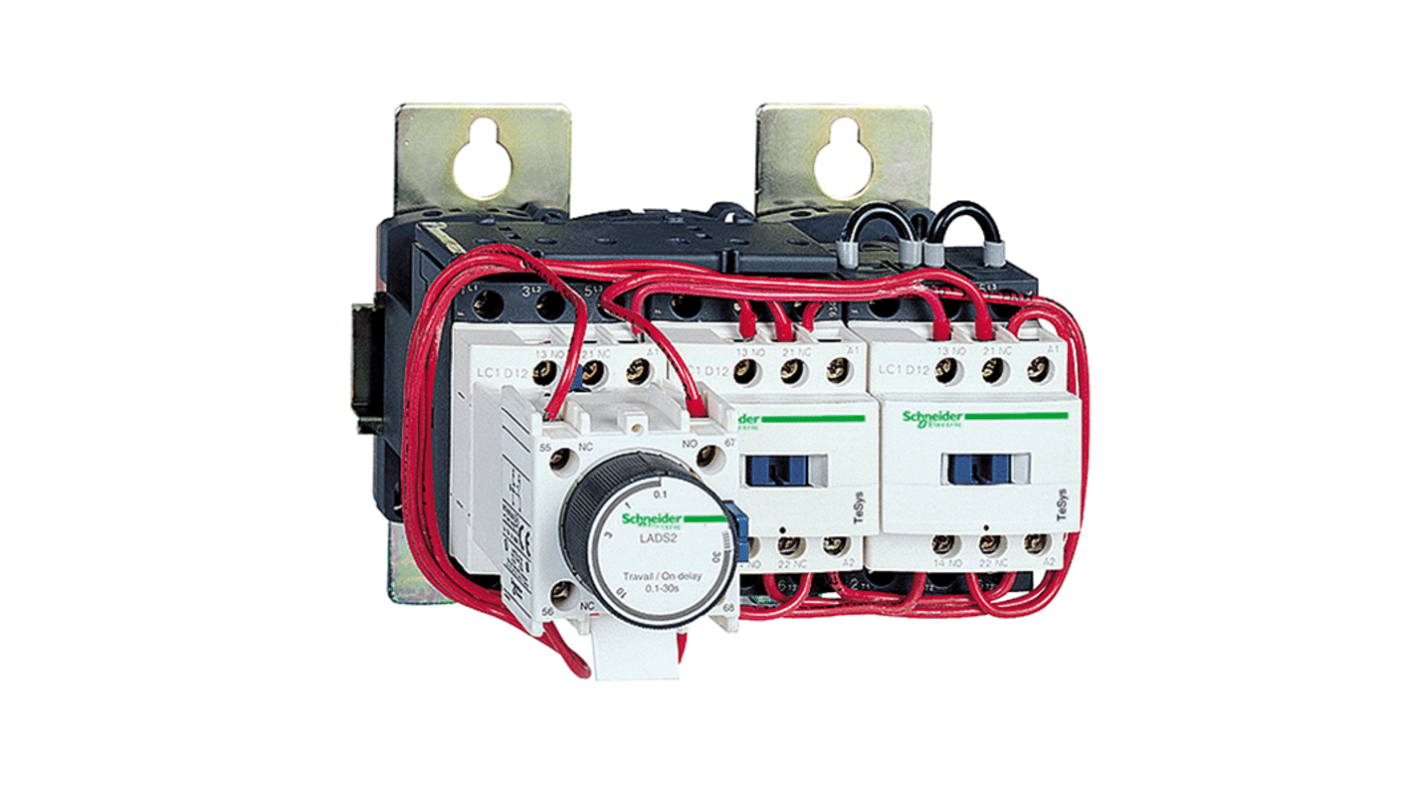

The Schneider Electric LC3D star delta starter is a pre wired motor control solution designed for AC-3 applications, featuring a 3 x 3P pole configuration with 3 NO power pole contacts. It supports rated operational voltages up to 690 V AC at 25 to 400 Hz. Suitable for motors up to 147 kW at 440 V AC, it operates with a 230 V AC control circuit at 50 or 60 Hz. The device complies with IEC 60947, UL 508, and CSA C22.2 No 14 standards, ensuring durability with an electrical lifespan of 0.85 million cycles.
RoHS and REACH compliant
Toxic heavy metal free
Mercury free
Sustainable packaging
