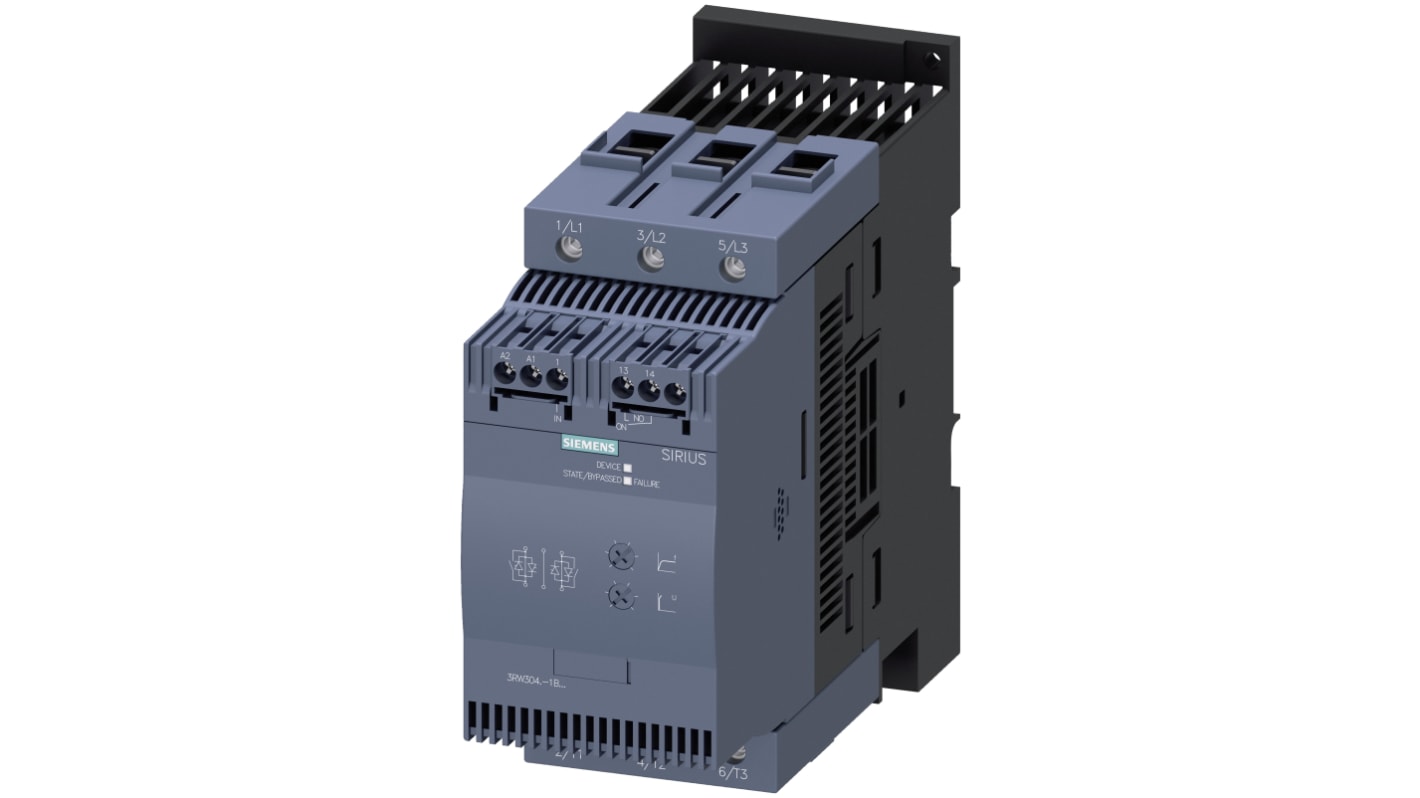

Siemens 3RW30 Soft Starter 400V ac, 55 kW, 3 Phase, IP20

View all Motor Starters

Subtotal (1 unit)*

Kr. 12 825,84

(exc. VAT)

Kr. 16 032,30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 12 825,84

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
746-4937
Mfr. Part No.:
3RW3047-1BB04
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Power Rating

55kW

Product Type

Soft Starter

Number of Phases

3

Mount Type

Screw, Snap-On

IP Rating

IP20

Maximum Supply Voltage

400V ac

Overall Length

186mm

Overall Width

70mm

Standards/Approvals

CSA, UL, EAC, RCM, CE

Better World Claim

Concentrated or Compact Solution, Saves Energy

Series

3RW30

Overall Depth

160mm

Better World Product

Yes

Miniature Soft Starter


Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.

Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).

The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-type terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-type terminals.

Simple, efficient and always up to date - SIRIUS modular system.

Features and Benefits


  • Compact design - width of 22.5mm

  • One device for entire control voltage range, from UC 24V to 230V

  • Optimal adjustment capability using only 3 potentiometers, start time, starting voltage & stopping time, all of which can be set individually

  • Operating status display (Ready/Run) via two LED's

    • Note


    Connection System - Screw Terminal: 1CB54; Cable Clamp: 2CB54
