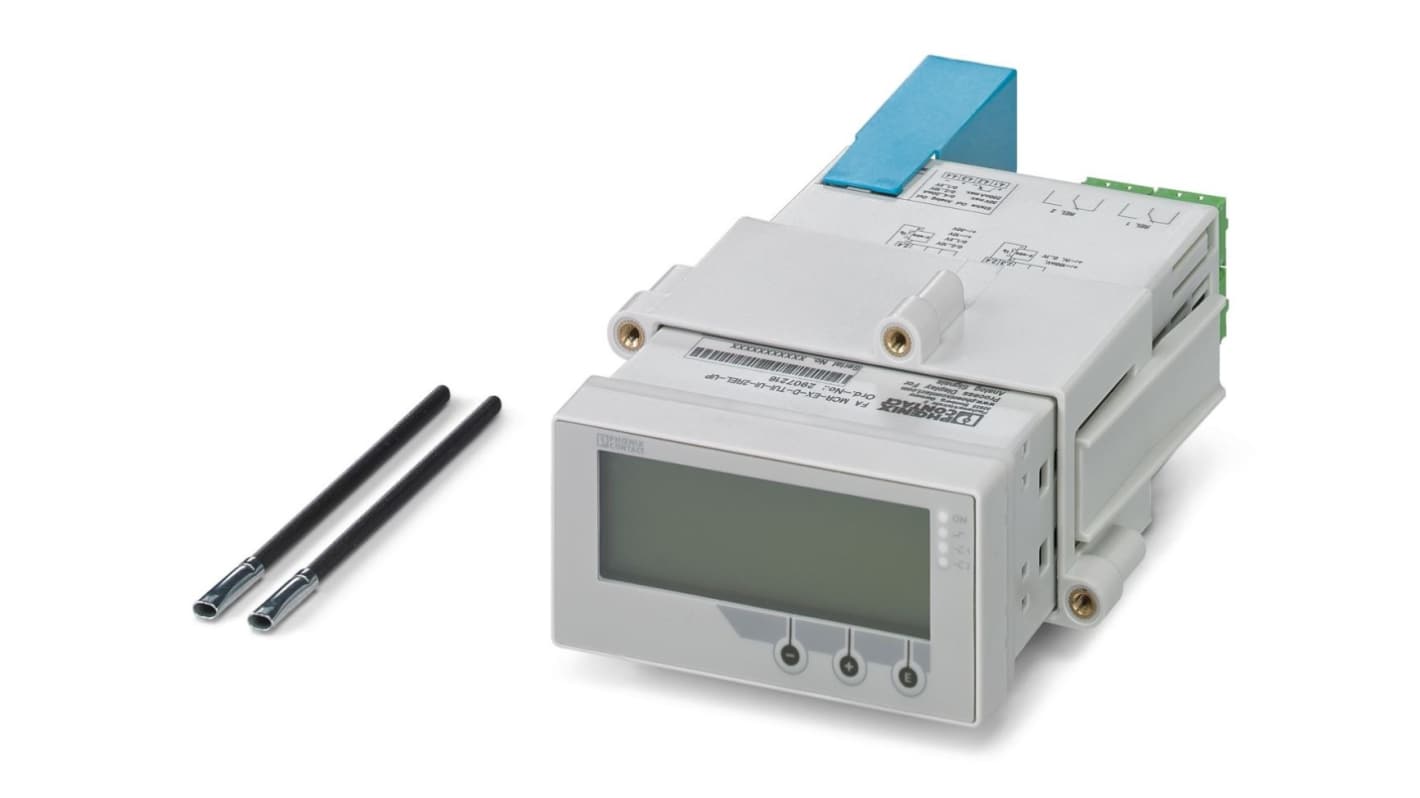

Phoenix Contact MCR-EX-D-TUI-UI-2REL-UP LCD Digital Panel Multifunction Meter for Resistance, Voltage, Temperature,
- RS Stock No.:
- 131-885
- Mfr. Part No.:
- 2907216
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
Kr. 9 041,38
(exc. VAT)
Kr. 11 301,72
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Stocked by manufacturer
- Ready to ship from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 9 041,38 |
*price indicative
- RS Stock No.:
- 131-885
- Mfr. Part No.:
- 2907216
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Properties Measured | Resistance, Voltage, Temperature, Current | |
| Product Type | Digital Panel Multifunction Meter | |
| Display Type | LCD | |
| Cutout Height | 48mm | |
| Number of Digits | 5 | |
| Depth | 175mm | |
| Cutout Width | 96mm | |
| Minimum Operating Temperature | -20°C | |
| Standards/Approvals | UKCA Ex (UKEX) CML 21UKEX2995, ATEX II (1) G (Ex ia Ga) IIC, FM AIS, NI/I/2/ABCDEFG/T4, II (1) D (Ex ia Da) IIIC, CSA AIS, PTB 15 ATEX 2011, DNV GL TAA000029G, UL 61010 Recognised, CE | |
| Series | MCR-EX-D-TUI-UI-2REL-UP | |
| Maximum Measurement | 2495 °C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Properties Measured Resistance, Voltage, Temperature, Current | ||
Product Type Digital Panel Multifunction Meter | ||
Display Type LCD | ||
Cutout Height 48mm | ||
Number of Digits 5 | ||
Depth 175mm | ||
Cutout Width 96mm | ||
Minimum Operating Temperature -20°C | ||
Standards/Approvals UKCA Ex (UKEX) CML 21UKEX2995, ATEX II (1) G (Ex ia Ga) IIC, FM AIS, NI/I/2/ABCDEFG/T4, II (1) D (Ex ia Da) IIIC, CSA AIS, PTB 15 ATEX 2011, DNV GL TAA000029G, UL 61010 Recognised, CE | ||
Series MCR-EX-D-TUI-UI-2REL-UP | ||
Maximum Measurement 2495 °C | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Digital display is a multifunctional Ex i process indicator which is designed for monitoring, displaying, and transmitting analogue measurement data from the Ex area to the safe area. It features universal inputs that allow the connection of current, voltage, backlight, and dot matrix for text/bar graph, it provides clear and easy to read information.
Universal inputs for connection of current voltage RTDs and TCs
5 digit 7 segment LC display with backlight for clear visibility
Approvals including CE ATEX UKCA Ex UL FM CSA
