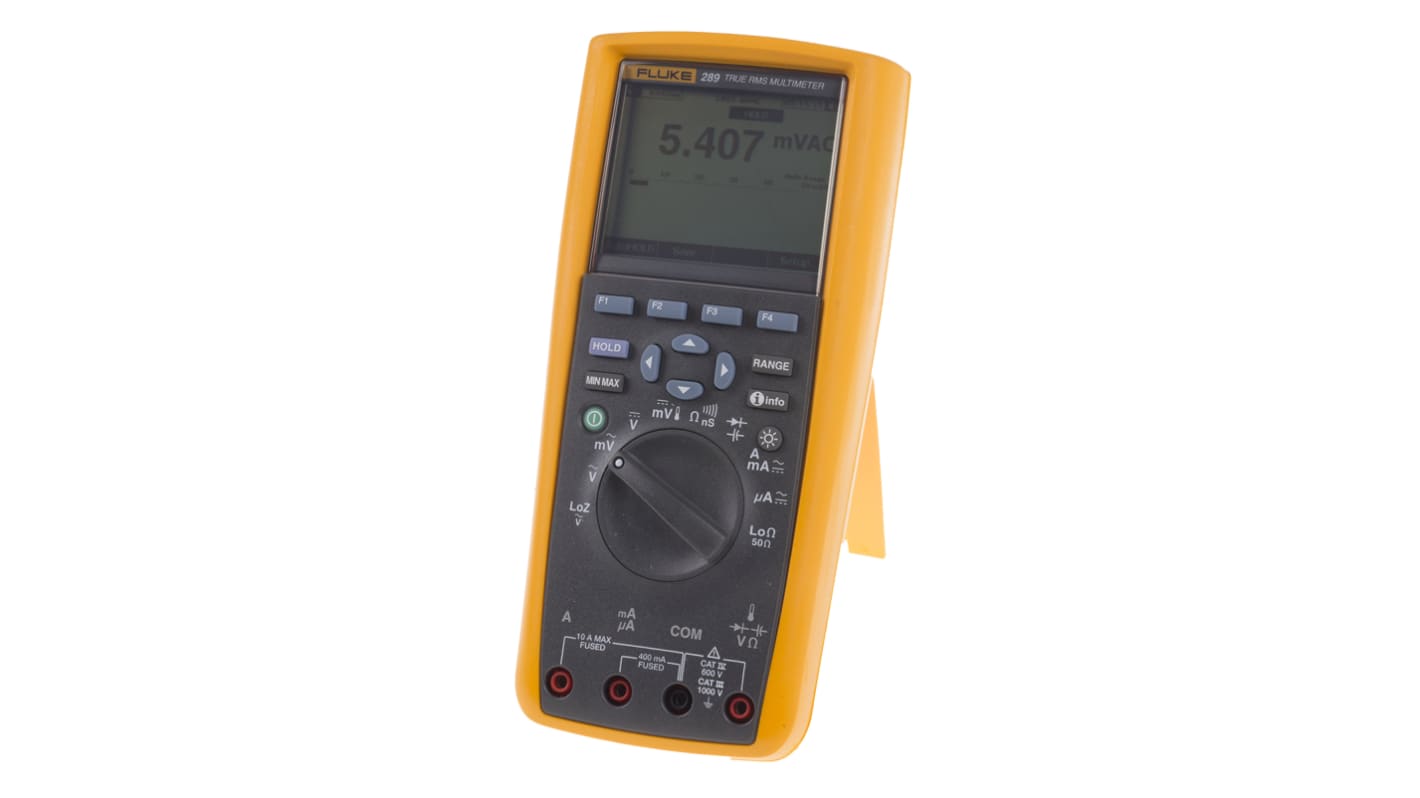

Fluke 289 Handheld Multimeter True RMS, 10 A, 10 A, 1000 V, RSCAL Calibrated

RS Stock No.:: 218-371
Mfr. Part No.:: 3947801
Brand:: Fluke

Fluke 289 Handheld Multimeter True RMS, 10 A, 10 A, 1000 V, RSCAL Calibrated

Subtotal (1 unit)*

Kr. 11 097,40

(exc. VAT)

Kr. 13 871,75

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

Plus 13 unit(s) shipping from 28 September 2026
Plus 16 unit(s) shipping from 01 October 2026
Plus 23 unit(s) shipping from 15 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 11 097,40

*price indicative

RS Stock No.:: 218-371
Mfr. Part No.:: 3947801
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Multimeter
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number	289
	Resistance Resolution	50Ω
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Resistance, Temperature
	Maximum DC Current Measurement	10A
	Maximum Resistance Measurement	0.5GΩ
	Maximum AC Voltage Measurement	1000V
	Maximum DC Voltage Measurement	1kV dc
	Maximum AC Current Measurement	10A
	True RMS	Yes
	DC Current Accuracy	±0.15% + 2 Digits
	DC Voltage Accuracy	0.025 %
	AC Voltage Accuracy	± 0.4 %
	AC Current Accuracy	± 0.6 %
	DC Current Resolution	0.01μA dc
	AC Voltage Resolution	1μV ac
	AC Current Resolution	0.01μA ac
	DC Voltage Resolution	1 μV dc
	Maximum Frequency	999.99kHz
	Power Source	Battery
	Minimum Operating Temperature	-20°C
	Resistance Measurement Accuracy	±0.05 % rdg + 2 Digits
	Maximum Operating Temperature	55°C
	Battery Life	50h
	Width	102mm
	Standards/Approvals	No
	Weight	870.9g
	Length	60mm
	Height	222mm
	Safety Category Level	CAT III, CAT IV
	Battery Type	AA x 6
	Calibrated	RSCAL
	Safety Category Voltage	1000V

	Select all
	Brand Fluke
	Product Type Multimeter
	Multimeter Type Handheld
	Display Type Digital
	Model Number 289
	Resistance Resolution 50Ω
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Resistance, Temperature
	Maximum DC Current Measurement 10A
	Maximum Resistance Measurement 0.5GΩ
	Maximum AC Voltage Measurement 1000V
	Maximum DC Voltage Measurement 1kV dc
	Maximum AC Current Measurement 10A
	True RMS Yes
	DC Current Accuracy ±0.15% + 2 Digits
	DC Voltage Accuracy 0.025 %
	AC Voltage Accuracy ± 0.4 %
	AC Current Accuracy ± 0.6 %
	DC Current Resolution 0.01μA dc
	AC Voltage Resolution 1μV ac
	AC Current Resolution 0.01μA ac
	DC Voltage Resolution 1 μV dc
	Maximum Frequency 999.99kHz
	Power Source Battery
	Minimum Operating Temperature -20°C
	Resistance Measurement Accuracy ±0.05 % rdg + 2 Digits
	Maximum Operating Temperature 55°C
	Battery Life 50h
	Width 102mm
	Standards/Approvals No
	Weight 870.9g
	Length 60mm
	Height 222mm
	Safety Category Level CAT III, CAT IV
	Battery Type AA x 6
	Calibrated RSCAL
	Safety Category Voltage 1000V

RoHS Status: Exempted

COO (Country of Origin):: US

Fluke Multimeter, 1000V Safety Category Voltage, 10A Maximum AC Current Measurement - 3947801

This multimeter is a handheld digital instrument designed to measure electrical parameters across industrial and field environments, providing true RMS readings for accurate AC measurements and supporting a wide range of functions including voltage, current, resistance, capacitance, continuity and temperature. It operates from AA batteries and incorporates a high safety rating suitable for low- and high-energy systems when working up to 1000V.

Features and Benefits:

• True RMS measurement ensures accurate AC readings up to 1000V CAT IV
• 0.025% DC voltage accuracy delivers high-precision voltage assessment
• 0.01μA current resolution enables detection of very small currents
• 0.05% resistance accuracy measures up to 0.5GΩ for insulation checks
• 10A maximum current handling supports AC and DC circuit testing
• 200h battery life from AA cells reduces service interruptions

Applications

• Suitable for troubleshooting industrial mains and distribution panels
• Ideal for testing DC supply rails and precision voltage sources
• Used for frequency analysis up to 999.99kHz in signal diagnostics
• Can be used for capacitance and temperature checks on components
• Used with power electronics requiring CAT III and CAT IV safety

What maximum voltage can it safely measure?

It is rated for measurements up to 1000V in both DC and AC modes.

How does the instrument handle high-frequency signals?

It measures frequency up to 999.99kHz, allowing inspection of switching and signal circuits.

What are the battery requirements and expected runtime?

It uses six AA cells and provides approximately 200 h of operational life under typical conditions.

What resolution and accuracy are available for low-current measurements?

It offers 0.01μA resolution for both AC and DC current and DC current accuracy of ±0.05%.

What resistance measurement range does it support?

It measures resistance up to 0.5GΩ with a stated accuracy of ±0.05% of reading Plus 2 digits.

Supplied with

The Fluke 289 comes with:
Manual
6 x AA Batteries
Installed TL71 Silicone Test Leads
Probe Holder
2 x AC72 Alligator Clips
