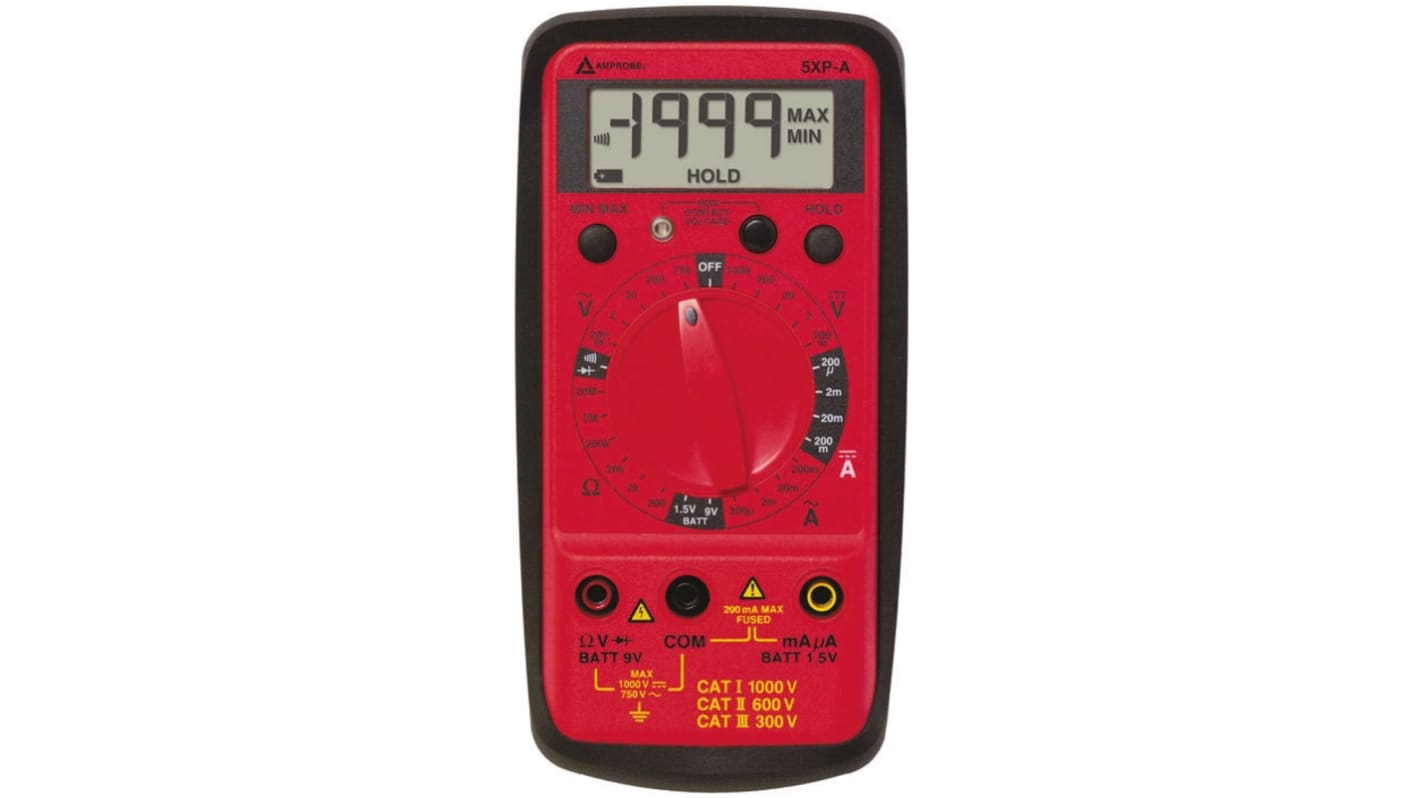

Amprobe 5XPA Handheld Digital Multimeter, 200mA ac Max, 200mA dc Max, 600V ac Max - RS Calibrated
- RS Stock No.:
- 791-4789
- Mfr. Part No.:
- 5XP-A
- Brand:
- Amprobe
- RS Stock No.:
- 791-4789
- Mfr. Part No.:
- 5XP-A
- Brand:
- Amprobe
Select all | Attribute | Value |
|---|---|---|
| Brand | Amprobe | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Model Number p | 5XPA | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Battery Test, Continuity, DC Current, DC Voltage, Diode, Resistance | |
| Absolute Maximum DC Current Measurement | 200mA dc | |
| Absolute Maximum DC Voltage Measurement | 600V dc | |
| Absolute Maximum AC Voltage Measurement | 600V ac | |
| Absolute Maximum AC Current Measurement | 200mA ac | |
| Absolute Maximum Resistance Measurement | 20MΩ | |
| True RMS | No | |
| Maximum Frequency | 500Hz | |
| AC Current Measurement Resolution | 0.1µA ac | |
| DC Current Measurement Resolution | 0.1µA dc | |
| DC Voltage Measurement Resolution | 100µV dc | |
| AC Voltage Measurement Resolution | 100µV ac | |
| Resistance Measurement Resolution | 100mΩ | |
| Safety Category Level | CAT II, CAT III | |
| Best AC Voltage Accuracy | ±1.5% + 5 Digits | |
| Dimensions | 32 x 72 x 155mm | |
| Minimum Operating Temperature | 0°C | |
| Best DC Voltage Accuracy | ±1% + 1 Digit | |
| Weight | 210g | |
| Length | 32mm | |
| Best AC Current Accuracy | ±2.5% + 5 Digits | |
| Width | 72mm | |
| Best Resistance Measurement Accuracy | ±2% + 5 Digits | |
| Safety Category Voltage | 300 V, 600V | |
| Battery Type | 9V | |
| Maximum Operating Temperature | +50°C | |
| Best DC Current Accuracy | ±1.5% + 1 Digit | |
| Height | 155mm | |
Select all | ||
|---|---|---|
Brand Amprobe | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Model Number p 5XPA | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, Battery Test, Continuity, DC Current, DC Voltage, Diode, Resistance | ||
Absolute Maximum DC Current Measurement 200mA dc | ||
Absolute Maximum DC Voltage Measurement 600V dc | ||
Absolute Maximum AC Voltage Measurement 600V ac | ||
Absolute Maximum AC Current Measurement 200mA ac | ||
Absolute Maximum Resistance Measurement 20MΩ | ||
True RMS No | ||
Maximum Frequency 500Hz | ||
AC Current Measurement Resolution 0.1µA ac | ||
DC Current Measurement Resolution 0.1µA dc | ||
DC Voltage Measurement Resolution 100µV dc | ||
AC Voltage Measurement Resolution 100µV ac | ||
Resistance Measurement Resolution 100mΩ | ||
Safety Category Level CAT II, CAT III | ||
Best AC Voltage Accuracy ±1.5% + 5 Digits | ||
Dimensions 32 x 72 x 155mm | ||
Minimum Operating Temperature 0°C | ||
Best DC Voltage Accuracy ±1% + 1 Digit | ||
Weight 210g | ||
Length 32mm | ||
Best AC Current Accuracy ±2.5% + 5 Digits | ||
Width 72mm | ||
Best Resistance Measurement Accuracy ±2% + 5 Digits | ||
Safety Category Voltage 300 V, 600V | ||
Battery Type 9V | ||
Maximum Operating Temperature +50°C | ||
Best DC Current Accuracy ±1.5% + 1 Digit | ||
Height 155mm | ||
