Rohde & Schwarz RTC1002 RTC1000 Series, 70MHz Bench Oscilloscope, 2 Analogue Channels
- RS Stock No.:
- 174-2810
- Distrelec Article No.:
- 301-01-691
- Mfr. Part No.:
- RTC1K-72
- Brand:
- Rohde & Schwarz
Subtotal (1 unit)*
Kr.13 041 60
(exc. VAT)
Kr.16 302 00
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 26. februar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 13 041,60 |
*price indicative
- RS Stock No.:
- 174-2810
- Distrelec Article No.:
- 301-01-691
- Mfr. Part No.:
- RTC1K-72
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Bandwidth | 70MHz | |
| Number of Analogue Channels | 2 | |
| Oscilloscope Type | Bench | |
| Interface | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | |
| Sample Rate Random | 2 Gsps | |
| Screen Size | 6.5in | |
| Series | RTC1000 | |
| Minimum Time Base | 1ns/div | |
| Rise Time | 5ns | |
| Vertical Resolution | 8 bit, 16 bit | |
| Display Type | VGA Colour | |
| Dimensions | 285 x 140 x 175mm | |
| Plug Type | Type A - North American/Japanese 2-blade, Type B - North American 3-pin | |
| Weight | 1.7kg | |
| Minimum Vertical Sensitivity | 1mV/div | |
| Digital/Analogue | Digital | |
| Maximum Time Base | 100s/div | |
| Maximum Vertical Sensitivity | 10V/div | |
| Power Source | Mains | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Bandwidth 70MHz | ||
Number of Analogue Channels 2 | ||
Oscilloscope Type Bench | ||
Interface CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | ||
Sample Rate Random 2 Gsps | ||
Screen Size 6.5in | ||
Series RTC1000 | ||
Minimum Time Base 1ns/div | ||
Rise Time 5ns | ||
Vertical Resolution 8 bit, 16 bit | ||
Display Type VGA Colour | ||
Dimensions 285 x 140 x 175mm | ||
Plug Type Type A - North American/Japanese 2-blade, Type B - North American 3-pin | ||
Weight 1.7kg | ||
Minimum Vertical Sensitivity 1mV/div | ||
Digital/Analogue Digital | ||
Maximum Time Base 100s/div | ||
Maximum Vertical Sensitivity 10V/div | ||
Power Source Mains | ||
- COO (Country of Origin):
- CZ

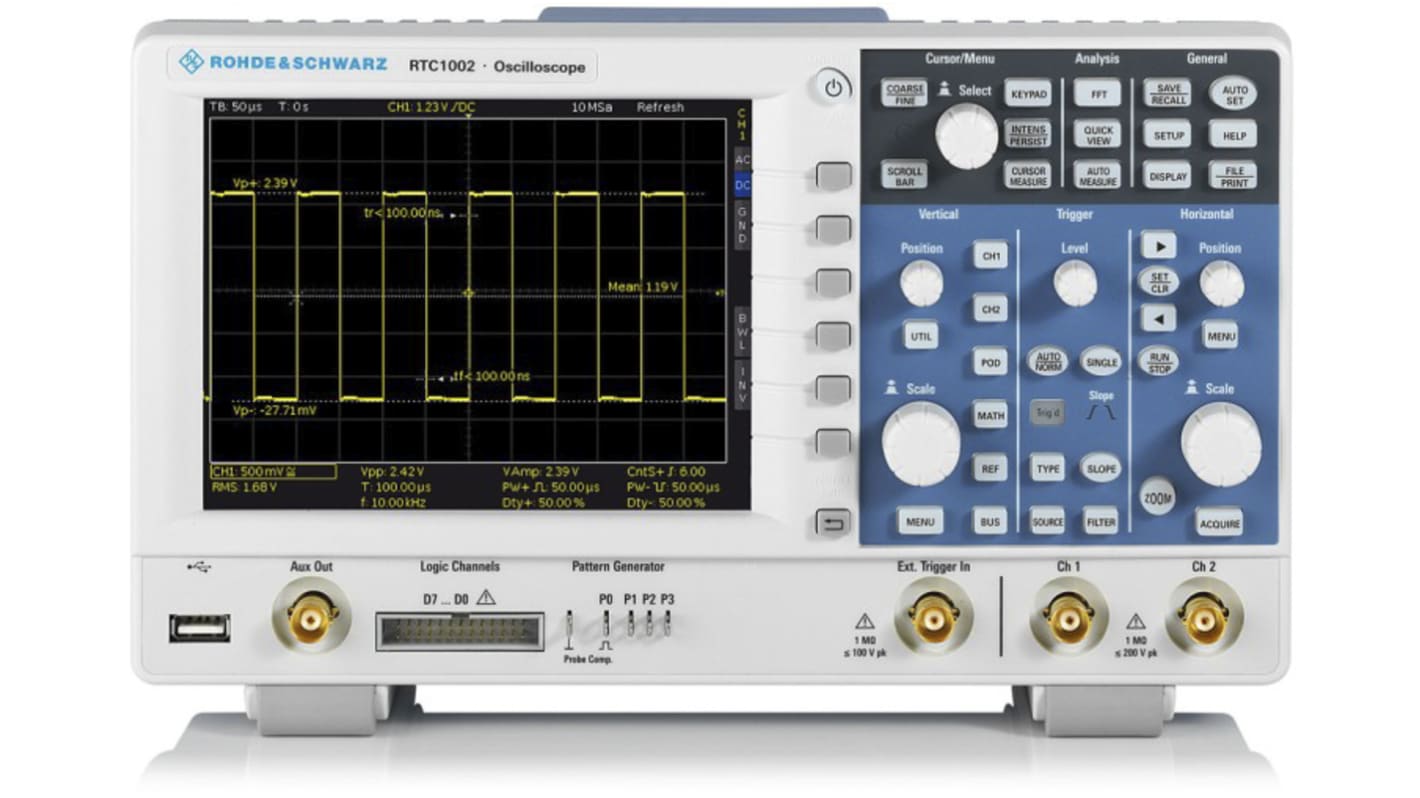

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope
The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 70MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It has two channels (MSO) that are optional and adaptable. It allows you to perform voltage measurements on analogue channels with two values simultaneously. This oscilloscope benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.
Features and Benefits
• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis
• Fanless design for better performance
• Low noise due to 8 bit analogue to digital converters
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Optional logical analyser
• Fanless design for better performance
• Low noise due to 8 bit analogue to digital converters
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Optional logical analyser
Applications
• Educational institutes
• Used by service technicians
• R&D troubleshooting
• Production testing
• Used by service technicians
• R&D troubleshooting
• Production testing
