Rohde & Schwarz RTC1000 Series, 300 MHz Bench Oscilloscope 2-Channel - UKAS
- RS Stock No.:
- 179-6200
- Mfr. Part No.:
- RTC1K-302
- Brand:
- Rohde & Schwarz
Subtotal (1 unit)*
Kr. 26 810,00
(exc. VAT)
Kr. 33 512,50
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- Plus 1 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 26 810,00 |
*price indicative
- RS Stock No.:
- 179-6200
- Mfr. Part No.:
- RTC1K-302
- Brand:
- Rohde & Schwarz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Product Type | Oscilloscope | |
| Bandwidth | 300MHz | |
| Number of Channels | 2 | |
| Oscilloscope Type | Bench | |
| Interface Type | CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | |
| Series | RTC1000 | |
| Standards/Approvals | No | |
| Height | 175mm | |
| Width | 280 mm | |
| Vertical Resolution | 8 bit, 16 bit | |
| Maximum Vertical Sensitivity | 10V/div | |
| Minimum Vertical Sensitivity | 1mV/div | |
| Maximum Time Base | 100s/div | |
| Minimum Time Base | 1ns/div | |
| Rise Time | 1.15ns | |
| Power Source | Mains | |
| Calibrated | UKAS | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Product Type Oscilloscope | ||
Bandwidth 300MHz | ||
Number of Channels 2 | ||
Oscilloscope Type Bench | ||
Interface Type CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB | ||
Series RTC1000 | ||
Standards/Approvals No | ||
Height 175mm | ||
Width 280 mm | ||
Vertical Resolution 8 bit, 16 bit | ||
Maximum Vertical Sensitivity 10V/div | ||
Minimum Vertical Sensitivity 1mV/div | ||
Maximum Time Base 100s/div | ||
Minimum Time Base 1ns/div | ||
Rise Time 1.15ns | ||
Power Source Mains | ||
Calibrated UKAS | ||
- COO (Country of Origin):
- CZ

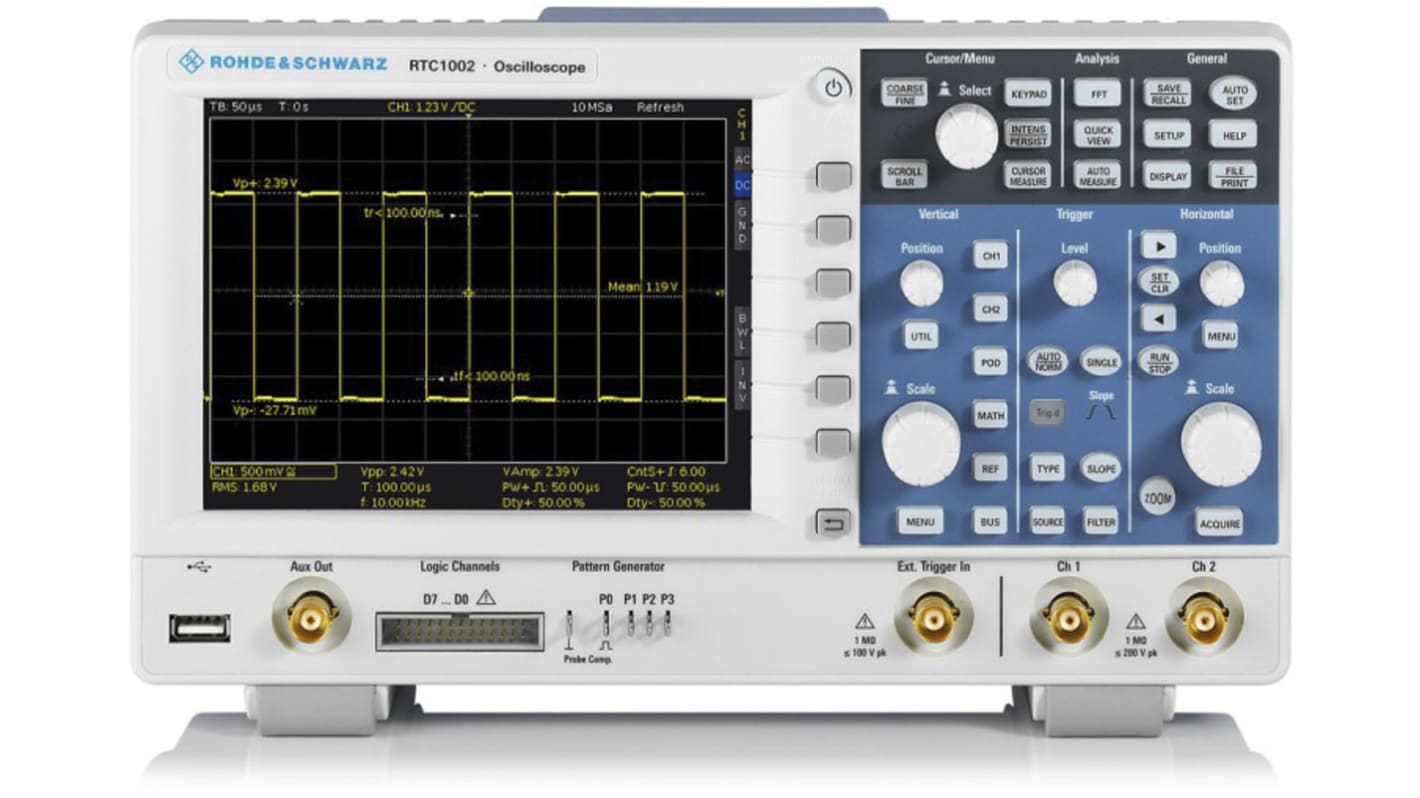

Rohde & Schwarz RTC1000 Series RTC1002 Oscilloscope
The Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. This allows a bandwidth of 300MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It has eight digital channels (MSO) that are optional and adaptable. It allows you to perform voltage measurements on analogue channels with two values simultaneously. This oscilloscope benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.
Features and Benefits
• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis
• Low noise due to 8 bit analogue to digital converters
• Fanless design for better performance
• Electric field detection
• Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes
• Optional logical analyser
Applications
• Educational institutes
• Used by service technicians
• R&D troubleshooting
• Production testing
