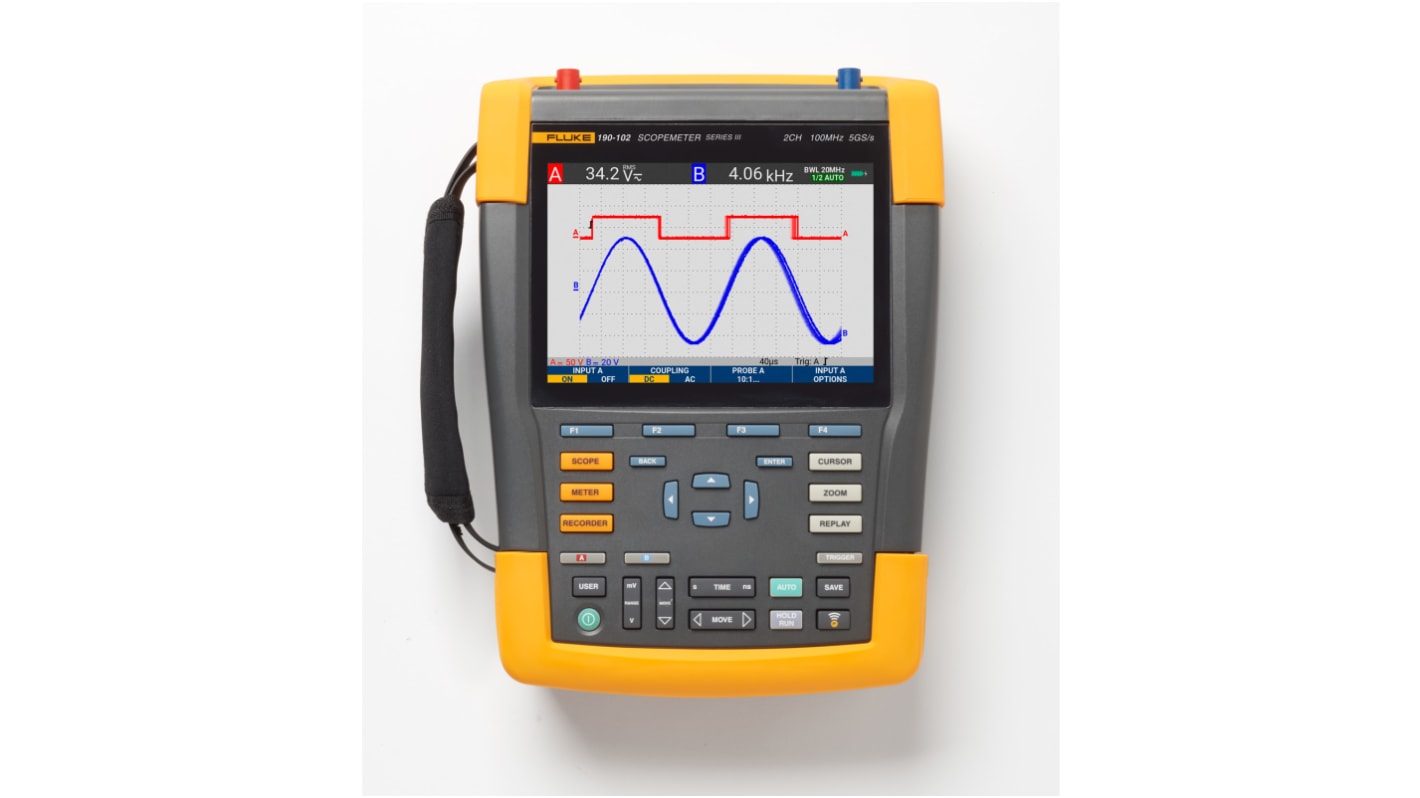

Fluke ScopeMeter III Series, 100 MHz Portable Oscilloscope, 2 Channels, RSCAL

RS Stock No.:: 230-5734
Mfr. Part No.:: FLUKE-190-102-III
Brand:: Fluke

Fluke ScopeMeter III Series, 100 MHz Portable Oscilloscope, 2 Channels, RSCAL

Subtotal (1 unit)*

Kr. 52 461,00

(exc. VAT)

Kr. 65 576,25

(inc. VAT)

FREE delivery for online orders over 750,00 kr

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 52 461,00

*price indicative

RS Stock No.:: 230-5734
Mfr. Part No.:: FLUKE-190-102-III
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Oscilloscope
	Bandwidth	100MHz
	Number of Channels	2
	Oscilloscope Type	Portable
	Oscilloscope Form	Digital Storage
	Memory Depth	30kpts
	Interface Type	USB
	Screen Size	6 in
	Series	ScopeMeter III
	Standards/Approvals	No
	Width	70mm
	Depth	192mm
	Battery Type	Rechargeable Lithium-ion
	Minimum Vertical Sensitivity	2mV/div
	Calibrated	RSCAL
	Rise Time	3.5ns
	Maximum Vertical Sensitivity	100V/div
	Minimum Time Base	5ns/div
	Maximum Time Base	4s/div
	Power Source	Battery, Mains
	Safety Category Level	CAT III, CAT IV
	Safety Category Voltage	1000V
	Vertical Resolution	8 bit
	Plug Type	USB
	Display Type	LCD

	Select all
	Brand Fluke
	Product Type Oscilloscope
	Bandwidth 100MHz
	Number of Channels 2
	Oscilloscope Type Portable
	Oscilloscope Form Digital Storage
	Memory Depth 30kpts
	Interface Type USB
	Screen Size 6 in
	Series ScopeMeter III
	Standards/Approvals No
	Width 70mm
	Depth 192mm
	Battery Type Rechargeable Lithium-ion
	Minimum Vertical Sensitivity 2mV/div
	Calibrated RSCAL
	Rise Time 3.5ns
	Maximum Vertical Sensitivity 100V/div
	Minimum Time Base 5ns/div
	Maximum Time Base 4s/div
	Power Source Battery, Mains
	Safety Category Level CAT III, CAT IV
	Safety Category Voltage 1000V
	Vertical Resolution 8 bit
	Plug Type USB
	Display Type LCD

Datasheet - FLUKE-190-102-III

COO (Country of Origin):: RO

Fluke ScopeMeter III Series Oscilloscope, 100 MHz Bandwidth, 2 Analogue Channels - FLUKE-190-102-III

This portable digital oscilloscope is designed for professionals in automation, electronics, and electrical engineering. With a bandwidth of 100MHz and a Compact design featuring dimensions of 265 x 192 x 70 mm, it provides powerful performance in a user-friendly form. The lightweight unit weighs only 2.1kg and operates on a battery source, making it Ideal for on-the-go measurements.

Features & Benefits

• 100 MHz bandwidth offers precision for high-frequency signals
• 30 kpts memory depth captures detailed signal data
• LCD display ensures clarity in diverse lighting conditions
• Maximum time base of 4 s/div allows for extended observations

Applications

• Used for detailed signal analysis in electrical testing
• Ideal for validating electronics in circuit design
• Useful in diagnosing faults in mechanical
• Effective for maintenance tasks in industrial automation

What is the significance of the two channels in analysis?

Having two channels allows for simultaneous observation of different signals, leading to more effective comparison and troubleshooting of electronic circuitry.

How does the USB functionality improve usability?

The USB Interface facilitates easy data transfer to computers for further analysis, making it convenient for creating reports and documentation.

What types of environments can this oscilloscope operate in?

This device is engineered to function reliably in CAT III and CAT IV safety environments, ensuring versatility across various challenging electrical settings.

What advantages does a battery-powered feature offer?

The battery-powered design provides freedom from power sockets, allowing for measurements in remote locations or while on-site without access to fixed power sources.

What is the benefit of having a minimum time base of 5 ns/div?

A minimum time base of 5 ns/div enables the capture of fast signal transitions, essential for accurate characterisation of high-speed digital signals in modern electronic devices.
