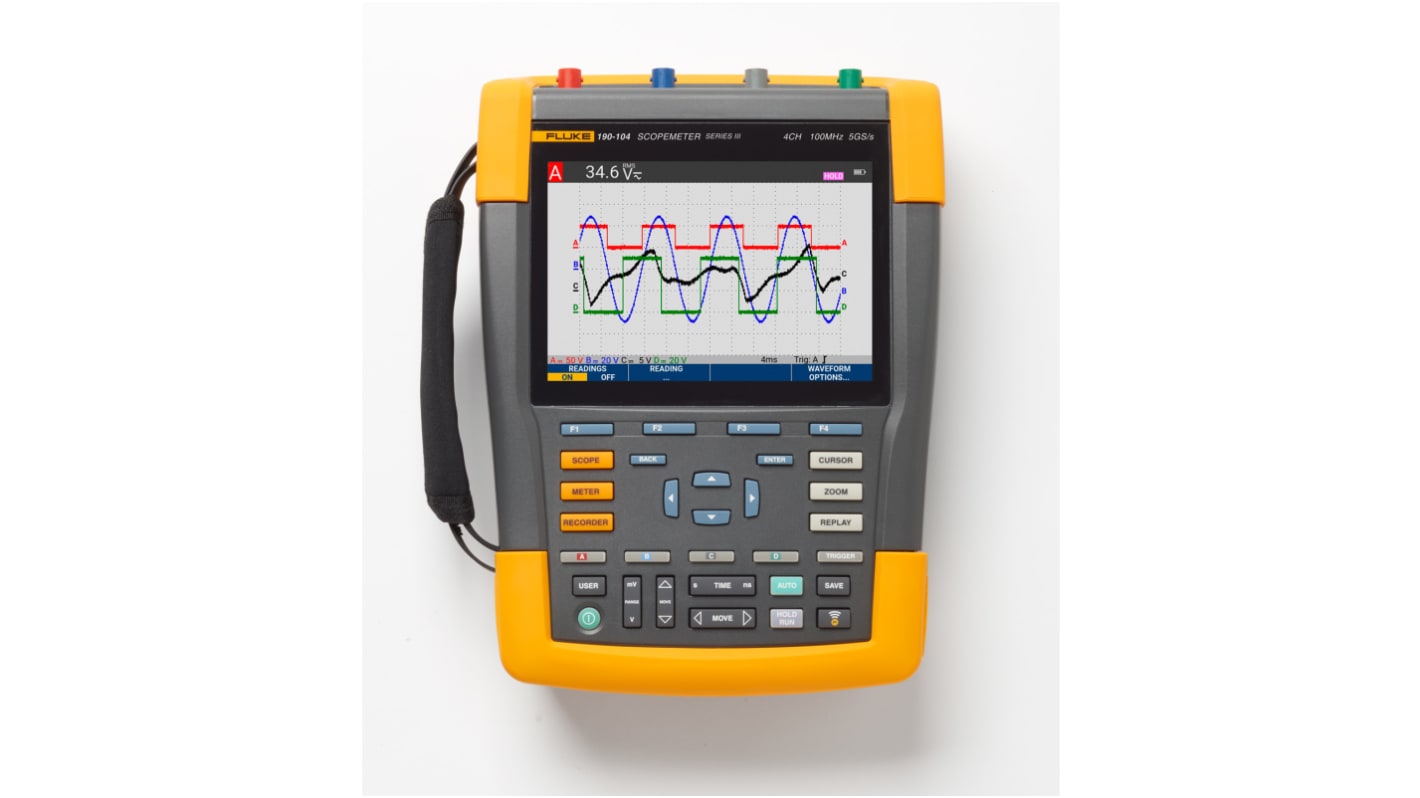

Fluke ScopeMeter III Series, 100 MHz Portable Oscilloscope, 4 Channels, UKAS

RS Stock No.:: 230-5756
Mfr. Part No.:: FLUKE-190-104-III-S
Brand:: Fluke

Fluke ScopeMeter III Series, 100 MHz Portable Oscilloscope, 4 Channels, UKAS

Subtotal (1 unit)*

Kr. 65 074,00

(exc. VAT)

Kr. 81 342,50

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Limited stock

1 left, ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 65 074,00

*price indicative

RS Stock No.:: 230-5756
Mfr. Part No.:: FLUKE-190-104-III-S
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Oscilloscope
	Bandwidth	100MHz
	Number of Channels	4
	Oscilloscope Type	Portable
	Oscilloscope Form	Digital Storage
	Interface Type	USB
	Screen Size	6 in
	Series	ScopeMeter III
	Depth	192mm
	Standards/Approvals	No
	Width	70mm
	Height	192mm
	Minimum Time Base	5ns/div
	Power Source	Mains, Battery
	Safety Category Voltage	1000V
	Safety Category Level	CAT III, CAT IV
	Battery Life	7h
	Display Type	LCD
	Vertical Resolution	8 bit
	Plug Type	USB
	Battery Type	Lithium-ion
	Minimum Vertical Sensitivity	2mV/div
	Calibrated	UKAS
	Maximum Vertical Sensitivity	100V/div
	Rise Time	3.5ns
	Maximum Time Base	4s/div

	Select all
	Brand Fluke
	Product Type Oscilloscope
	Bandwidth 100MHz
	Number of Channels 4
	Oscilloscope Type Portable
	Oscilloscope Form Digital Storage
	Interface Type USB
	Screen Size 6 in
	Series ScopeMeter III
	Depth 192mm
	Standards/Approvals No
	Width 70mm
	Height 192mm
	Minimum Time Base 5ns/div
	Power Source Mains, Battery
	Safety Category Voltage 1000V
	Safety Category Level CAT III, CAT IV
	Battery Life 7h
	Display Type LCD
	Vertical Resolution 8 bit
	Plug Type USB
	Battery Type Lithium-ion
	Minimum Vertical Sensitivity 2mV/div
	Calibrated UKAS
	Maximum Vertical Sensitivity 100V/div
	Rise Time 3.5ns
	Maximum Time Base 4s/div

Datasheet - FLUKE-190-104-III-S

COO (Country of Origin):: RO

Fluke ScopeMeter III Series Oscilloscope, 100 MHz Bandwidth, 4 Analogue Channels - FLUKE-190-104-III-S

This portable oscilloscope is a highly efficient tool designed for professionals in various technical fields. It features a digital storage oscilloscope with a bandwidth of 100MHz, offering both four analogue and four digital channels. Lightweight at 2.2kg, its dimensions are 265 x 192 x 70 mm, making it suitable for fieldwork where precision and portability are essential.

Features & Benefits

• High 100MHz bandwidth supports accurate waveform analysis
• Four analogue and four digital channels for versatile measurements
• Battery-powered design ensures flexibility without mains dependency
• USB connectivity allows for easy data transfer and storage
• Memory depth of 30 kpts enables detailed waveform capture
• Minimum time base of 5 ns/div enhances time resolution for critical signals

Applications

• Ideal for troubleshooting in automotive electronics systems
• Used for analysing communication signals in networking equipment
• Suitable for power electronics testing in renewable energy systems
• Effective in the calibration of industrial automation equipment

How does the battery life affect usage in the field?

The device utilises a lithium-ion battery, providing a substantial operating time suitable for extended use in field settings where access to power sources may be limited.

What is the significance of the safety category ratings?

The oscilloscope is rated for CAT III 1000 V and CAT IV 600 V applications, ensuring safe operation in high-voltage environments, providing peace of mind during testing and troubleshooting.

Can it perform high-speed sampling for transient signals?

Yes, with a sample rate of 1.25 Gsps, it effectively captures fast transients and other high-speed signal variations, facilitating precise analysis.
