Fluke 120B Series, 40 MHz Handheld Oscilloscope, 2 Channels - RSCAL

View all Oscilloscopes

Subtotal (1 unit)*

Kr. 34 576,04

(exc. VAT)

Kr. 43 220,05

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • Plus 5 left, shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 34 576,04

*price indicative

RS Stock No.:
284-8593
Mfr. Part No.:
FLUKE-124B/INT
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Product Type

Oscilloscope

Bandwidth

40MHz

Number of Channels

2

Oscilloscope Type

Handheld

Oscilloscope Form

Digital

Interface Type

CAN, RS232, RS422, RS485, USB

Screen Size

5.7 in

Series

120B

Width

55mm

Standards/Approvals

IEC 61010-2-033, IEC 61010-4

Depth

132mm

Calibrated

RSCAL

Minimum Time Base

10ns

Maximum Vertical Sensitivity

200V/div

Maximum Time Base

500ns/div

Rise Time

8.75ns

Safety Category Voltage

600V

Power Source

Battery

Battery Life

7h

Safety Category Level

CAT III, CAT IV

Display Type

TFT Colour

Battery Type

Lithium-ion

Minimum Vertical Sensitivity

5mV/div

RoHS Status: Exempted

COO (Country of Origin):
CN

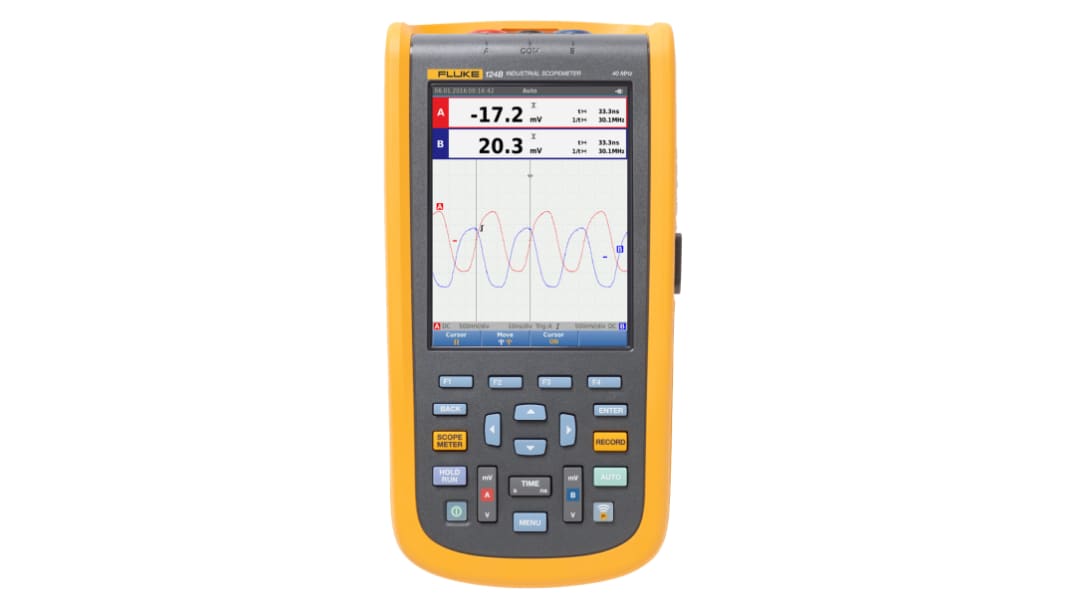

Fluke 120B Series Oscilloscope, 40 MHz Bandwidth, 2 Analogue Channels - FLUKE-124B/INT


This handheld oscilloscope provides reliable performance with a bandwidth of 40MHz, making it an Ideal tool for various electronic applications. With a Compact design measuring 259 x 132 x 55 mm and a weight of just 1.4kg, it combines portability with functionality. The device features a 5.7-inch TFT colour display, ensuring clear visibility of waveforms. Equipped with two analogue channels, it supports a sample rate of 400 ksps and offers flexible interfacing options.

Features & Benefits


• Delivers a bandwidth of 40 MHz for accurate signal analysis
• Portable design allows for easy operation in the field
• Two-channel input enables simultaneous monitoring of multiple signals
• Equipped with a 5.7-inch TFT display for enhanced Visual clarity

Applications


• Used for troubleshooting electronic circuits in maintenance
• Ideal for capturing transient signals in automotive diagnostics
• Suitable for observing communication signals in industrial automation
• Utilised for data collection in research and development projects

How does the battery life influence operational efficiency during tasks?


The battery life of up to 7 hours allows extended usage without interruptions, making it Ideal for fieldwork and reducing the need for frequent recharges during critical tasks.

What level of safety is provided when using this device in various environments?


This oscilloscope is rated for CAT III 750V and CAT IV 600V, ensuring safe operation in diverse electrical environments and protecting the user during inspections and measurements.

Can it be used effectively for capturing fast signals?


With a maximum time base of 500 ns/div and a rise time of less than 8.75 ns, it accurately captures fast-changing signals, making it essential for high-speed applications.

What advantages does the digital display offer?


The TFT colour display enhances visibility, providing a clear representation of waveforms, which simplifies analysis and improves user experience during operation.

How does the oscilloscope connect with other devices for data analysis?


It features multiple Interface options, including RS232 and USB, enabling seamless data transfer to computers and other devices for comprehensive analysis and documentation.

Note

The 40 MHz Fluke 124B includes scope cursor measurements.

Standards

IEC 61010-1: Pollution Degree 2, IEC 61010-2-033: CAT IV 600 V/CAT III 750 V

Supplied with

Li-Ion battery pack, charger/power adapter, 2 shielded test leads with ground leads, black test lead, red and blue hook clips, banana to BNC adapter, 10:1 voltage probe
