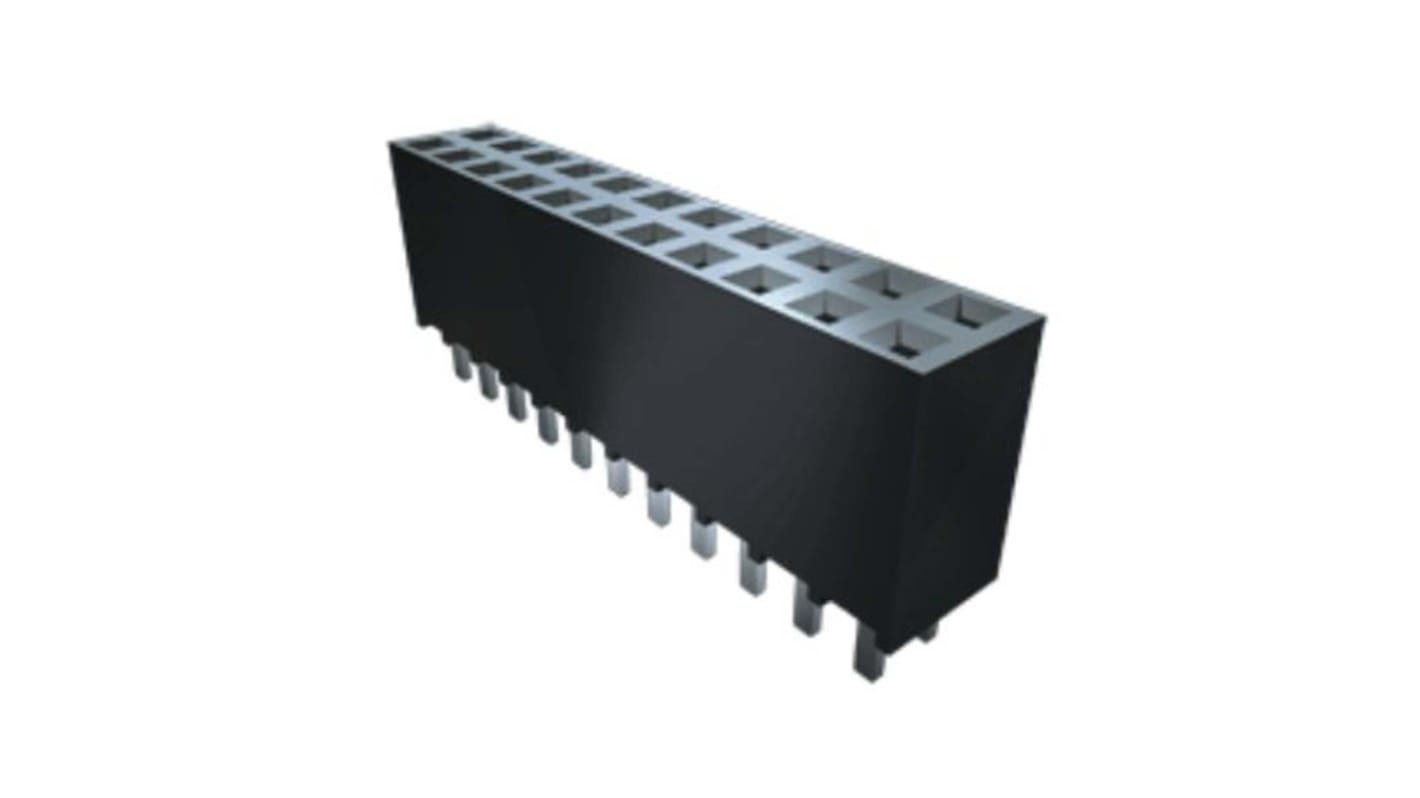

Samtec SSW Series Straight Through Hole Mount PCB Socket, 30-Contact, 2-Row, 2.54mm Pitch, Solder Termination

View all PCB Sockets
Bulk discount available

Subtotal (1 unit)*

Kr.51 02

(exc. VAT)

Kr.63 78

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28. januar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9Kr. 51,02
10 - 49Kr. 46,68
50 - 99Kr. 43,93
100 - 249Kr. 41,41
250 +Kr. 37,18

*price indicative

RS Stock No.:
207-9220
Mfr. Part No.:
SSW-115-01-S-D
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Number of Contacts

30

Number of Rows

2

Pitch

2.54mm

Type

Socket Strip

Mounting Type

Through Hole

Body Orientation

Straight

Termination Method

Solder

Series

SSW

The Samtec SSQ series PCB through hole board-to-board has solder tailed socket strip with a 2.54mm pitch, a black, liquid crystal polymer insulator and phosphor bronze Tiger Buy contact. It has 30 contact with current rating 4.7 A per pin.

Standard and low insertion force contact with standard solder tail
Voltage rating 465 VAC / 655 VDC
