WAGO 2616 Series PCB Connector, 10-Contact, 10 mm Pitch, Through Hole, 1 Row
- RS Stock No.:
- 220-679
- Mfr. Part No.:
- 2616-3110/020-000
- Brand:
- WAGO
Subtotal (1 box of 15 units)*
Kr. 5 542,68
(exc. VAT)
Kr. 6 928,35
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | Kr. 5 542,68 | Kr. 369,512 |
*price indicative
- RS Stock No.:
- 220-679
- Mfr. Part No.:
- 2616-3110/020-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 10 | |
| Pitch | 10mm | |
| Current | 76A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.75mm² | |
| Housing Material | Polyamide 66 | |
| Mount Type | Through Hole | |
| Maximum Wire Size mm² | 25mm² | |
| Minimum Wire Size AWG | 18 AWG | |
| Maximum Wire Size AWG | 4 AWG | |
| Orientation | 90° | |
| Colour | Grey | |
| Voltage | 1000 V | |
| Width | 102.8 mm | |
| Standards/Approvals | No | |
| Depth | 29.4mm | |
| Series | 2616 | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 10 | ||
Pitch 10mm | ||
Current 76A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.75mm² | ||
Housing Material Polyamide 66 | ||
Mount Type Through Hole | ||
Maximum Wire Size mm² 25mm² | ||
Minimum Wire Size AWG 18 AWG | ||
Maximum Wire Size AWG 4 AWG | ||
Orientation 90° | ||
Colour Grey | ||
Voltage 1000 V | ||
Width 102.8 mm | ||
Standards/Approvals No | ||
Depth 29.4mm | ||
Series 2616 | ||
- COO (Country of Origin):
- DE

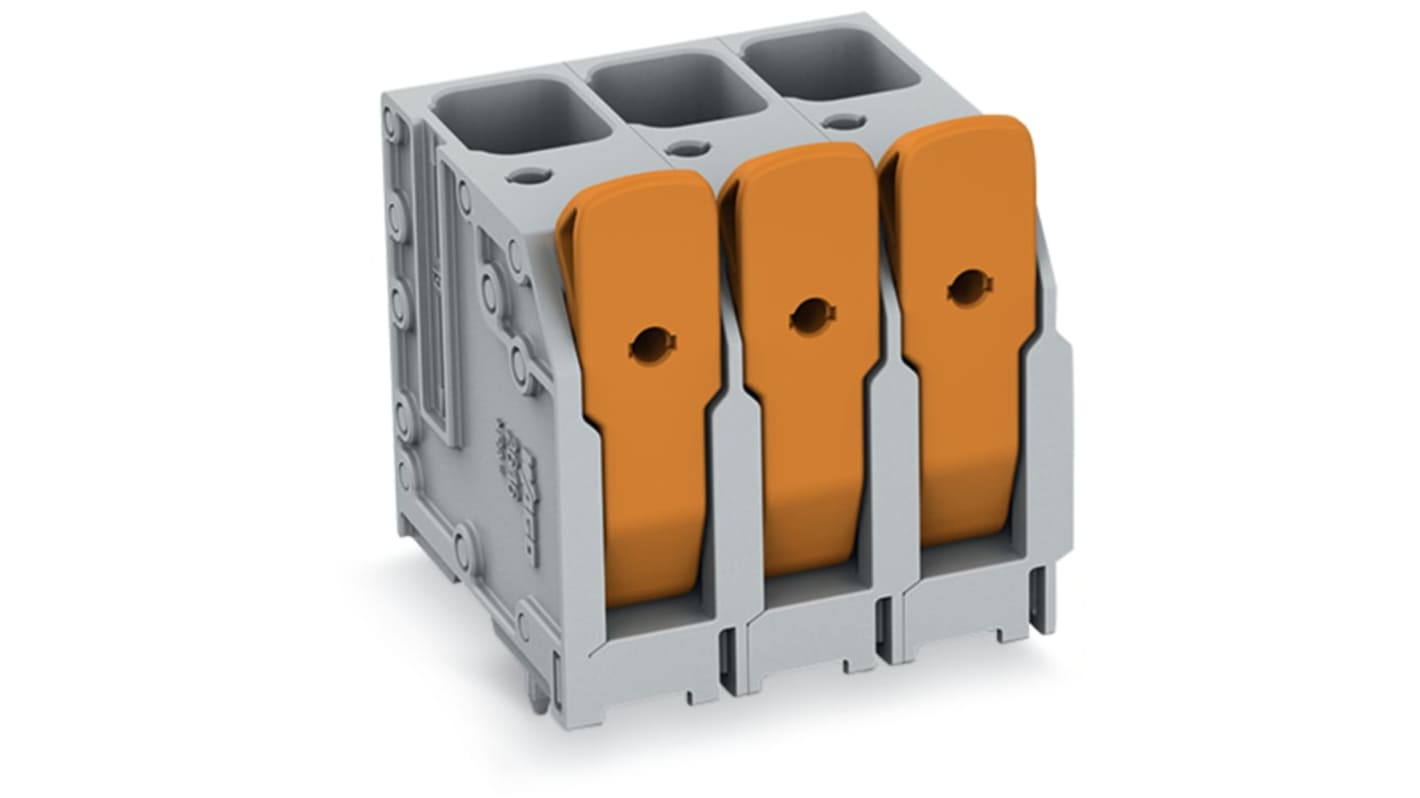

The Wago PCB terminal block with Push-in CAGE CLAMP connection and levers exemplifies cutting-edge design and functionality. Tailored for efficient conductor termination, this innovative solution caters to various application needs. It simplifies wiring processes with its intuitive, tool-free operation, allowing for quick and reliable connections.
Constructed from high quality materials for extended durability
Includes colour coded options for quick identification during assembly
Designed for efficient heat dissipation to maintain optimal performance
Backed by comprehensive documentation for installation guidance
