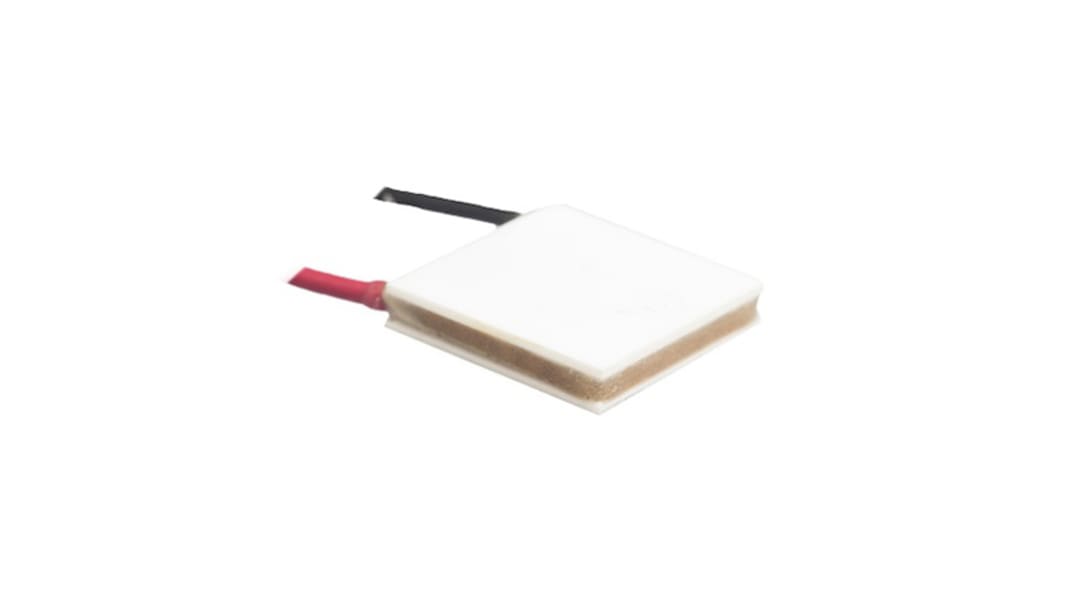

Adaptive Peltier Module, 1.2 W, 600 mA, 3.9V, 19 mm x 19 mm x 3.2 mm
- RS Stock No.:
- 174-3116
- Mfr. Part No.:
- MGM250-49-10-16
- Brand:
- Adaptive
Bulk discount available
Subtotal (1 unit)*
Kr. 288,22
(exc. VAT)
Kr. 360,28
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | Kr. 288,22 |
| 5 - 9 | Kr. 273,87 |
| 10 - 24 | Kr. 265,18 |
| 25 - 99 | Kr. 253,62 |
| 100 + | Kr. 224,80 |
*price indicative
- RS Stock No.:
- 174-3116
- Mfr. Part No.:
- MGM250-49-10-16
- Brand:
- Adaptive
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Adaptive | |
| Maximum Cooling Capacity | 1.2W | |
| Product Type | Peltier Module | |
| Maximum Temperature Difference | 250°C | |
| Resistance | 3Ω | |
| Thickness | 3.2mm | |
| Maximum Current | 600mA | |
| Maximum Voltage | 3.9V | |
| Lead Wire Type | Insulated | |
| Width | 19 mm | |
| Length | 19mm | |
| Standards/Approvals | RoHS | |
| Series | MGM250 | |
| Select all | ||
|---|---|---|
Brand Adaptive | ||
Maximum Cooling Capacity 1.2W | ||
Product Type Peltier Module | ||
Maximum Temperature Difference 250°C | ||
Resistance 3Ω | ||
Thickness 3.2mm | ||
Maximum Current 600mA | ||
Maximum Voltage 3.9V | ||
Lead Wire Type Insulated | ||
Width 19 mm | ||
Length 19mm | ||
Standards/Approvals RoHS | ||
Series MGM250 | ||
- COO (Country of Origin):
- CN
Mini Thermoelectric Power Generation (TEG) Module 19 x 19mm 1.2W. Suitable for use in applications where there is a static heat source. Most useful for sensors and other low power electronics in most types of IoT and industrial applications.
Compact structure (no moving parts)
Reliable performance
Maintenance-free
Noise-free operation
Low carbon, green technology
Epoxy sealed - suitable for use in high humidity conditions
Scaleable -modular design means that the thermoelectrics can be configured to harvest larger amounts of energy when required.
