Brown Plastic Sheet, 590mm x 285mm x 12mm, Phenolic Resin, Kraft Paper
- RS Stock No.:
- 194-1154
- Mfr. Part No.:
- E21776/29
- Brand:
- Tufnol

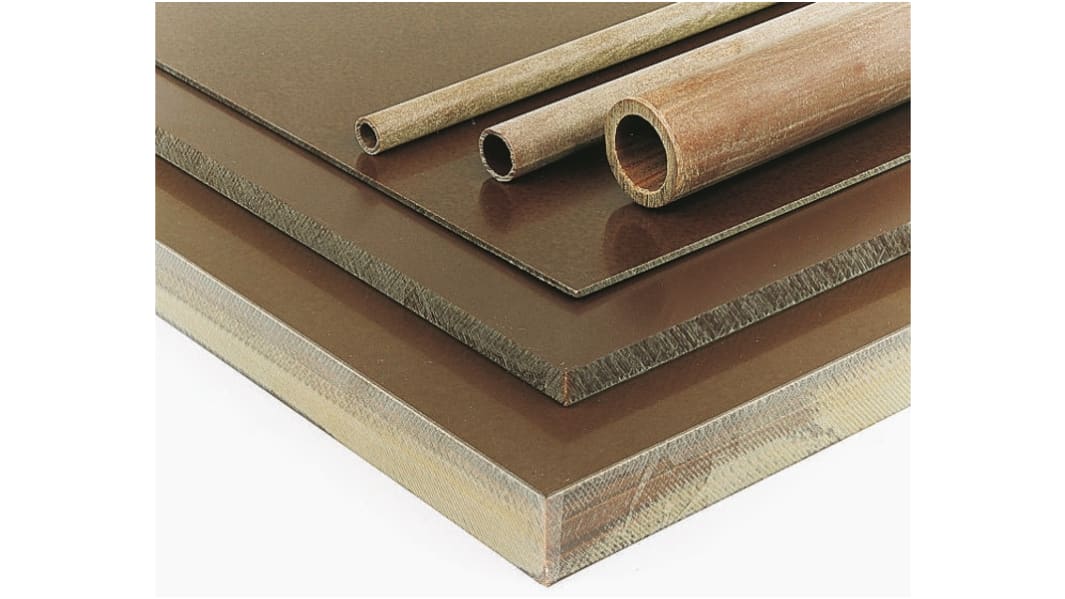

Image representative of range
View all Plastic Sheets
28 In stock for same day dispatch
Price 1 Lot of 1
kr 1 050,46
(exc. VAT)
kr 1 313,08
(inc. VAT)
| Lot(s) | Per Lot |
| 1 - 2 | kr 1 050,46 |
| 3 - 5 | kr 976,90 |
| 6 - 11 | kr 924,43 |
| 12 + | kr 840,47 |
- RS Stock No.:
- 194-1154
- Mfr. Part No.:
- E21776/29
- Brand:
- Tufnol
- COO (Country of Origin):
- GB
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Tufnol®, Kite Brand. SRBP Sheet : Synthetic Resin Bonded Paper
Kite Brand meets BS2572 Type P3 (EN60893 type PF CP 206) equivalent to the former BS5102 Type 1 and BS1137 Type 1, which have been widely used in the electrical industry for many years.
Readily machinable and can be hot punched in thickness up to 3.2mm
Applications include terminal boards, mounting panels, tag strips, coil formers, insulating sleeves and bushes, busbar supports,coil supports, insulated enclosures, brush holders, insulating spacers, plugs and sockets
Dielectric Strength In Oil At 90C8.1 MV/m (Flatwise), stock no. 194-1154
Applications include terminal boards, mounting panels, tag strips, coil formers, insulating sleeves and bushes, busbar supports,coil supports, insulated enclosures, brush holders, insulating spacers, plugs and sockets
Dielectric Strength In Oil At 90C8.1 MV/m (Flatwise), stock no. 194-1154
Standards
BS 2572 Type P3 (EN 60893 type PF CP 206); BS 5102 Type 1; BS 1137 Type 1
Specifications
| Attribute | Value |
| Colour | Brown |
| Form | Full |
| Length | 590mm |
| Width | 285mm |
| Thickness | 12mm |
| Material | SRBP |
| Laminated | Yes |
| Density | 1.36g/cm³ |
| Water Absorption | 0.01 |
| Thermal Conductivity | 0.26W/mK |
| Laminate Material | Phenolic Resin, Kraft Paper |
| Maximum Operating Temperature | +120°C |
| Cross Breaking Strength | 175MPa |
| Impact Strength | 2.7kJ/m² |
