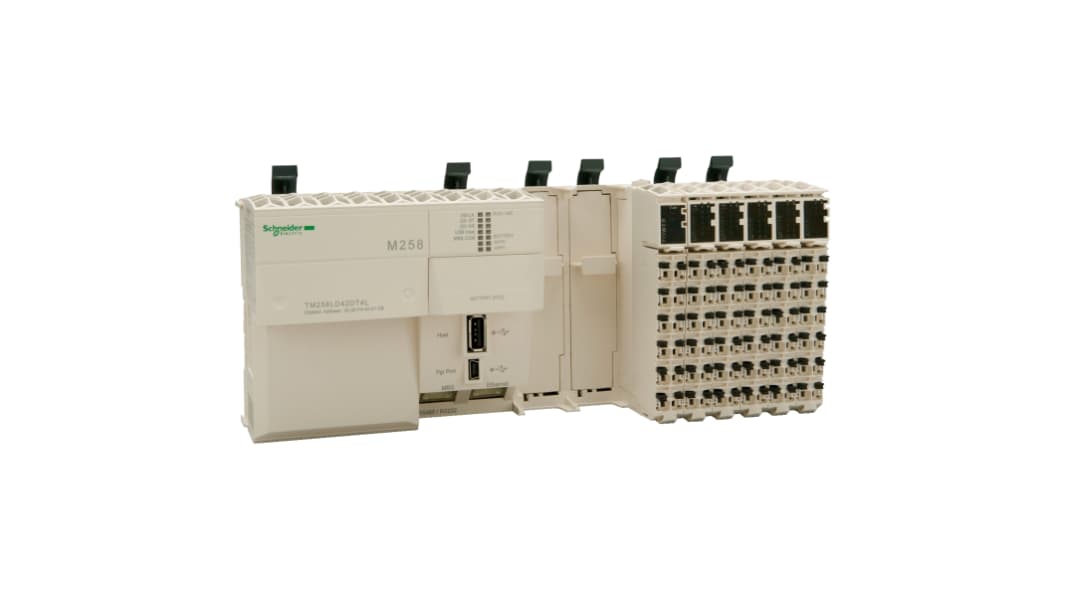

Schneider Electric Modicon M258 Series PLC CPU for Use with Modicon M258, Digital Output, 26-Input, Analogue, Digital
- RS Stock No.:
- 770-2356
- Mfr. Part No.:
- TM258LD42DT4L
- Brand:
- Schneider Electric
Subtotal (1 unit)*
Kr.28 843 80
(exc. VAT)
Kr.36 054 75
(inc. VAT)
FREE delivery for online orders over 500,00 kr
- Shipping from 20. januar 2026
Units | Per unit |
|---|---|
| 1 + | Kr. 28 843,80 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 770-2356
- Mfr. Part No.:
- TM258LD42DT4L
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Manufacturer Series | Modicon M258 | |
| Number of Inputs | 26 | |
| Output Type | Digital | |
| For Use With | Modicon M258 | |
| Input Type | Analogue, Digital | |
| Number of Outputs | 16 | |
| Voltage Category | 24 V dc | |
| Network Type | Ethernet | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Dimensions | 237.5 x 99 x 85 mm | |
| Battery Backup | Yes | |
| Minimum Operating Temperature | 0°C | |
| Memory | 192 MB | |
| Width | 99mm | |
| Mounting Type | DIN Rail | |
| Communication Port Type | Ethernet, Serial, USB | |
| Output Current | 4 mA | |
| Program Capacity | 128000 Instructions | |
| Depth | 85mm | |
| Maximum Operating Temperature | +60°C | |
| Number of Communication Ports | 6 | |
| Length | 237.5mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Manufacturer Series Modicon M258 | ||
Number of Inputs 26 | ||
Output Type Digital | ||
For Use With Modicon M258 | ||
Input Type Analogue, Digital | ||
Number of Outputs 16 | ||
Voltage Category 24 V dc | ||
Network Type Ethernet | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Dimensions 237.5 x 99 x 85 mm | ||
Battery Backup Yes | ||
Minimum Operating Temperature 0°C | ||
Memory 192 MB | ||
Width 99mm | ||
Mounting Type DIN Rail | ||
Communication Port Type Ethernet, Serial, USB | ||
Output Current 4 mA | ||
Program Capacity 128000 Instructions | ||
Depth 85mm | ||
Maximum Operating Temperature +60°C | ||
Number of Communication Ports 6 | ||
Length 237.5mm | ||
Modicon M258 - CPU
Execution speed of 22 ns for a Boolean instruction
Removable spring terminals, with a test point for a voltage sensing device
Embedded serial link and Ethernet port (RJ45)
Embedded Web and FTP Server
The Modicon M258 CPU is supported and programmed with the SoMachine Programming Software, which provides the following IEC61131-3 programming languages:
ST: Structured Text
FBD: Function Block Diagram
SFC: Sequential Function Chart
LD: Ladder Diagram
CFC: Continuous Function Chart
