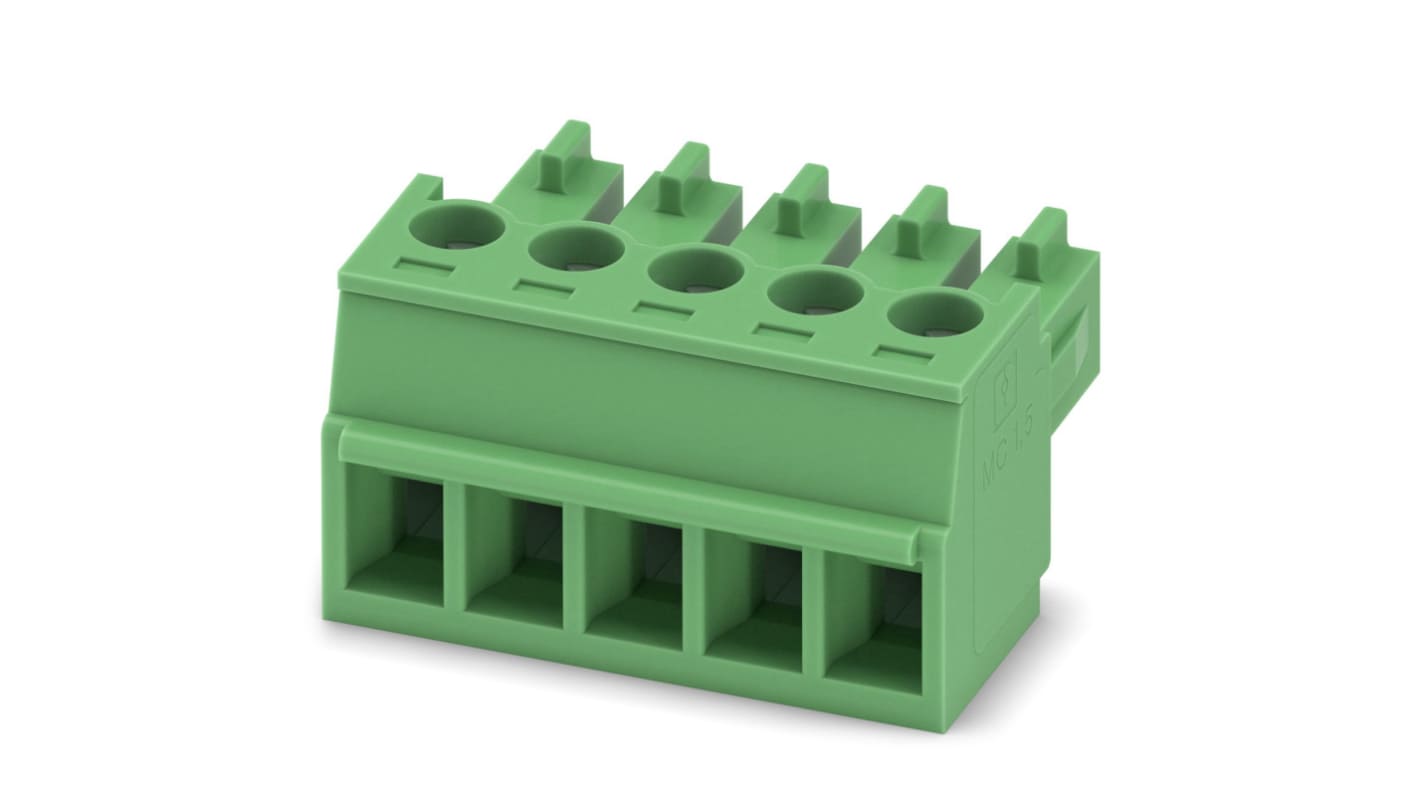

Phoenix Contact 5/5-ST-3, 81, MC 1 Series Pluggable Terminal Block, 5-Contact, 3.81 mm Pitch, 1 Row, 1860883
- RS Stock No.:
- 216-3545
- Mfr. Part No.:
- 1860883
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 pack of 50 units)*
Kr. 4 089,80
(exc. VAT)
Kr. 5 112,25
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Stocked by manufacturer
- Ready to ship from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 50 | Kr. 81,796 | Kr. 4 089,80 |
| 100 - 200 | Kr. 77,705 | Kr. 3 885,25 |
| 250 + | Kr. 73,619 | Kr. 3 680,95 |
*price indicative
- RS Stock No.:
- 216-3545
- Mfr. Part No.:
- 1860883
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 5 | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 1.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 28 AWG | |
| Maximum Wire Size AWG | 16 AWG | |
| Orientation | Horizontal | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Colour | Green | |
| Voltage | 160 V | |
| Series | 5/5-ST-3, 81, MC 1 | |
| Depth | 11.1mm | |
| Standards/Approvals | No | |
| Width | 19.84 mm | |
| Length | 16.1mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 5 | ||
Pitch 3.81mm | ||
Current 8A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 1.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 28 AWG | ||
Maximum Wire Size AWG 16 AWG | ||
Orientation Horizontal | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Colour Green | ||
Voltage 160 V | ||
Series 5/5-ST-3, 81, MC 1 | ||
Depth 11.1mm | ||
Standards/Approvals No | ||
Width 19.84 mm | ||
Length 16.1mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB connector with 5 number of positions has screw connection method. It is available in green colour.
Gold-plated contacts ensure transfer quality remains stable over the long term
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
