Weidmuller, 5.08mm Pitch, OMNIMATE SL, 10 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

RS Stock No.:: 733-0579
Mfr. Part No.:: 1147580000
Brand:: Weidmüller

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 10 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

Bulk discount available

Price Each (In a Pack of 5)**

Kr. 39,13

(exc. VAT)

Kr. 48,91

(inc. VAT)

40 In stock for same day dispatch*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over kr 500,00

Units	Per unit	Per Pack**
5 - 120	Kr. 39,13	Kr. 195,65
125 - 370	Kr. 30,708	Kr. 153,54
375 - 995	Kr. 27,352	Kr. 136,76
1000 - 1995	Kr. 23,864	Kr. 119,32
2000 +	Kr. 22,176	Kr. 110,88

**price indicative

RS Stock No.:: 733-0579
Mfr. Part No.:: 1147580000
Brand:: Weidmüller

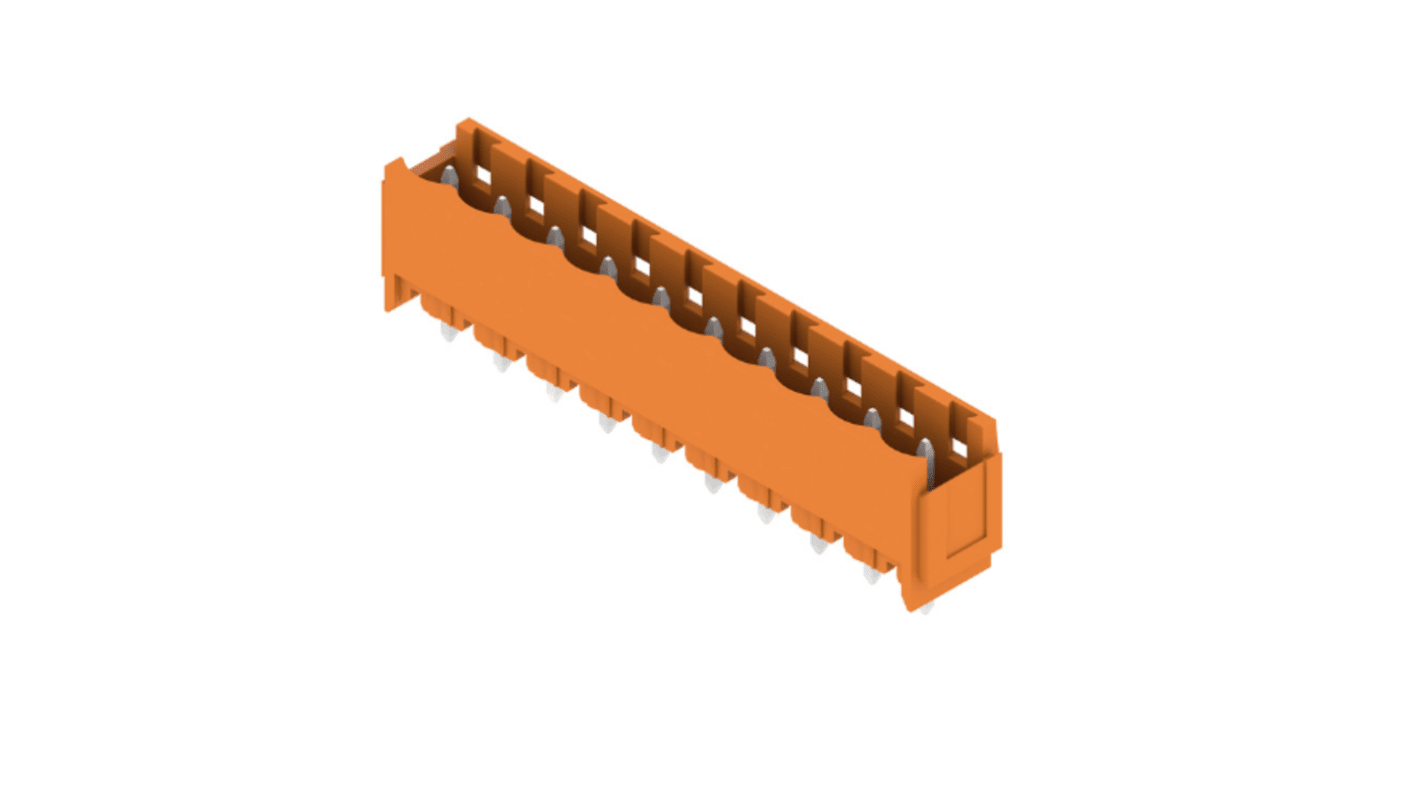

Vertical Closed Ends Thro Hole Headers 3.2mm Pin Length

These SL 5.08mm pitch Omnimate headers have a 3.2mm pin length for optimised Wave soldering.

Note

For mating cable mount terminals see typical stock numbers 733-0777 for Screw type or 733-0828 for Rising Clamp type or 733-0878 for Tension Clamp Screwless type.

Weidmuller OMNIMATE SL Series Pluggable Terminal Block, 18A Current Rating, 400V Voltage Rating - 1147580000

This pluggable terminal block ensures dependable electrical connections across automation, electronics, and electrical applications. With a straight body orientation and a compact pitch of 5.08mm, it accommodates up to 10 contacts, optimising space utilisation. The through-hole design allows for straightforward solder termination, providing a robust connection in a variety of scenarios.

Features & Benefits

• 10 contact terminal block facilitates multiple connections
• Straight body design streamlines installation
• Compact configuration with a pitch of 5.08mm
• Solder termination ensures durable connections
• Current rating of 18A supports high power handling
• Voltage rating of 400V accommodates diverse applications

Applications

• Used in automation control systems
• Ideal for PCB (Printed Circuit Board) connections
• Commonly found in electrical cabinet installations
• Employed in various industrial machinery

Can it handle high current loads?

Yes, it has a current rating of 18.0A.

Is it suitable for PCB applications?

Yes, it is designed for through-hole mounting.

Will it fit in compact electronic designs?

Its 5.08mm pitch supports space-efficient layouts.

Can this connector withstand harsh environmental conditions?

Yes, it's operational within a temperature range of -50 °C to 100 °C.

Is this connector RoHS compliant?

Yes, it is compliant without exemption.

5.08mm Pitch -Weidmüller Omnimate Range

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.

Attribute	Value
Pluggable Terminal Block Type	Header
Number of Contacts	10
Pitch	5.08mm
Series	OMNIMATE SL
Number of Rows	1
Body Orientation	Straight
Mounting Type	Through Hole
Termination Method	Solder
Current Rating	18.0A
Voltage Rating	400.0 V
Colour	Orange
Contact Material	Copper Alloy
