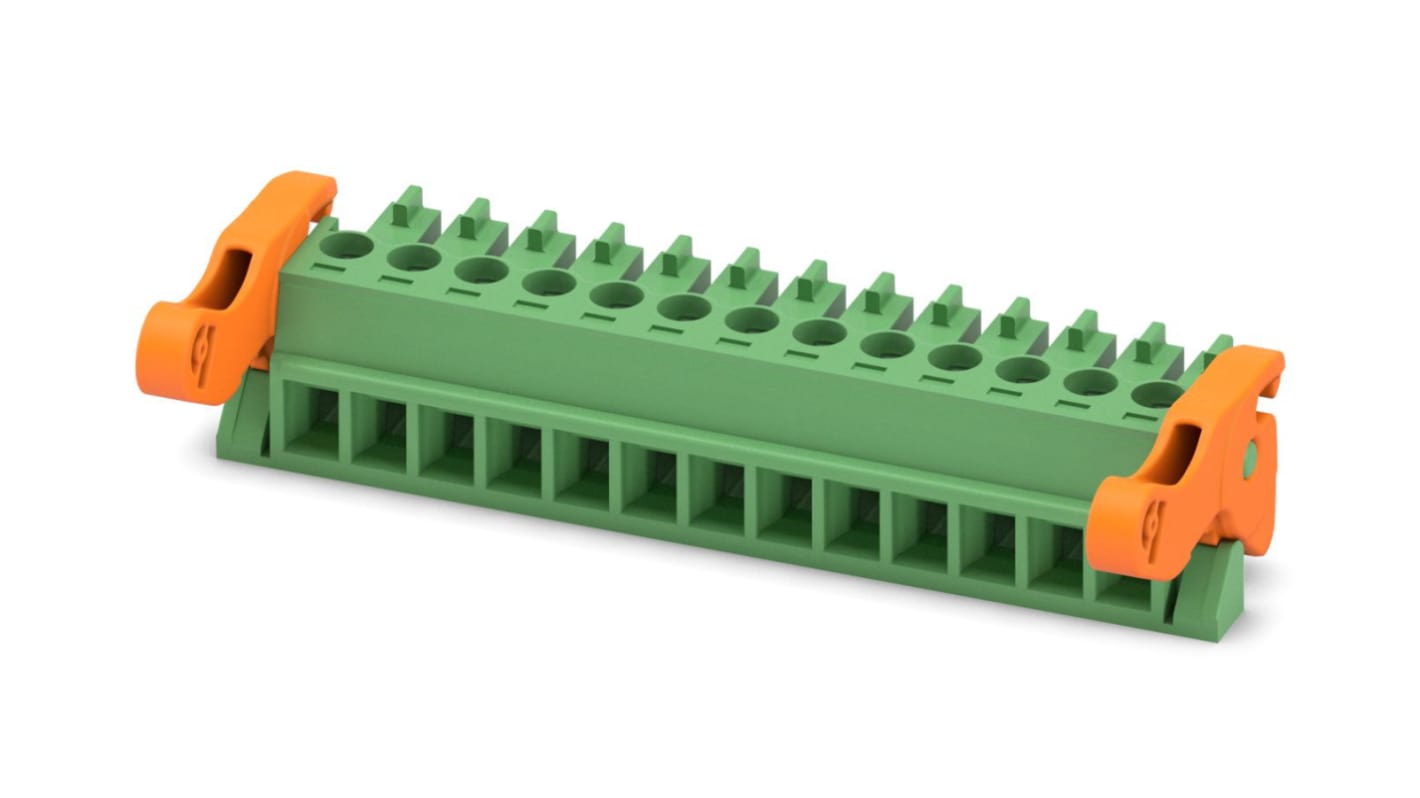

Phoenix Contact MC 1.5/13-ST-3.81-LR Series Pluggable Terminal Block, 13-Contact, 3.81 mm Pitch, 1 Row, 1817152

View all Pluggable Terminal Blocks

Subtotal (1 box of 50 units)*

Kr. 7 574,30

(exc. VAT)

Kr. 9 467,90

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 24 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 +Kr. 151,486Kr. 7 574,30

*price indicative

RS Stock No.:
881-4614
Mfr. Part No.:
1817152
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

13

Pitch

3.81mm

Current

8A

Number of Rows

1

Minimum Wire Size mm²

0.14mm²

Housing Material

Polyamide

Maximum Wire Size mm²

1.5mm²

Connector Gender

Female

Minimum Wire Size AWG

28 AWG

Maximum Wire Size AWG

16 AWG

Orientation

Straight

Colour

Green

Wire Connection Method

Screw Connection with Tension Sleeve

Voltage

160 V

Standards/Approvals

No

Series

MC 1.5/13-ST-3.81-LR

Length

27.5mm

Depth

13.6mm

Width

56.42 mm

COO (Country of Origin):
DE
PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Female connector, Number of potentials: 13, Number of rows: 1, Number of positions per row: 13, number of connections: 13, product range: MC 1,5/..-ST-LR, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, Stecksystem: MINI COMBICON, Locking: Snap-in locking, type of packaging: packed in cardboard
