EMERSON – AVENTICS CC04 Series Interlock Non Return Valve, R412010575, Tube 10 mm, Outlet Male External Thread G 3/8 in
- RS Stock No.:
- 303-556
- Mfr. Part No.:
- R412010575
- Brand:
- EMERSON – AVENTICS
Subtotal (1 unit)*
Kr. 333,34
(exc. VAT)
Kr. 416,68
(inc. VAT)
FREE delivery for online orders over 750,00 kr
Stocked by manufacturer
- Ready to ship from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 333,34 |
*price indicative
- RS Stock No.:
- 303-556
- Mfr. Part No.:
- R412010575
- Brand:
- EMERSON – AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON – AVENTICS | |
| Inlet Connection Type | Tube | |
| Product Type | Non Return Valve | |
| Outlet Connection Type | External Thread | |
| Sub Type | Interlock | |
| Inlet Connection Size | 10 mm | |
| Outlet Connection Size | 3/8 in G | |
| Series | CC04 | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Outlet Port Gender | Male | |
| Outlet Thread Standard | G | |
| Material | Acrylonitrile Butadiene Rubber (Seal), Polyamide | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS Exempt | |
| Minimum Operating Pressure | 0.5bar | |
| Hazardous Area Certification | NO | |
| Model Number | R412010575 | |
| Select all | ||
|---|---|---|
Brand EMERSON – AVENTICS | ||
Inlet Connection Type Tube | ||
Product Type Non Return Valve | ||
Outlet Connection Type External Thread | ||
Sub Type Interlock | ||
Inlet Connection Size 10 mm | ||
Outlet Connection Size 3/8 in G | ||
Series CC04 | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Outlet Port Gender Male | ||
Outlet Thread Standard G | ||
Material Acrylonitrile Butadiene Rubber (Seal), Polyamide | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS Exempt | ||
Minimum Operating Pressure 0.5bar | ||
Hazardous Area Certification NO | ||
Model Number R412010575 | ||
RoHS Status: Exempted
- COO (Country of Origin):
- CH

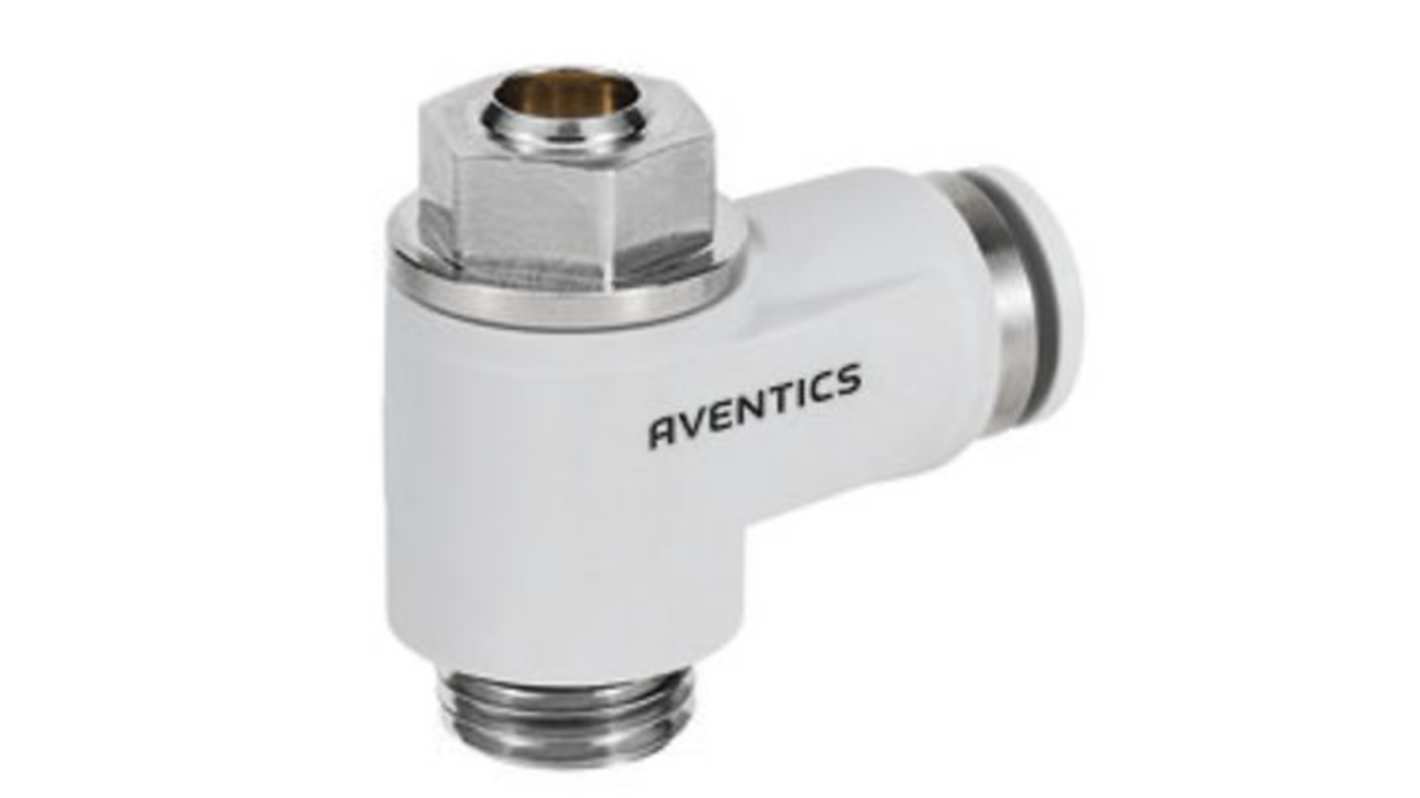

The Aventics Throttle Check Valve is a compact and lightweight solution designed for precise control of compressed air flow in industrial applications. It is available with a push in fitting and external thread.
Exhaust Air Throttling
Throttle bore diameter is 6.6 mm
Port diameters are 10 mm and G 3 by 8
Nominal flow is 900 l per min
