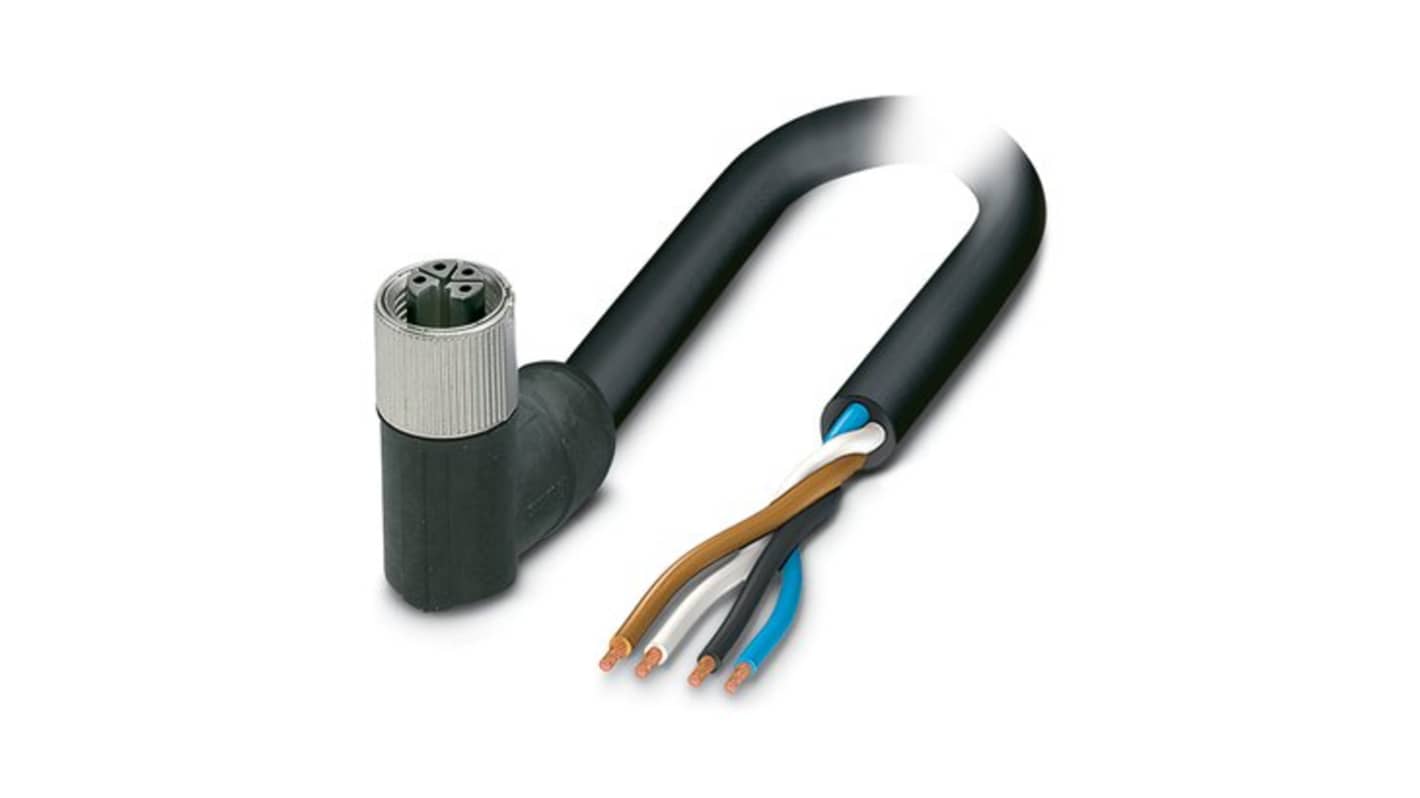

Phoenix Contact 14250, 5 m 4 Core Power Cable, Grey, Black Polyurethane 80 °C
- RS Stock No.:
- 281-193
- Mfr. Part No.:
- 1425039
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
Kr.584 58
(exc. VAT)
Kr.730 72
(inc. VAT)
FREE delivery for online orders over 500,00 kr
Temporarily out of stock
- Shipping from 16. april 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 584,58 |
*price indicative
- RS Stock No.:
- 281-193
- Mfr. Part No.:
- 1425039
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Grey, Black | |
| Cable Length | 5m | |
| Outside Diameter | 6.75 mm | |
| Jacket Material | Polyurethane | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 80°C | |
| Standards/Approvals | UL 758/1581 FT2, UL Listed, DIN EN 60811-404, DIN VDE 0472, DIN EN 50267-2-1, DIN EN 60332-2-2, EAC, cUL Listed, IEC 61076-2-111, RoHS, UL 758/1581 | |
| Cable CSA | 4 x 1.5 mm² | |
| Maximum Operating Temperature | 80°C | |
| Series | 14250 | |
| Conductor Material | Bare Copper Wire | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Grey, Black | ||
Cable Length 5m | ||
Outside Diameter 6.75 mm | ||
Jacket Material Polyurethane | ||
Voltage 63 V | ||
Minimum Operating Temperature 80°C | ||
Standards/Approvals UL 758/1581 FT2, UL Listed, DIN EN 60811-404, DIN VDE 0472, DIN EN 50267-2-1, DIN EN 60332-2-2, EAC, cUL Listed, IEC 61076-2-111, RoHS, UL 758/1581 | ||
Cable CSA 4 x 1.5 mm² | ||
Maximum Operating Temperature 80°C | ||
Series 14250 | ||
Conductor Material Bare Copper Wire | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Power cable is designed for robust and reliable performance in various applications. Manufactured from PUR halogen-free materials, it offers excellent insulation and safeguards against environmental factors. With a 4-position design and specifically coded for L-configuration, it ensures safe and secure connections for direct current systems up to 12 A and 63 V.
Mechanical performance supports over 4 million bending cycles
High insulation resistance ensures minimal electrical loss
Low adhesion properties improve handling and installation
Complies with international standards for peace of mind
