RS PRO Armoured 4 mm² 4 Core Power Cable, Black PVC, 50m
- RS Stock No.:
- 196-4694
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
Kr.5 774 57
(exc. VAT)
Kr.7 218 21
(inc. VAT)
FREE delivery for online orders over 500,00 kr
In Stock
- 3 unit(s) ready to ship
- Plus 3 unit(s) shipping from 10. februar 2026
- Plus 12 unit(s) shipping from 03. mars 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | Kr. 5 774,57 | Kr. 115,491 |
*price indicative
- RS Stock No.:
- 196-4694
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 4 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Black | |
| Length | 50m | |
| Armoured | Yes | |
| Cable Type | Armoured | |
| Sheath Material | PVC | |
| CPR Certification | Eca | |
| Outer Diameter | 14.7mm | |
| Voltage Rating | 600/1000 V | |
| Conductor Strand Type | Stranded | |
| American Wire Gauge | 11 AWG | |
| Core Strands | 7/0.85 mm | |
| Number of Strands | 7 | |
| Maximum Operating Temperature | +90°C | |
| Standards Met | BASEC | |
| Minimum Operating Temperature | -15°C | |
| Size of Strands | 0.85mm | |
| Insulation Material | Cross Linked | |
| Conductor Material | Annealed Copper | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 4 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Length 50m | ||
Armoured Yes | ||
Cable Type Armoured | ||
Sheath Material PVC | ||
CPR Certification Eca | ||
Outer Diameter 14.7mm | ||
Voltage Rating 600/1000 V | ||
Conductor Strand Type Stranded | ||
American Wire Gauge 11 AWG | ||
Core Strands 7/0.85 mm | ||
Number of Strands 7 | ||
Maximum Operating Temperature +90°C | ||
Standards Met BASEC | ||
Minimum Operating Temperature -15°C | ||
Size of Strands 0.85mm | ||
Insulation Material Cross Linked | ||
Conductor Material Annealed Copper | ||
- COO (Country of Origin):
- GB

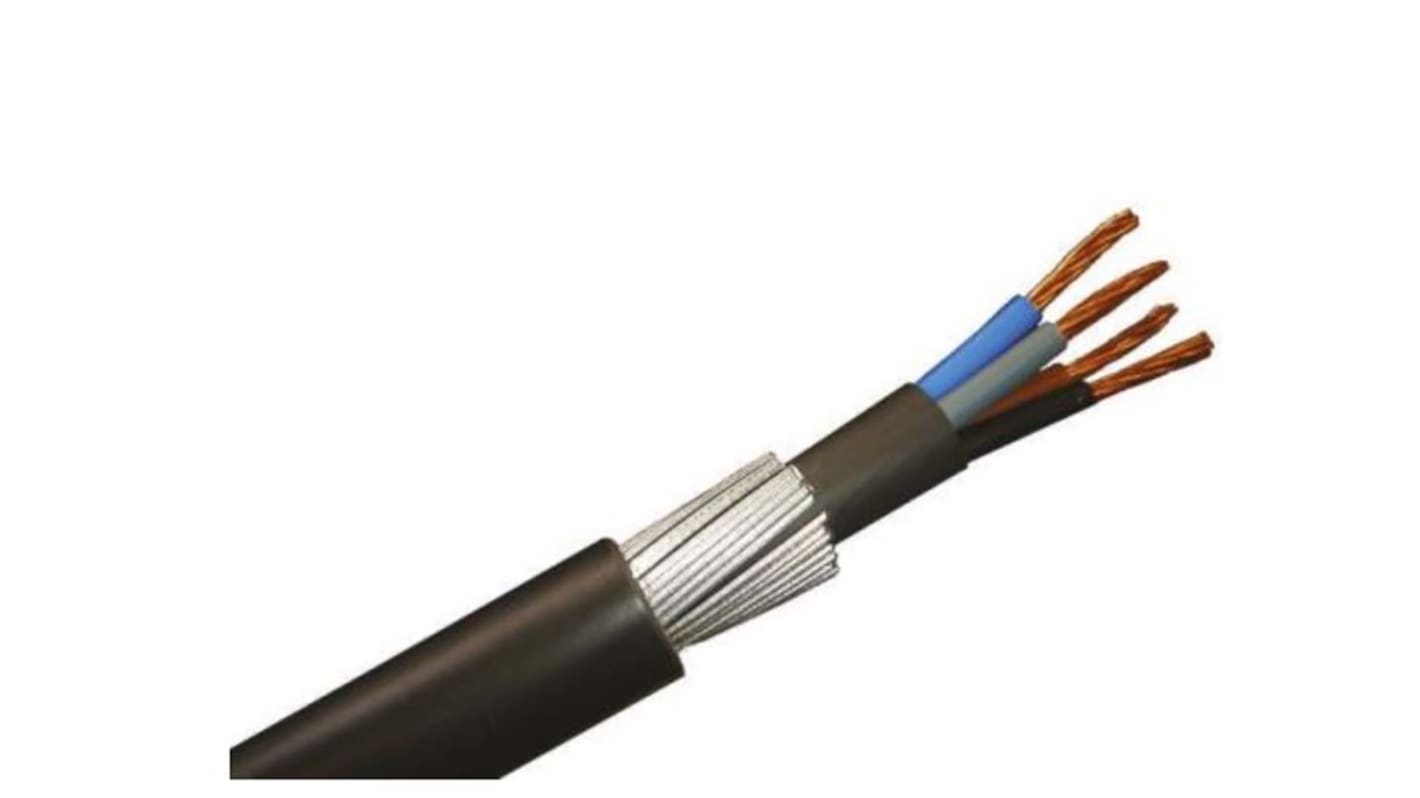

RS PRO 4 Core Armoured Power Cable 600/100V
This Range of RS PRO Steel Wire Armoured (SWA) power cable is manufactured to BS 5467 and is ideally suited for use with industrial wirings and mains distribution. The 4 core cable features plain annealed Copper conductors for excellent conductivity and is manufactured with galvanised Steel wire armour for improved protection from mechanical stresses greatly improving the tensile strength of the power cable.;Designed with versatility and durability in mind these power cables Featuring Cross-linked Polyethylene (XPLE) insulation which provide an enhanced thermal and mechanical properties with increased chemical resistance, a layer of PVC bedding and a waterproof PVC sheath.
Features and Benefits
4 core power cable;Galvanised Steel wire braid;Rated at 600/1000V;4mm stranded plain annealed Copper;XPLE insulation;PVC bedding;PVC sheath;50m in length
Applications
A hardwearing RS PRO armoured power cable suitable for a wide range of applications and environments including direct burial, embedding in concrete and underground ducting.
Standards and Approvals - BS 5467
