Fluke FLK-729 300G -82.73 kPa, -12 psi, -0.82bar to 20.68bar, 300psi, 2068.43kPa Pressure Calibrator
- RS Stock No.:
- 144-5554
- Mfr. Part No.:
- FLK-729 300G
- Brand:
- Fluke
Price Each**
Kr. 170 418,17
(exc. VAT)
Kr. 213 022,71
(inc. VAT)
Available to back order for despatch 11.04.2025*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over kr 500,00
Units | Per unit |
|---|---|
| 1 + | Kr. 170 418,17 |
**price indicative
- RS Stock No.:
- 144-5554
- Mfr. Part No.:
- FLK-729 300G
- Brand:
- Fluke
RoHS Status: Exempted
- COO (Country of Origin):
- CN

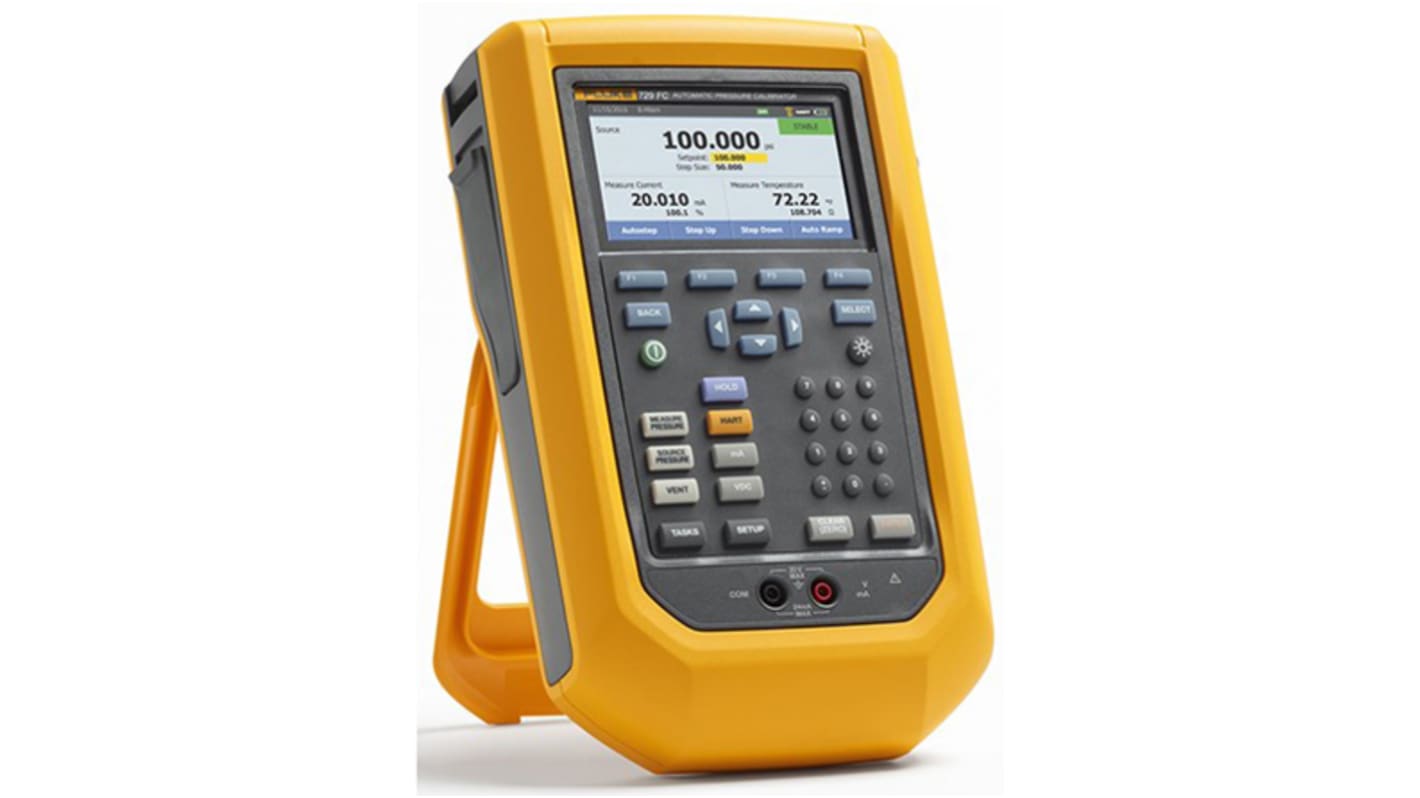

Fluke 729 Pressure Calibrator
Fluke 729 Automatic Pressure Calibrator has been designed specifically with process technicians in mind to simplify the pressure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a time-consuming task, but the 729 makes it easier than ever. Featuring an internal electric pump that provides automatic pressure generation and regulation in an easy-to-use, rugged, portable package.
The 729 allows you to type in a target pressure, and the calibrator will automatically pump to the desired set-point. Then, internal fine adjustment control automatically stabilises the pressure at the requested value. Fluke 729 can also automatically test multiple pressure test points and automatically document the results. Calibration is as easy as typing in the starting and ending pressure and the number of test points and tolerance level.
Built-in HART communication capabilities enable HART transmitter mA adjustments, simple HART configuration and the ability to adjust to applied 0% and 100% values. Upload and manage documented calibration results with DPCTrack2™ Calibration Management Software. Making it easy to manage your instrumentation, create scheduled tests and reports, and manage calibration data.
With three ranges to choose from, 30 psi (2 bar, 200 kPa), 150 psi (10 bar, 1 MPa) and 300 psi (20 bar, 2 MPa).
Fluke 729 Automatic Pressure Calibrators are designed to perform when and where you need them.
Fluke 729 Automatic Pressure Calibrators are designed to perform when and where you need them.
Features and Benefits
• Automatic pressure generation and regulation to 300 psi
• Easily document the process using on-board test templates
• Automatic internal fine-pressure adjustment
• Measure, source and simulate 4 mA to 20 mA signals
• 24 V loop power for powering transmitters for tests
• Bright dual/triple-channel colour graphical display
• HART communication for testing HART smart transmitters
• Built-in leak testing for verifying test setups for leakage
• Rugged portable design with standard 3-year warranty
• Fluke Connect® App compatibility on FC Models
• Measure temperature with optional 720RTD probe
• Measure V dc for testing 1 V dc to 5 V dc output transmitters
• Compatible with 700 Series and 750 Series pressure modules
• Upload documented test results to DPCTrack2™ Calibration Management Software
• Innovative semi-rigid carrying case designed for field work
Fluke Connect
• Save time and improve the reliability of your maintenance data by wirelessly syncing measurements using the Fluke Connect® system
• Preventive maintenance simplified. Rework eliminated.
• Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record
• Maximise uptime and make confident maintenance decisions with data you can trust and trace
• Access baseline, historical and current measurements by asset
• Move away from clipboards, notebooks and multiple spreadsheets with a wireless one-step measurement transfer
• Share your measurement data using ShareLiveTM video calls and emails
FLUKE Pressure Calibrator, Built-in Leak Testing Functionality, IP54 Rating - 729 Series - FLK-729 300G
Get the measure of your high-pressure equipment with this handheld calibrator from FLUKE. Thanks to a hefty -12 to 300psi range, you can rely on this rugged piece of kit to put the squeeze on a leaky gauge. At a lightweight 2.95kg, it's a portable choice for maintaining and regulating your industrial processes on the go. Compact dimensions of 172.7 (L) x 70 (W) x 279.4mm (H) mean it fits comfortably in your hand. The hard-wearing semi-rigid carrying case protects against knocks and bumps in the field, while offering plenty of storage for all your test hoses, leads, fittings and hand tools. Plus, with a powerful accuracy level of 0.01%, this high-performance gadget delivers precision data every time.
• Bright graphic display makes it easy to read your results
• Wide operating temperature range of -10°C to +50°C for compatibility with extreme conditions
• Automatic internal pressure adjustments fine-tune your system to keep it running at peak performance
• Wide operating temperature range of -10°C to +50°C for compatibility with extreme conditions
• Automatic internal pressure adjustments fine-tune your system to keep it running at peak performance
Applications
• Testing and maintenance
• Laboratories
• Laboratories
Is this calibrator waterproof?
Yes – an IP54 rating indicates this hardy device can cope with water spray from any direction, so you can use it in areas where it's likely to get damp.
Attribute | Value |
|---|---|
| Maximum Pressure Measurement | 20.68bar, 300psi, 2068.43kPa |
| Minimum Pressure Measurement | -82.73 kPa, -12 psi, -0.82bar |
| Pressure Port Type | Differential |
| Data Logging | Yes |
| Model Number p | FLK-729 300G |
| Current Loop Measurement | Yes |
| Leak Testing | Yes |
| Maximum Operating Temperature | +50 °C, +50°C |
| Minimum Operating Temperature | 0 °C, -10°C |
| Weight | 3kg |
| Dimensions | 172.7 x 70 x 279.4mm |
| Height | 279.4mm |
| Length | 172.7mm |
| Width | 70mm |
