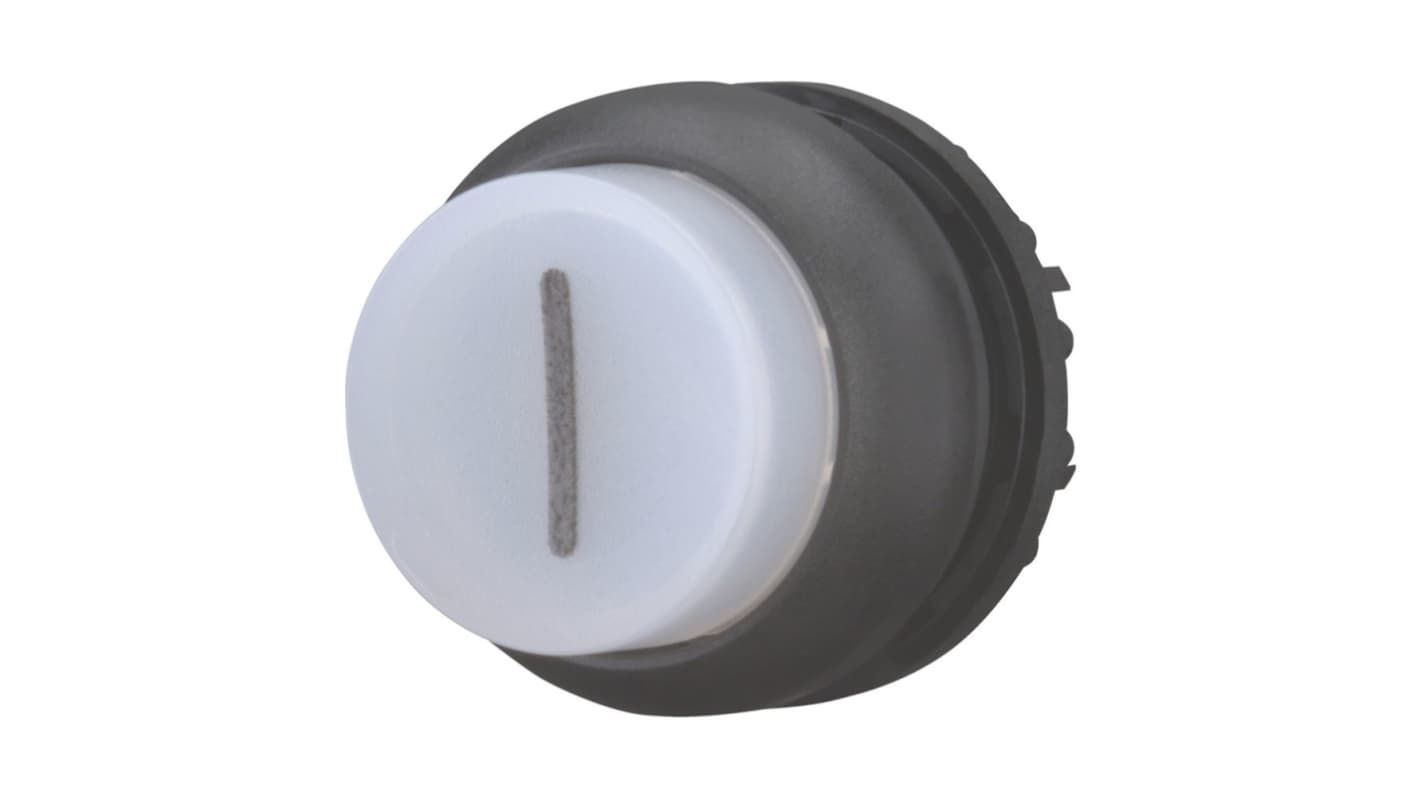

Eaton M22 Series Illuminated Illuminated Push Button, Maintained, Screw, 22.5 mm Cutout, White LED, IP66, IP67, IP69K

RS Stock No.:: 251-119
Mfr. Part No.:: 216811 M22S-DRLH-W-X1
Brand:: Eaton

Eaton M22 Series Illuminated Illuminated Push Button, Maintained, Screw, 22.5 mm Cutout, White LED, IP66, IP67, IP69K

Subtotal (1 unit)*

Kr. 253,97

(exc. VAT)

Kr. 317,46

(inc. VAT)

FREE delivery for online orders over 750,00 kr

Stocked by manufacturer

Ready to ship from 24 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 253,97

*price indicative

RS Stock No.:: 251-119
Mfr. Part No.:: 216811 M22S-DRLH-W-X1
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Illuminated Push Button
	Switch Operation	Maintained
	Actuator Colour	White
	Illuminated	Yes
	Series	M22
	Panel Cutout Size	22.5 mm
	Mount Type	Screw
	LED Colour	White
	IP Rating	IP66, IP67, IP69K
	Minimum Operating Temperature	-25°C
	Actuator Style	Extended
	Maximum Operating Temperature	70°C
	Switch Configuration	Maintained
	Length	30mm
	Standards/Approvals	CE, CSA, CSA-C22.2 No. 14-05 IEC/EN 60947, UL 508
	Width	30mm
	Height	35mm
	Legend	Inscribed 1

	Select all
	Brand Eaton
	Product Type Illuminated Push Button
	Switch Operation Maintained
	Actuator Colour White
	Illuminated Yes
	Series M22
	Panel Cutout Size 22.5 mm
	Mount Type Screw
	LED Colour White
	IP Rating IP66, IP67, IP69K
	Minimum Operating Temperature -25°C
	Actuator Style Extended
	Maximum Operating Temperature 70°C
	Switch Configuration Maintained
	Length 30mm
	Standards/Approvals CE, CSA, CSA-C22.2 No. 14-05 IEC/EN 60947, UL 508
	Width 30mm
	Height 35mm
	Legend Inscribed 1

RoHS Status: Exempted

COO (Country of Origin):: DE

Eaton Illuminated Push Button, 22.5mm Panel Cut-out Size, White LED - 216811 M22S-DRLH-W-X1

This illuminated push button provides a maintained switching solution for operator panels requiring a clear numeric indication. It is an extended actuator, front-ring fitted device with a white LED and an inscribed 1 legend, intended for panel-mount control in demanding environments. The component complies with multiple international approvals and is suitable for installations that need a labelled, stay‑put tactile interface.

Features and Benefits:

• IP69K ingress protection for washdown and high-pressure cleaning
• Maintained operation enabling persistent circuit engagement
• Operates reliably from -25°C to 70°C for varied climates
• 5N actuation force for consistent operator feel
• White LED illumination providing clear status indication

Applications

• Suitable for control panels exposed to regular washdowns
• Ideal for machinery operator stations requiring labelled switches
• Used with systems needing maintained on/off functionality
• Can be used for industrial signage with numeric indication
• Suitable for integration with SWD-RMQ smartwire‑DT connections

What mounting aperture is required for installation?

A 22.5mm panel cut-out is required for fitting.

Which materials are used for visible components?

The bezel is plastic and the front ring is fitted to the actuator.

How many command positions does it provide?

It offers a single command position with a latching switching function.

What environmental tests has it passed for humidity?

It meets cyclic and constant damp heat tests to IEC 60068-2-30 and IEC 60068-2-78.

What is its mechanical lifespan under AC operation?

The device is rated for 1,000,000 mechanical operations.
