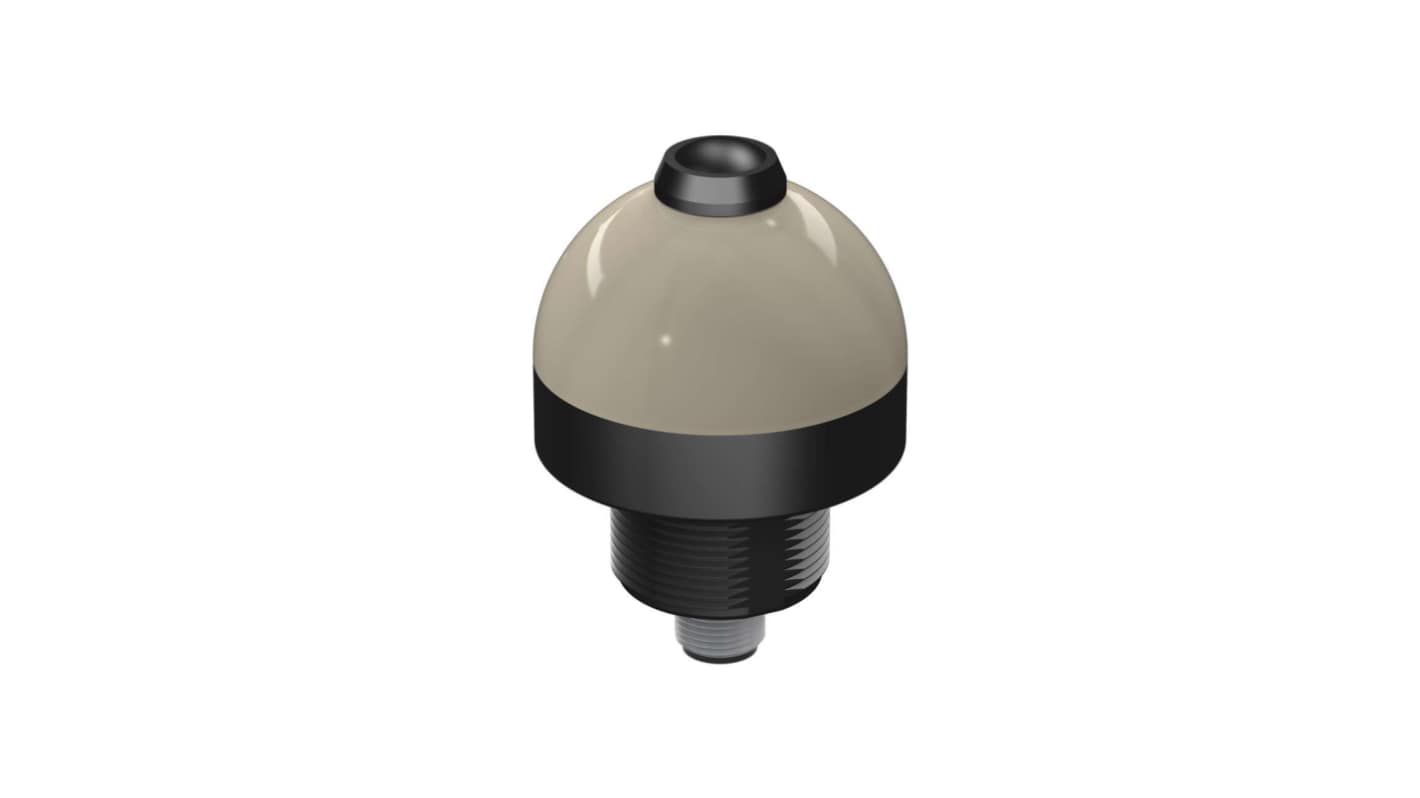

Banner K50 Series Illuminated Push Button Switch, Base Green, Yellow, Red, IP67, IP69K
- RS Stock No.:
- 294-281
- Mfr. Part No.:
- K50APPBGRYF2Q8
- Brand:
- Banner
Subtotal (1 unit)*
Kr. 2 497,12
(exc. VAT)
Kr. 3 121,40
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 2 497,12 |
*price indicative
- RS Stock No.:
- 294-281
- Mfr. Part No.:
- K50APPBGRYF2Q8
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | K50 | |
| Push Button Actuation | Momentary | |
| Mount Type | Base | |
| Push Button Colour | Green, Yellow, Red | |
| Push Button Style | Illuminated Dome, Momentary | |
| Push Button Shape | Dome | |
| IP Rating | IP67, IP69K | |
| Minimum Operating Temperature | -40°C | |
| Illumination Voltage | 30V dc | |
| Push Button Diameter | 50mm | |
| Maximum Operating Temperature | 50°C | |
| Push Button Material | Thermoplastic | |
| Standards/Approvals | cULus, Method 201A, MIL-STD-202F, UK CA, IEC 60947-5-2, CE, DIN 40050-9, IEC IP67 | |
| Hazardous Area Certification | No | |
| Body Material | Polycarbonate, Nylon | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series K50 | ||
Push Button Actuation Momentary | ||
Mount Type Base | ||
Push Button Colour Green, Yellow, Red | ||
Push Button Style Illuminated Dome, Momentary | ||
Push Button Shape Dome | ||
IP Rating IP67, IP69K | ||
Minimum Operating Temperature -40°C | ||
Illumination Voltage 30V dc | ||
Push Button Diameter 50mm | ||
Maximum Operating Temperature 50°C | ||
Push Button Material Thermoplastic | ||
Standards/Approvals cULus, Method 201A, MIL-STD-202F, UK CA, IEC 60947-5-2, CE, DIN 40050-9, IEC IP67 | ||
Hazardous Area Certification No | ||
Body Material Polycarbonate, Nylon | ||
- COO (Country of Origin):
- US
The Banner EZ-LIGHT K50 Series Pick to Light Sensors are rugged, easy to install devices designed for error proofing and parts verification in assembly and picking operations. These compact, self-contained units do not require an external controller. Featuring an illuminated dome, the sensors provide a bright, easy to see green job light, with some models also offering a red light for alternate functions.
Fully encapsulated IP67 protection rated
Ideal for use in abusive environments rated to IP69K
Immune to ambient light and EMI and with interference
AS-i module compatible
12 V dc to 30 V dc operation
