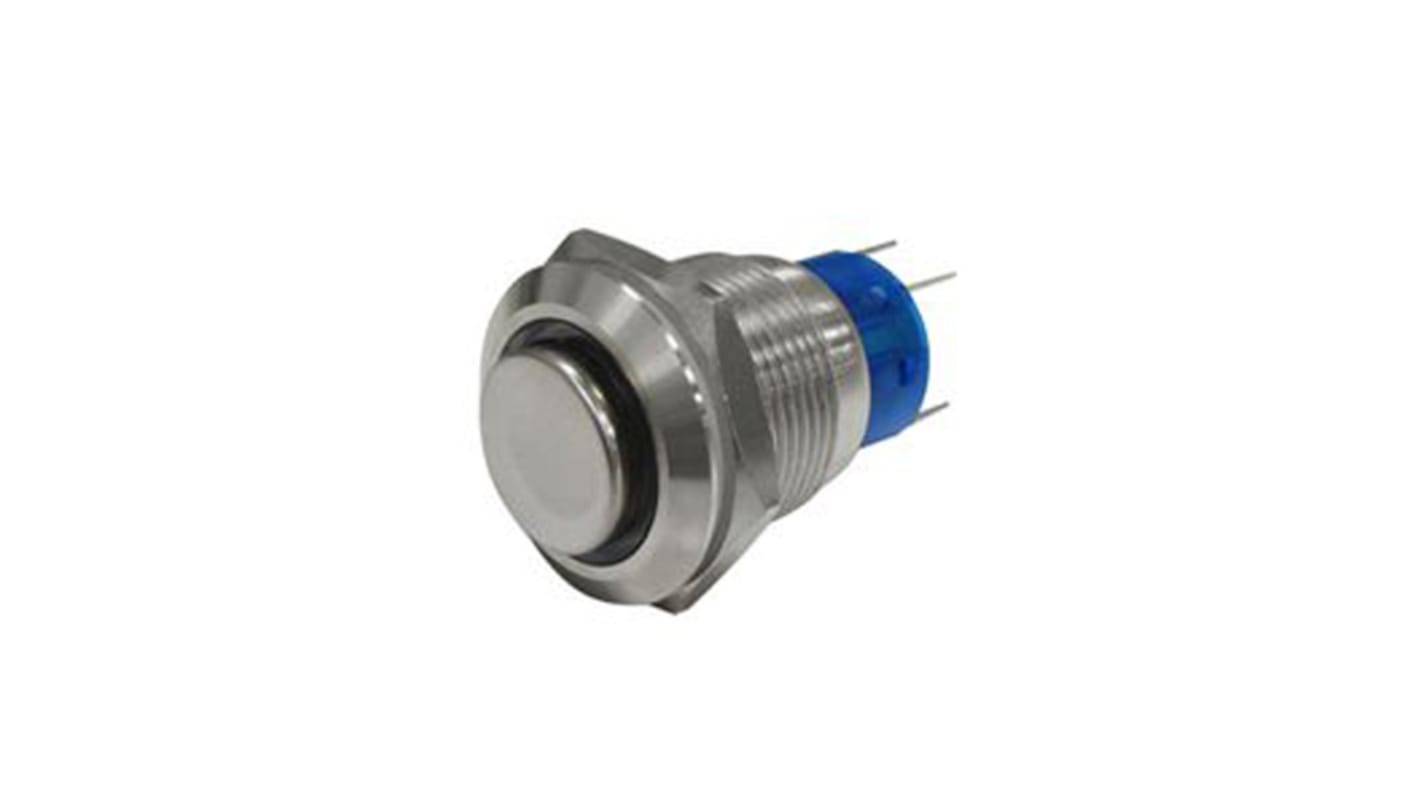

RS PRO Illuminated Push Button Switch, Latching, Panel, 19.2 mm Cutout, SPDT, Red LED, IP67, 12 V dc 250 V ac

View all Push Button Switches
Bulk discount available

Subtotal (1 unit)*

Kr.195 13

(exc. VAT)

Kr.243 91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 312 unit(s) ready to ship
  • Plus 29 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4Kr. 195,13
5 - 9Kr. 189,45
10 - 24Kr. 183,61
25 - 49Kr. 173,66
50 +Kr. 160,16

*price indicative

RS Stock No.:
111-5773
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Actuator Colour

Silver

Switch Operation

Latching

Product Type

Push Button Switch

Illuminated

Yes

Panel Cutout Size

19.2 mm

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder Pin

LED Colour

Red

IP Rating

IP67

Actuator Style

Round

Contact DC Voltage

12V dc

Minimum Operating Temperature

-20°C

Contact AC Voltage

250V ac

Maximum Operating Temperature

55°C

Switch Configuration

1 NO/1 NC

Standards/Approvals

UL 94-V0, UL 94-V2

Switch Contact Current

5 A

COO (Country of Origin):
CN

RS PRO Single Pole Double Throw (SPDT) Latching Red LED Push Button Switch, IP67, 19.2 mm (Dia.), Panel Mounting, 250 V AC


This RS PRO SPDT (single pole double throw) latching red LED push button switch controls the flow of electricity in your circuit. It can be found in a variety of industrial environments, including scientific labs and food production lines.

You can panel mount this switch or solder it in place, giving you flexibility during installation. The copper material of its contacts ensures efficient connectivity without a loss of power. There's also a clearly marked power symbol, so it's easy to identify.

Thanks to its IP67 rating, this switch is suitable for use in dusty and damp working conditions. It's commonly used in medical equipment, communications technology and machinery.

Features and Benefits


  • Round, flat silver actuator

  • Natural case colour

  • Contact AC voltage rating of 250 V AC

  • Single Pole Double Throw (SPDT) contact configuration

  • Contact current rating of 5 A

  • Copper contact material

  • Illuminated

  • Illumination voltage of 12 V

  • IP67 rated

  • Red LED colour

  • Power symbol

  • Panel mounting type

  • Panel cut out size of 19.2 mm (diameter)

  • Standards met include cULus Recognized E 187490, ENEC 18, IK10

  • Latching switch operation

  • Solder pin terminal type
