Eaton C22 Series Illuminated Push Button Switch, Panel, 22 mm Cutout Blue, SPST, IP67, IP69K

RS Stock No.:: 123-6373
Mfr. Part No.:: 181298 C22-DL-B-K10-24-P5
Brand:: Eaton

Eaton C22 Series Illuminated Push Button Switch, Panel, 22 mm Cutout Blue, SPST, IP67, IP69K

Subtotal (1 unit)*

Kr.669 00

(exc. VAT)

Kr.836 25

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

Plus 25 unit(s) shipping from 19. januar 2026
Plus 1 unit(s) shipping from 19. januar 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	Kr. 669,00

*price indicative

RS Stock No.:: 123-6373
Mfr. Part No.:: 181298 C22-DL-B-K10-24-P5
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Push Button Switch
	Illuminated	Yes
	Cutout Diameter	22mm
	Series	C22
	Push Button Actuation	Momentary
	Mount Type	Panel
	Push Button Colour	Blue
	Contact Configuration	SPST
	Push Button Style	Round
	Terminal Type	M12 Connector
	Push Button Shape	Round
	IP Rating	IP67, IP69K
	Illumination Voltage	24 V ac/dc
	Push Button Diameter	29.7mm
	Minimum Operating Temperature	-25°C
	Push Button Material	Plastic
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	No
	Standards/Approvals	VDE 0660, UL, CSA, NKCR, CE, IEC/EN0947-5-1, CE marking
	Body Material	Plastic

	Select all
	Brand Eaton
	Product Type Push Button Switch
	Illuminated Yes
	Cutout Diameter 22mm
	Series C22
	Push Button Actuation Momentary
	Mount Type Panel
	Push Button Colour Blue
	Contact Configuration SPST
	Push Button Style Round
	Terminal Type M12 Connector
	Push Button Shape Round
	IP Rating IP67, IP69K
	Illumination Voltage 24 V ac/dc
	Push Button Diameter 29.7mm
	Minimum Operating Temperature -25°C
	Push Button Material Plastic
	Maximum Operating Temperature 70°C
	Hazardous Area Certification No
	Standards/Approvals VDE 0660, UL, CSA, NKCR, CE, IEC/EN0947-5-1, CE marking
	Body Material Plastic

COO (Country of Origin):: DE

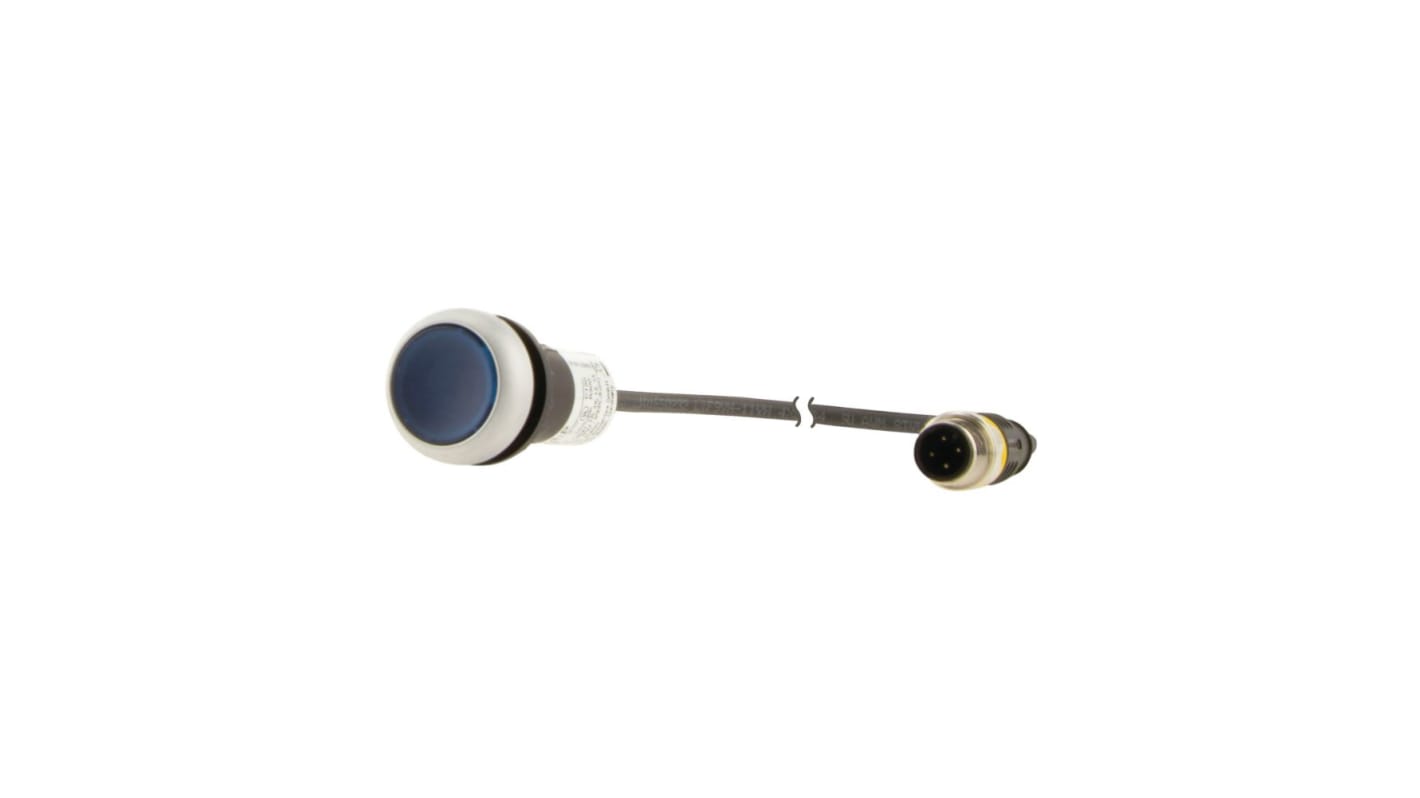

Eaton Push Button, Round Shape, 29.7mm Button Diameter - C22 Series - 181298 C22-DL-B-K10-24-P5

Need an easy-to-press actuator for your control panel? Select this push button from Eaton. Its round head and flat shape mean you can activate it quickly, even in gloves, while built-in illumination makes it eye-catching. The momentary actuation style makes it useful for emergency stop or reset functions. As the unit comes with a pluggable flying lead, it's a breeze to quickly connect to your system. A titanium bezel means it has the mettle to handle impacts in heavy-duty settings like automotive manufacture or metalworks.

Features & Benefits

• Handles up to 3,600 operations per hour to match demanding applications

• Plastic body resists corrosion and abrasion to deliver a long service life

• Performs reliably in temperatures between -25°C and +70°C

• Vibrant blue colour means it's easy to spot on a crowded panel

How hard do I have to press this button?

This push button is a breeze to operate, as it requires less than 5N of pushing force to activate.

Does this device withstand intensive cleaning?

Yes. This push button's front has an IP69K rating, which means it's dust-tight and withstands high-pressure and high-temperature washdowns.

Note

Eaton formerly known as Moeller
