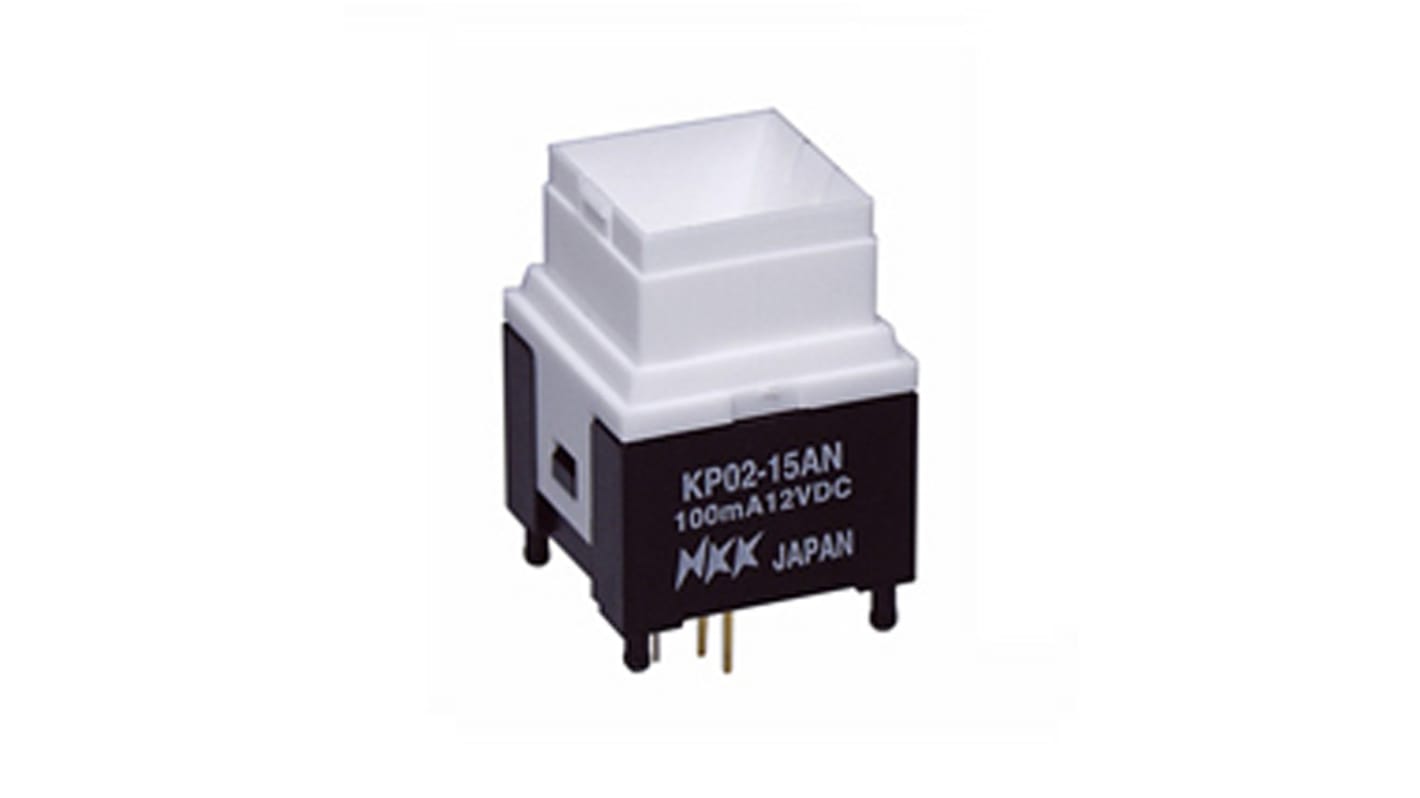

NKK Switches Illuminated Push Button Switch, Momentary, PCB, SPST, Green, Red LED, 12V dc
- RS Stock No.:
- 125-1663
- Mfr. Part No.:
- KP0215ACBKG036CF
- Brand:
- NKK Switches
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 125-1663
- Mfr. Part No.:
- KP0215ACBKG036CF
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Mounting Type | PCB | |
| Contact Configuration | SPST | |
| Voltage Rating | 12V dc | |
| LED Colour | Green, Red | |
| Contact Current Rating | 100 mA | |
| Contact Material | Copper Alloy | |
| Contact DC Voltage Rating | 12V | |
| Case Colour | Black | |
| Manufacturer Part No. | KP0215ACBKG036CF | |
| Terminal Type | Solder Lug | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Mounting Type PCB | ||
Contact Configuration SPST | ||
Voltage Rating 12V dc | ||
LED Colour Green, Red | ||
Contact Current Rating 100 mA | ||
Contact Material Copper Alloy | ||
Contact DC Voltage Rating 12V | ||
Case Colour Black | ||
Manufacturer Part No. KP0215ACBKG036CF | ||
Terminal Type Solder Lug | ||
- COO (Country of Origin):
- CN
NKK Illuminated Pushbutton Switches KP Series
The KP series pushbutton switches offer a complete switch solution for broadcasting panel requirements. Applications include: Home keys, custome rectangular switch/cap assembly.
Features and Benefits
LED superbright lights providing unlimited colour combinations
Snap in standoff
Actuation guide
Smooth silent operation
Compact design
Gold plated twin contacts
Long life operation 5,000,000 minimum operations
Snap in standoff
Actuation guide
Smooth silent operation
Compact design
Gold plated twin contacts
Long life operation 5,000,000 minimum operations
Standards
UL94V-0 Lower housing
NKK Illuminated Pushbutton Switches
