Select all	Attribute	Value
	Brand	NKK Switches
	Actuator Colour	Black
	Product Type	Push Button Switch
	Switch Operation	Momentary
	Illuminated	No
	Series	SB
	Panel Cutout Size	12.5 mm
	Mount Type	Bush
	Contact Configuration	SPST
	Minimum Operating Temperature	-10°C
	Contact AC Voltage	250V
	Actuator Style	Round
	Maximum Operating Temperature	70°C
	Standards/Approvals	RoHS, CSA, UL
	Switch Contact Current	1.5 A

	Select all
	Brand NKK Switches
	Actuator Colour Black
	Product Type Push Button Switch
	Switch Operation Momentary
	Illuminated No
	Series SB
	Panel Cutout Size 12.5 mm
	Mount Type Bush
	Contact Configuration SPST
	Minimum Operating Temperature -10°C
	Contact AC Voltage 250V
	Actuator Style Round
	Maximum Operating Temperature 70°C
	Standards/Approvals RoHS, CSA, UL
	Switch Contact Current 1.5 A

Series SB_Datasheet_EN

COO (Country of Origin):: CN

NKK Low/Medium Capacity Pushbuttons SB Series

The NKK SB series are a standard pushbutton offering a 12mm cut out and various different switch configurations. The SB series offer good product life and a reliable switch supplied with either screw terminals or solder lugs to meet customer requirements.

NKK Pushbutton Switches

Standards

UL File No. E44145, CSA File No. 023535_0_000

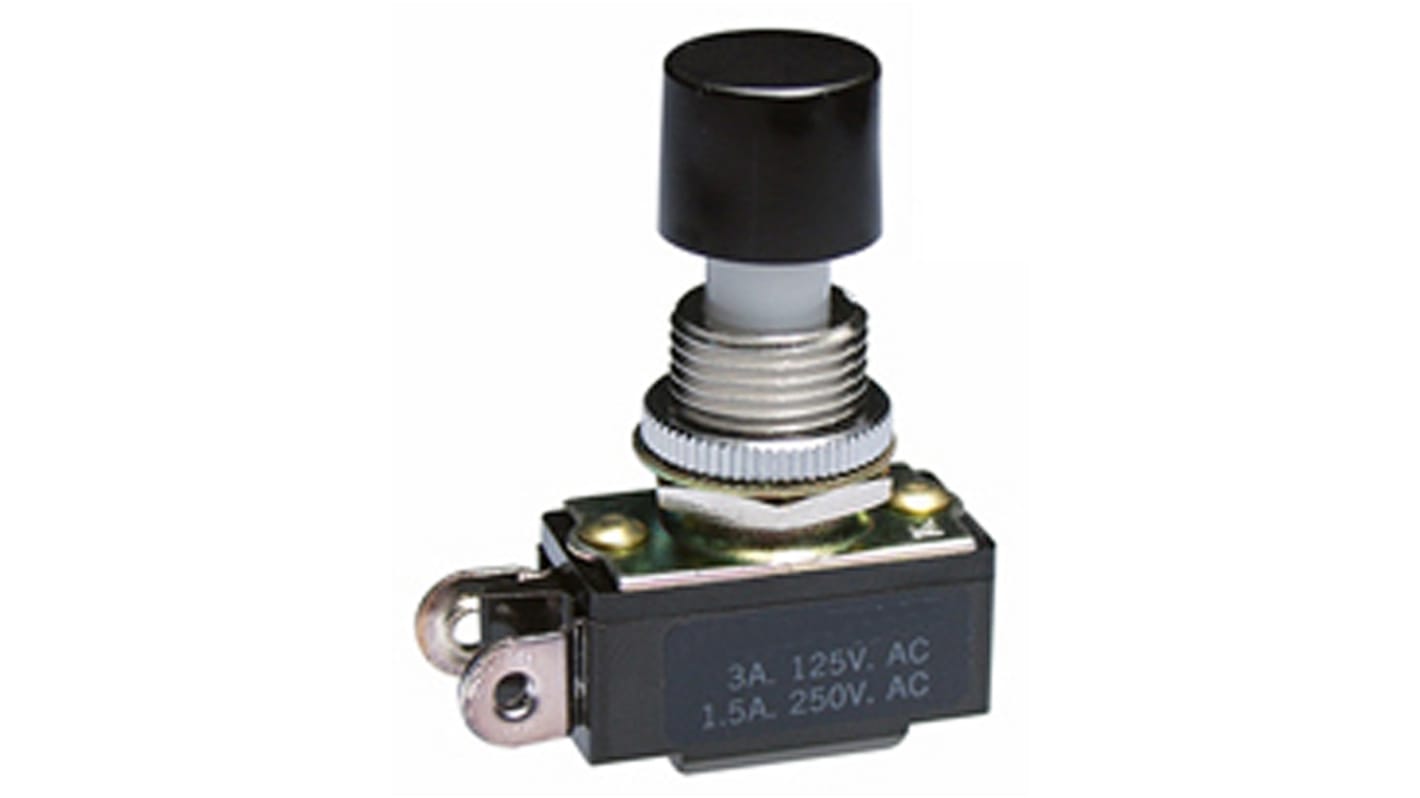

NKK Switches SB Series Push Button Switch, Momentary, Bush, 12.5 mm Cutout, SPST 250 V

NKK Low/Medium Capacity Pushbuttons SB Series

NKK Pushbutton Switches

Standards
