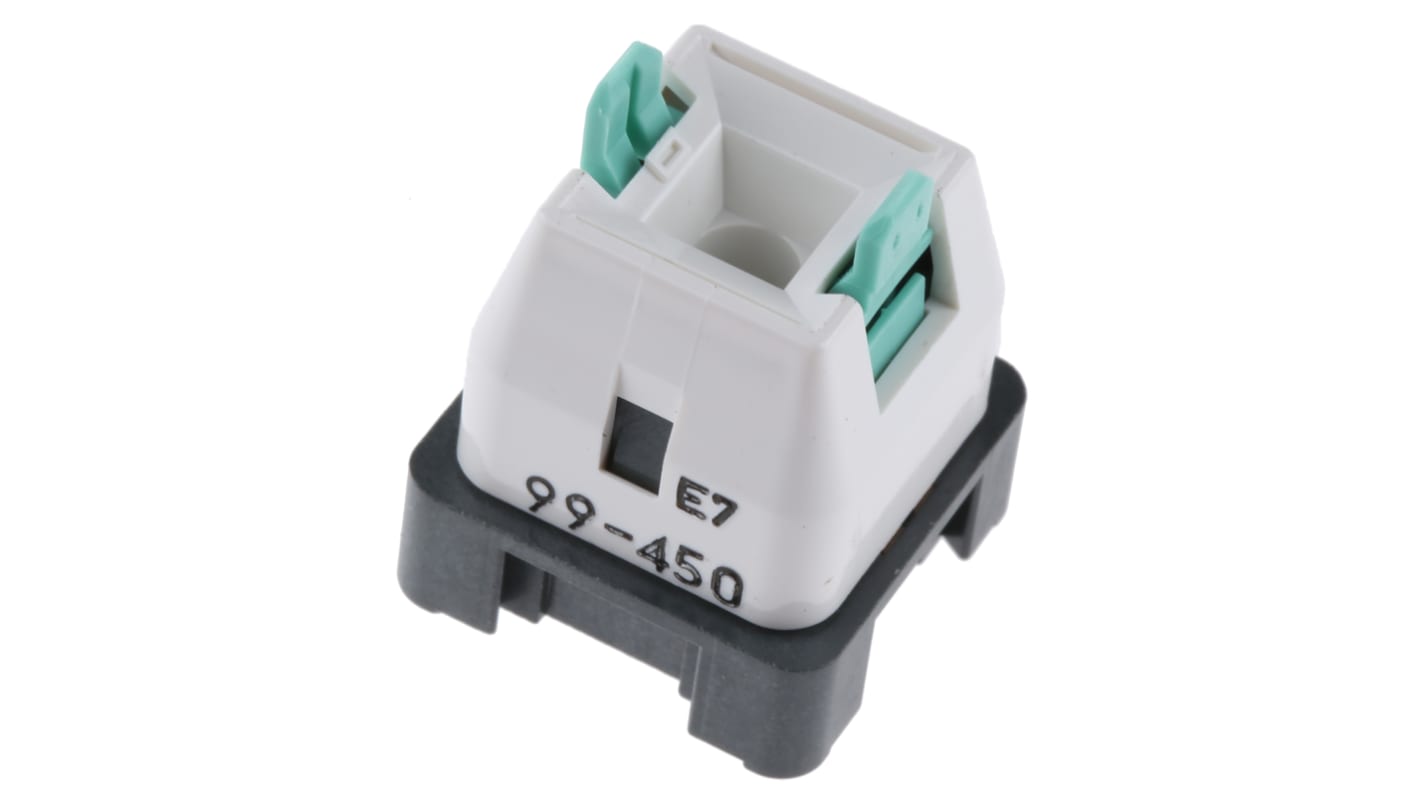

EAO 99 Series Push Button Switch, Momentary, SPST

View all Push Button Switches

Subtotal (1 unit)*

Kr. 196,42

(exc. VAT)

Kr. 245,52

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 5 unit(s), ready to ship
Units
Per unit
1 +Kr. 196,42

*price indicative

RS Stock No.:
228-3730
Mfr. Part No.:
99-450.837
Brand:
EAO
Find similar products by selecting one or more attributes.
Select all

Brand

EAO

Product Type

Push Button Switch

Switch Operation

Momentary

Series

99

Contact Configuration

SPST

Terminal Type

PCB Pin

Actuator Style

Push Button

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

55°C

Standards/Approvals

RoHS

Height

27.5mm

COO (Country of Origin):
CH

Illuminated Pushbutton PCB Mount Switches


These illuminated pushbutton PCB mount switches offer high performance and are available as both tactile and non-tactile versions. A variety of accessories are also available for these pushbutton switches. Typical applications include audio and instrumentation.

High performance switches, with gold plated contacts, for use in audio and instrumentation applications

Switches are single pole normally open format with a non-tactile option for ’silent’ operation (momentary types only)

Contact rating 100mA (42Vac)

Insulation resistance 1012Ω

Switch mechanical life 5 x 106 operations

Lens caps are available with either flat or concave tops which may be easily removed to mark legends either by printing or engraving

The option of coloured insert films further extends the flexibility of this range

The matching keyswitch completes the range by offering low level, ’anti-tamper’ security

Switch banks may be formed by joining units together using the coupling sections

Illumination is by T1 bi-pin lamp or LED
