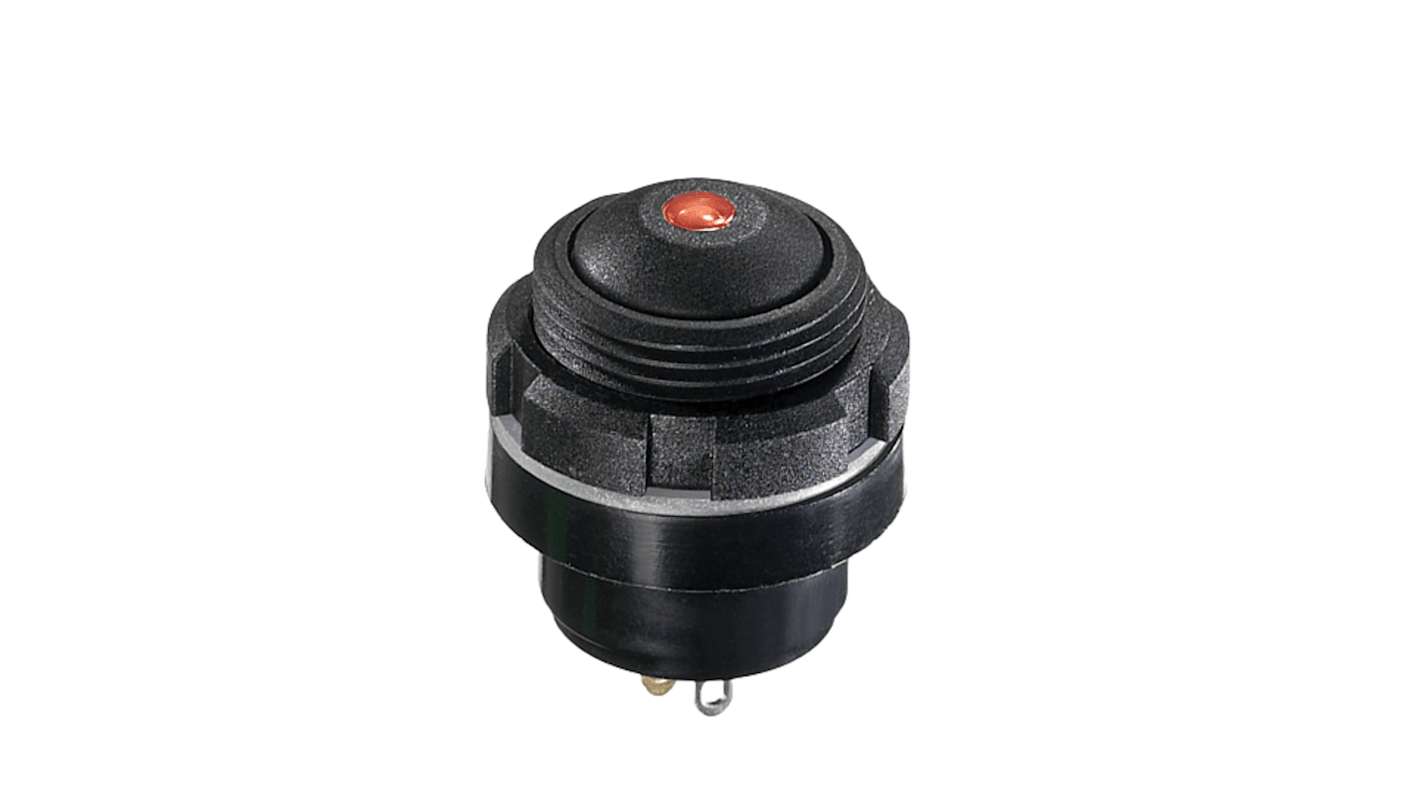

APEM IZ Series Illuminated Push Button Switch, Momentary, Panel, 16.1 mm Cutout, 1 NO, Red LED, IP67, 24 V

View all Push Button Switches

Subtotal (1 unit)*

Kr.327 93

(exc. VAT)

Kr.409 91

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 29 unit(s) shipping from 19. januar 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +Kr. 327,93

*price indicative

RS Stock No.:
267-5277
Mfr. Part No.:
IZPR1S422L0S
Brand:
APEM
Find similar products by selecting one or more attributes.
Select all

Brand

APEM

Product Type

Push Button Switch

Switch Operation

Momentary

Illuminated

Yes

Series

IZ

Panel Cutout Size

16.1 mm

Mount Type

Panel

Contact Configuration

1 NO

LED Colour

Red

IP Rating

IP67

Minimum Operating Temperature

-40°C

Actuator Style

Flat

Contact DC Voltage

24V

Maximum Operating Temperature

85°C

Switch Configuration

Off-On

Standards/Approvals

IEC 60529, test 11f, test 6d, IEC 512-4, IEC 512-6, test 6c

Height

27.9mm

Switch Contact Current

100 mA

COO (Country of Origin):
FR
The APEM pushbutton switches with curved actuator are made up of polyamide or a metal case. This pushbutton switches are available with latching action models which perform OFF to ON operation. This switch offers an excellent vibration resistance at 10 to 500 Hz.

Easy installation

Flat actuator for optional marking

200000 cycles low level or mechanical life

0.7 Nm maximum torque applied to nut
