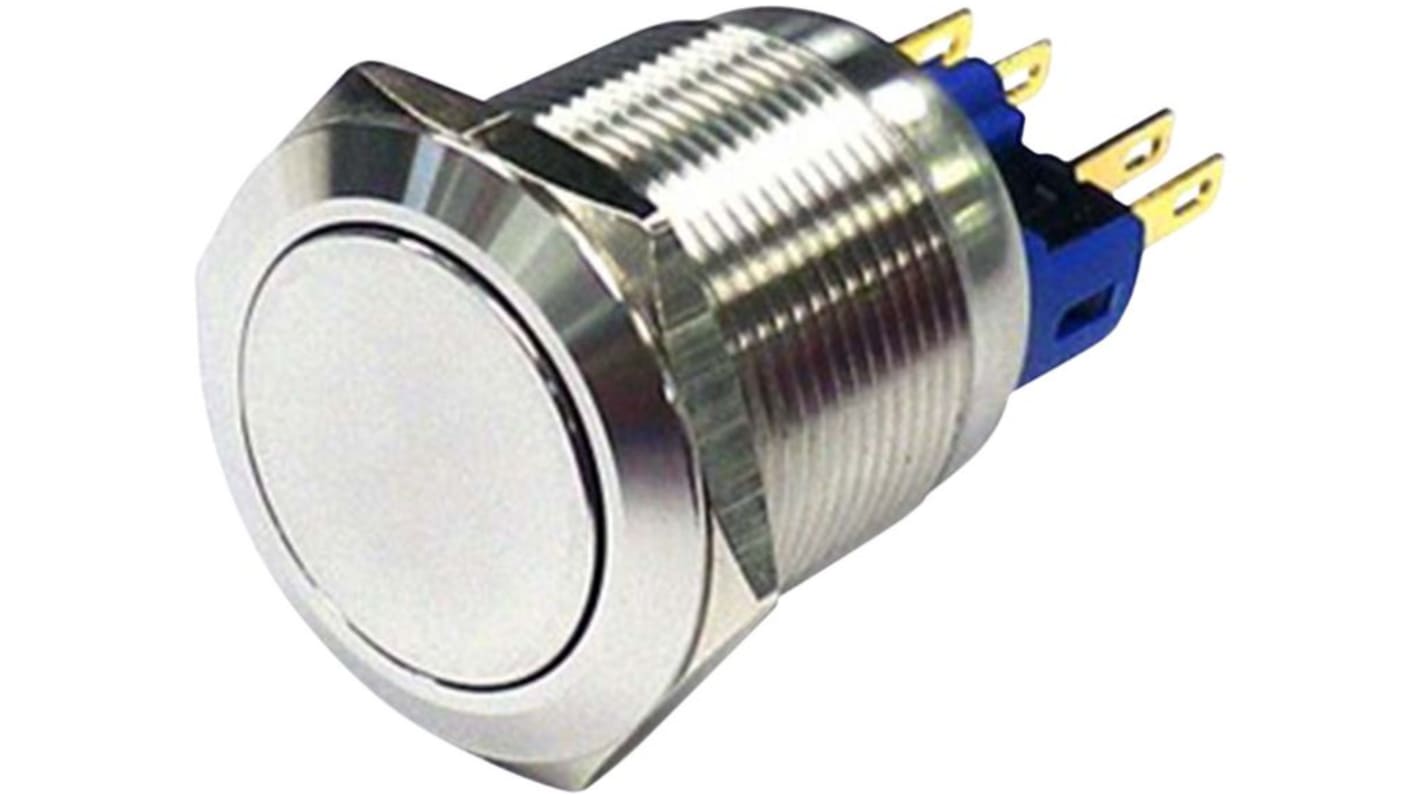

RND RND 210 Series Push Button Switch, On-On, Panel, 22 mm Cutout, 1 NO/1 NC, IP65 250 V ac
- RS Stock No.:
- 283-2548
- Distrelec Article No.:
- 301-01-408
- Mfr. Part No.:
- RND 210-00392
- Brand:
- RND
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
Kr. 172,21
(exc. VAT)
Kr. 215,26
(inc. VAT)
- RS Stock No.:
- 283-2548
- Distrelec Article No.:
- 301-01-408
- Mfr. Part No.:
- RND 210-00392
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Switch Operation | On-On | |
| Product Type | Push Button Switch | |
| Actuator Colour | Silver | |
| Illuminated | No | |
| Series | RND 210 | |
| Panel Cutout Size | 22 mm | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO/1 NC | |
| Terminal Type | Blade | |
| IP Rating | IP65 | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 55°C | |
| Switch Configuration | On-Mom | |
| Standards/Approvals | REACH, RoHS | |
| Length | 37.6mm | |
| Switch Contact Current | 5A | |
| Legend | Blank | |
| Select all | ||
|---|---|---|
Brand RND | ||
Switch Operation On-On | ||
Product Type Push Button Switch | ||
Actuator Colour Silver | ||
Illuminated No | ||
Series RND 210 | ||
Panel Cutout Size 22 mm | ||
Mount Type Panel | ||
Contact Configuration 1 NO/1 NC | ||
Terminal Type Blade | ||
IP Rating IP65 | ||
Contact AC Voltage 250V ac | ||
Actuator Style Round | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 55°C | ||
Switch Configuration On-Mom | ||
Standards/Approvals REACH, RoHS | ||
Length 37.6mm | ||
Switch Contact Current 5A | ||
Legend Blank | ||
- COO (Country of Origin):
- TW
The Anti Vandal Pushbutton Switch features a 22 mm bushing. With a contact rating of 5A at 250VAC. Its electrical life spans up to 50,000 cycles at full load. This anti vandal switch has gold over silver alloy contacts housed in a PBT base and a nickel plated brass nut.
IP65 protection
Momentary Function type switching
