RND RND 210 Series Illuminated Push Button Switch, Latching, Panel, 22 mm Cutout, 1 NO/1 NC, Blue LED, IP65 250 V ac
- RS Stock No.:
- 283-2565
- Distrelec Article No.:
- 301-01-438
- Mfr. Part No.:
- RND 210-00412
- Brand:
- RND
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
Kr. 415,11
(exc. VAT)
Kr. 518,89
(inc. VAT)
- RS Stock No.:
- 283-2565
- Distrelec Article No.:
- 301-01-438
- Mfr. Part No.:
- RND 210-00412
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Product Type | Push Button Switch | |
| Actuator Colour | Silver | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Panel Cutout Size | 22 mm | |
| Series | RND 210 | |
| Mount Type | Panel | |
| Contact Configuration | 1 NO/1 NC | |
| LED Colour | Blue | |
| Terminal Type | Blade | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -20°C | |
| Contact AC Voltage | 250V ac | |
| Actuator Style | Round | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 55°C | |
| Switch Contact Current | 5A | |
| Length | 42.6mm | |
| Height | 37.6mm | |
| Standards/Approvals | RoHS, REACH | |
| Legend | Ring | |
| Select all | ||
|---|---|---|
Brand RND | ||
Product Type Push Button Switch | ||
Actuator Colour Silver | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cutout Size 22 mm | ||
Series RND 210 | ||
Mount Type Panel | ||
Contact Configuration 1 NO/1 NC | ||
LED Colour Blue | ||
Terminal Type Blade | ||
IP Rating IP65 | ||
Minimum Operating Temperature -20°C | ||
Contact AC Voltage 250V ac | ||
Actuator Style Round | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 55°C | ||
Switch Contact Current 5A | ||
Length 42.6mm | ||
Height 37.6mm | ||
Standards/Approvals RoHS, REACH | ||
Legend Ring | ||
- COO (Country of Origin):
- TW

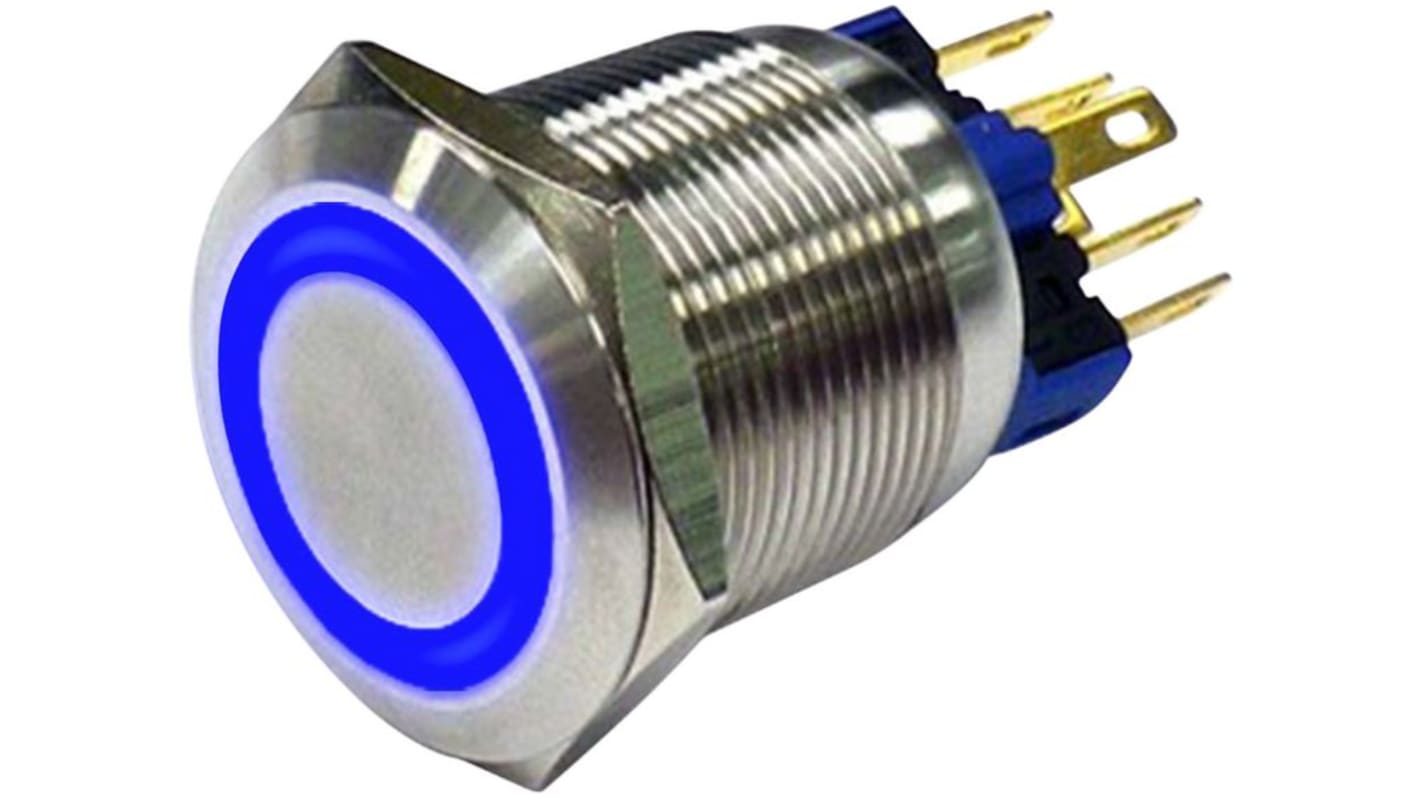

The Illuminated Anti Vandal Pushbutton Switch features a 22 mm bushing. With a contact rating of 5A at 250VAC. Its electrical life spans up to 50,000 cycles at full load. This anti vandal switch has silver alloy with outer layer in gold contacts housed in a PA base and a nickel plated brass nut.
IP65 protection
Latching function type switching
