Eaton RMQ Titan M22 Series Illuminated Push Button Switch, Panel, 22 mm Cutout, 1 NO/1 NC, IP66

RS Stock No.:: 810-3784
Distrelec Article No.:: 304-01-712
Mfr. Part No.:: 216509 M22-DDL-GR-X1/X0/K11/230-W
Brand:: Eaton

Eaton RMQ Titan M22 Series Illuminated Push Button Switch, Panel, 22 mm Cutout, 1 NO/1 NC, IP66

Bulk discount available

Subtotal (1 unit)*

Kr.692 11

(exc. VAT)

Kr.865 14

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

72 unit(s) ready to ship
Plus 24 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	Kr. 692,11
5 - 11	Kr. 670,84
12 +	Kr. 649,22

*price indicative

RS Stock No.:: 810-3784
Distrelec Article No.:: 304-01-712
Mfr. Part No.:: 216509 M22-DDL-GR-X1/X0/K11/230-W
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Push Button Switch
	Illuminated	Yes
	Cutout Diameter	22mm
	Series	RMQ Titan M22
	Push Button Actuation	Momentary
	Mount Type	Panel
	Contact Configuration	1 NO/1 NC
	Push Button Style	Round
	Terminal Type	Screw
	IP Rating	IP66
	Minimum Operating Temperature	-25°C
	Push Button Diameter	29.7mm
	Maximum Operating Temperature	70°C
	Push Button Material	Plastic
	Standards/Approvals	CE marking, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, UL 508, IEC/EN 60947-5
	Body Material	Plastic

	Select all
	Brand Eaton
	Product Type Push Button Switch
	Illuminated Yes
	Cutout Diameter 22mm
	Series RMQ Titan M22
	Push Button Actuation Momentary
	Mount Type Panel
	Contact Configuration 1 NO/1 NC
	Push Button Style Round
	Terminal Type Screw
	IP Rating IP66
	Minimum Operating Temperature -25°C
	Push Button Diameter 29.7mm
	Maximum Operating Temperature 70°C
	Push Button Material Plastic
	Standards/Approvals CE marking, CSA-C22.2 No. 94-91, CSA-C22.2 No. 14-05, UL 508, IEC/EN 60947-5
	Body Material Plastic

COO (Country of Origin):: DE

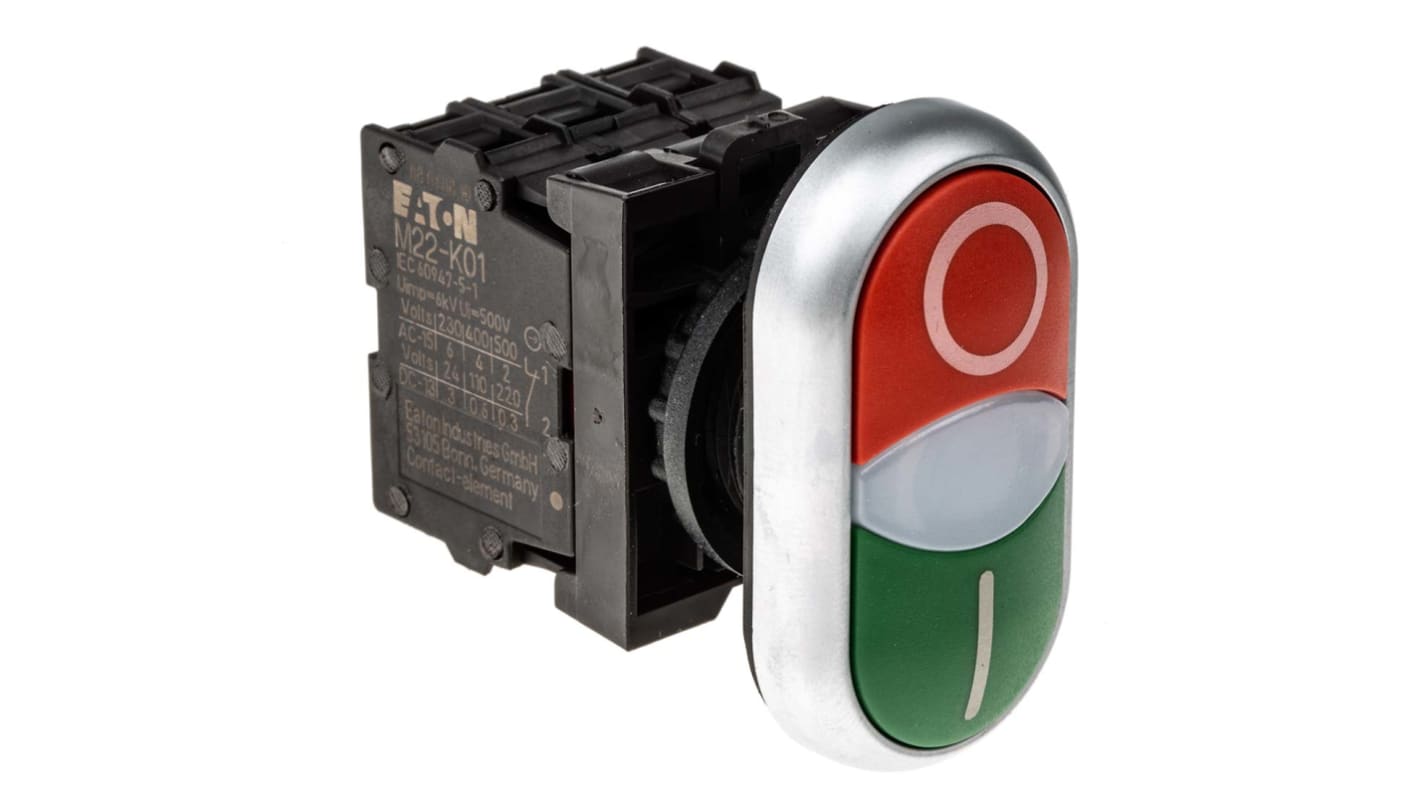

Eaton RMQ Titan Push Button, Double-Actuator Type, 22mm Cutout Diameter - RMQ-Titan / M22 Series - 216509 M22-DDL-GR-X1/X0/K11/230-W

This double-actuator push button from Eaton gives you safe, precise control over the flow of power to your equipment. Clear red and green labelling help avoid operational errors, and for maximum safety, the momentary actuation type means the circuit is only complete when pressure is applied to the button. This prevents workplace accidents by ensuring dangerous machinery can only be started up when a user is present to supervise it. You'll frequently find buttons like this used with industrial roller doors, electric drills and emergency-stop mechanisms on heavy machinery.

Features & Benefits

• Mechanical durability of 1 million operations for a long service life

• Screw terminal type offers straightforward installation

• Operating temperature range of -25°C to +70°C for use in demanding environments

• Durable titanium bezel withstands the stresses of heavy-industrial use and damp environments

Is it safe to use this product around water?

Yes – this push button has an IP65 rating, indicating that it's waterproof against low-pressure jets from all directions. You can use it with confidence in situations where exposure to water is likely. It's also fully dust-tight, so suited to challenging industrial settings.

Note

Eaton formerly known as Moeller
