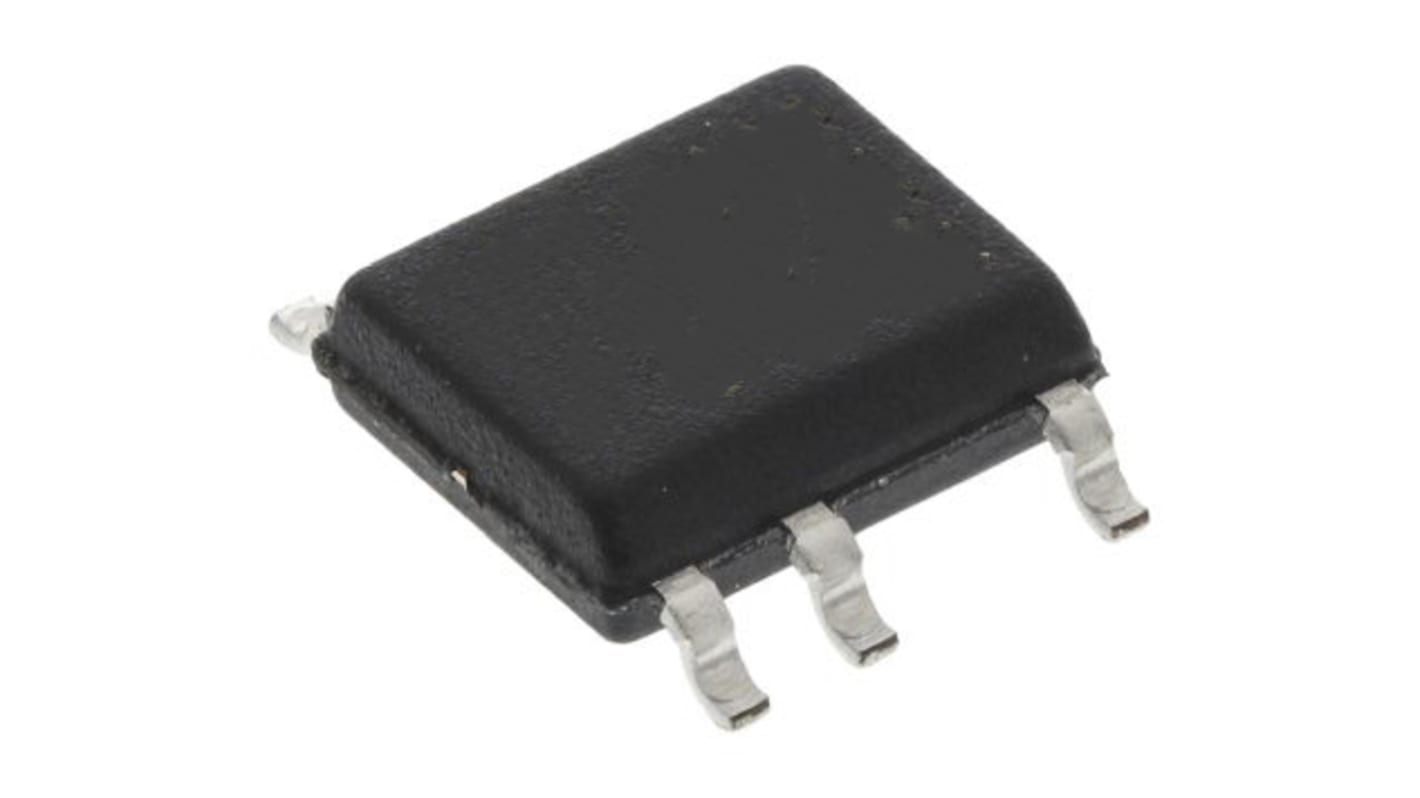

    onsemi NCP12400CBAAB0DR2G, PWM Controller, 28 V, 65 kHz 7-Pin, SOIC

    Subtotal (1 reel of 2500 units)**

    Kr. 10 982,50

    (exc. VAT)

    Kr. 13 727,50

    (inc. VAT)

    Add to Basket
    Select or type quantity
    Available to back order for despatch when stock is available*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Reel**
    2500 +Kr. 4,393Kr. 10 982,50

    **price indicative

    RS Stock No.:
    178-4347
    Mfr. Part No.:
    NCP12400CBAAB0DR2G
    Brand:
    onsemi
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    onsemi

    Maximum Switching Frequency

    65 kHz

    Output Voltage

    14 V

    Output Current

    300 mA, 500 mA

    Control Method

    Current

    Number of Outputs

    1

    Mounting Type

    Surface Mount

    Fall Time

    60ns

    Package Type

    SOIC

    Rise Time

    70ns

    Pin Count

    7

    Topology

    Flyback

    Maximum Duty Cycle

    85%

    Dimensions

    5 x 4 x 1.5mm

    PWM Controller Type

    Current Mode

    Length

    5mm

    Width

    4mm

    Height

    1.5mm

    Maximum Operating Temperature

    +150 °C

    Maximum Operating Supply Voltage

    28 V

    Minimum Operating Temperature

    -40 °C
