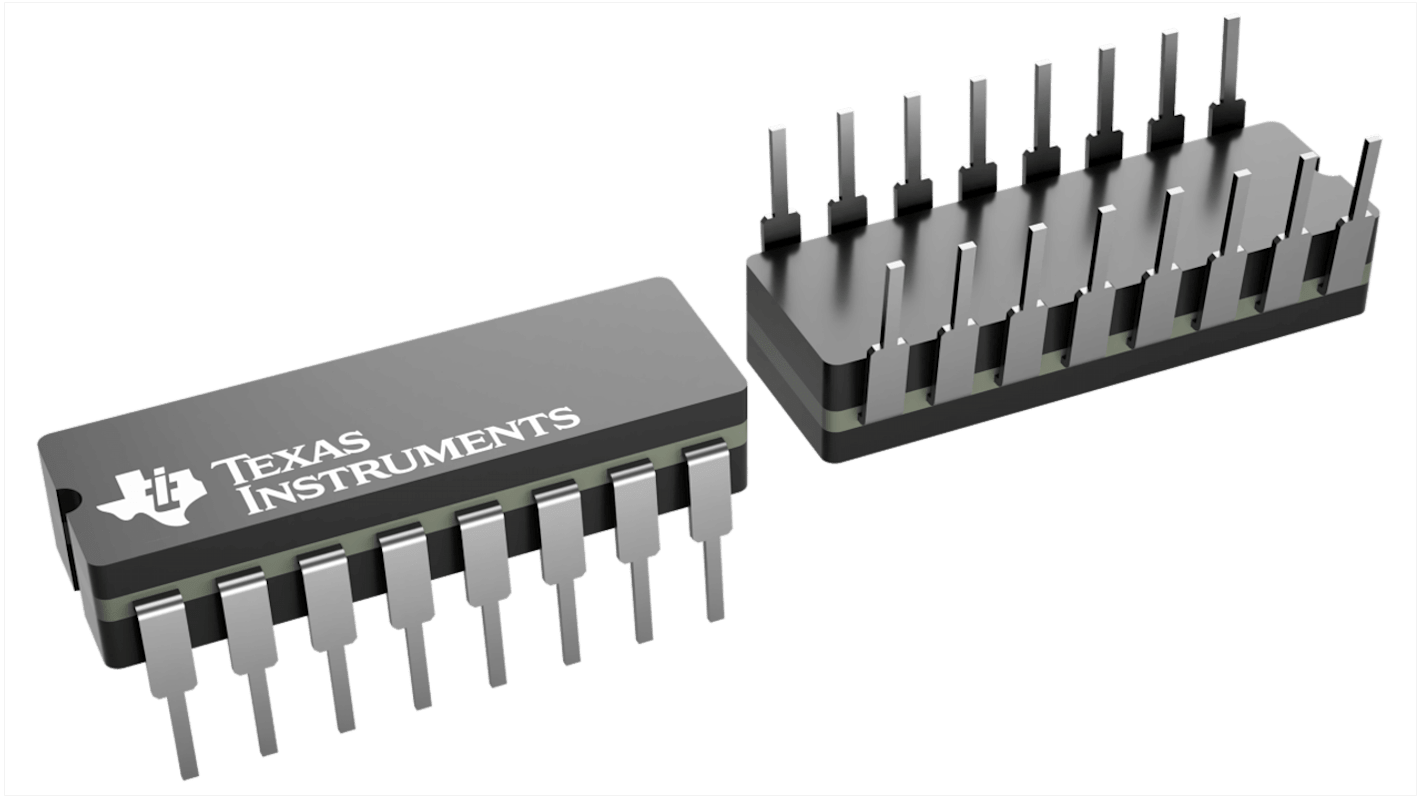

Texas Instruments UC1525AJ 2 PWM Controller, 500 kHz 125V 16-Pin, CDIP
- RS Stock No.:
- 197-7617
- Mfr. Part No.:
- UC1525AJ
- Brand:
- Texas Instruments
Subtotal (1 unit)*
Kr. 343,77
(exc. VAT)
Kr. 429,71
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- Plus 47 unit(s) shipping from 20 July 2026
- Plus 725 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 343,77 |
*price indicative
- RS Stock No.:
- 197-7617
- Mfr. Part No.:
- UC1525AJ
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | PWM Controller | |
| Maximum Switching Frequency | 500kHz | |
| Supply Current | 4mA | |
| Zero Power Detection | No | |
| Output Current | 500mA | |
| Mount Type | Through Hole | |
| Package Type | CDIP | |
| Minimum Supply Voltage | -55V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 125V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Duty Cycle | 49% | |
| PWM Controller Type | Voltage Mode | |
| Maximum Operating Temperature | 150°C | |
| Length | 19.56mm | |
| Series | UC | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type PWM Controller | ||
Maximum Switching Frequency 500kHz | ||
Supply Current 4mA | ||
Zero Power Detection No | ||
Output Current 500mA | ||
Mount Type Through Hole | ||
Package Type CDIP | ||
Minimum Supply Voltage -55V | ||
Pin Count 16 | ||
Maximum Supply Voltage 125V | ||
Minimum Operating Temperature -55°C | ||
Maximum Duty Cycle 49% | ||
PWM Controller Type Voltage Mode | ||
Maximum Operating Temperature 150°C | ||
Length 19.56mm | ||
Series UC | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
