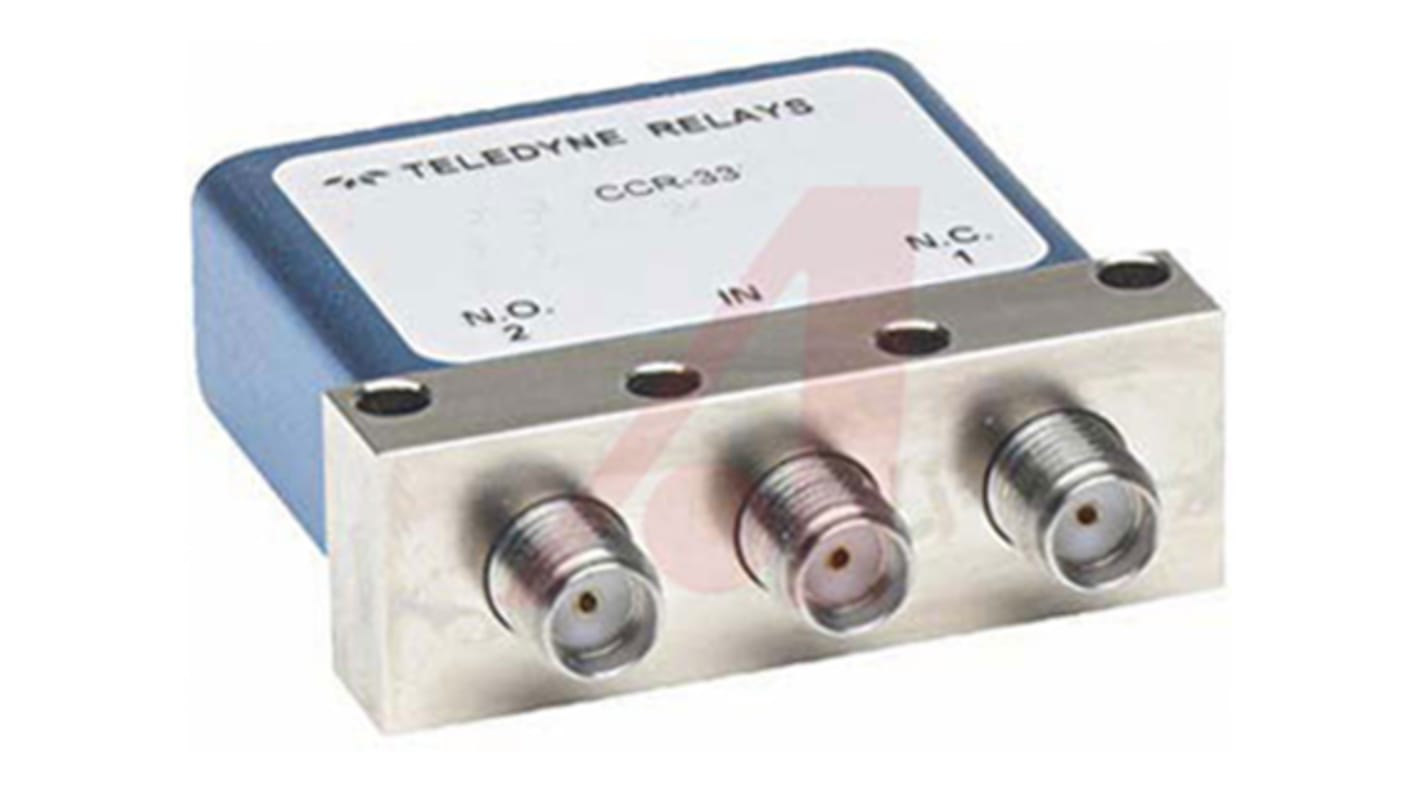

Name: Teledyne RF Switch, SMA Female Connector SPDT, 18 GHz Max, 60 dB Isolation, 20 ms, 50Ω Output
Brand: Teledyne
SKU: 885-8557
Price: 3158.01 NOK
Availability: OutOfStock

Specifications

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Teledyne
	Product Type	RF Switch
	Switching Speed	20ms
	Port to Port Isolation	60dB
	Maximum Insertion Loss	0.5dB
	Contact Configuration	SPDT
	Connector Type	SMA Female
	Output Impedance	50Ω
	Height	46.23mm
	Minimum Operating Temperature	-40°C
	Contact DC Voltage	12V dc
	Contact Current	200mA
	Length	38.1mm
	Maximum Operating Temperature	65°C
	Series	CCR-33
	Maximum Frequency	18GHz
	Standards/Approvals	No
	Width	13.21 mm
	Minimum Frequency	0GHz

	Select all
	Brand Teledyne
	Product Type RF Switch
	Switching Speed 20ms
	Port to Port Isolation 60dB
	Maximum Insertion Loss 0.5dB
	Contact Configuration SPDT
	Connector Type SMA Female
	Output Impedance 50Ω
	Height 46.23mm
	Minimum Operating Temperature -40°C
	Contact DC Voltage 12V dc
	Contact Current 200mA
	Length 38.1mm
	Maximum Operating Temperature 65°C
	Series CCR-33
	Maximum Frequency 18GHz
	Standards/Approvals No
	Width 13.21 mm
	Minimum Frequency 0GHz

Non Compliant with RoHS

COO (Country of Origin):: TW

Teledyne - CCR33 Series

Professional range of Teledyne solid state relays from the CCR series. The relays are designed to switch a microwave signal from a common input to either of the two outputs.

SPDT

Various voltages available

Failsafe actuator

Teledyne RF Switch, SMA Female Connector SPDT, 18 GHz Max, 60 dB Isolation, 20 ms, 50Ω Output

Teledyne - CCR33 Series
