    IDEM M-TD Safety Interlock Switch, Keyed, Metal

    RS Stock No.:
    185-7249
    Mfr. Part No.:
    M-TD-11 (A101, B202)
    Brand:
    IDEM
    IDEM
    View all Safety Interlock Switches
    Available to back order for despatch 26.09.2022
    Add to Basket
    Units

    Added

    Price Each

    kr 4 730,58

    (exc. VAT)

    kr 5 913,22

    (inc. VAT)

    UnitsPer unit
    1 +kr 4 730,58
    RS Stock No.:
    185-7249
    Mfr. Part No.:
    M-TD-11 (A101, B202)
    Brand:
    IDEM
    COO (Country of Origin):
    GB

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

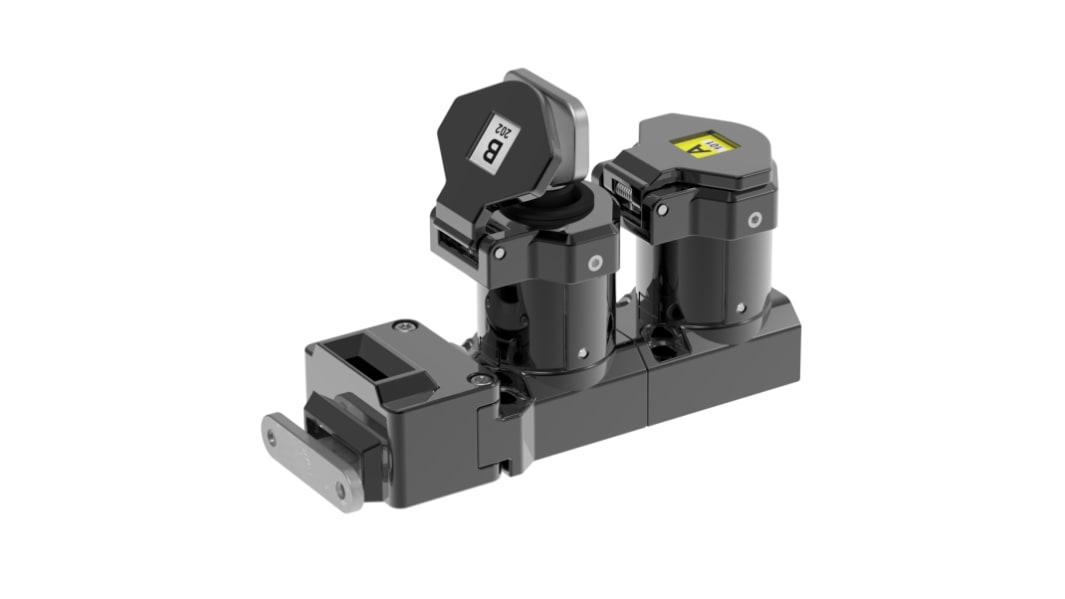

    The M-TD-11 has 2 sequential keys - one key trapped, one key free - actuator unlocked. When the actuator is unlocked the "access" key can be taken "on the person" into the guarded area without fear of the "trapped" key being removed and the equipment restarted. The M-TD-11 Tongue Interlock works on the principle that when the "access" key is "trapped" the actuator cannot be removed and is locked in position. Only when the "free" key from the Isolator or Key Exchange System is inserted into the second barrel can the "access" key be removed thereby allowing the actuator to be removed. Only when the isolator key is returned to the Isolator Switch can power then be re-applied to the guarded area. With a die-cast body with mirror polished finish the M-TD-11 Tongue Interlock is suitable for SIP and CIP cleaning processes with high pressure hosing with detergents at high temperatures.



    Specifications

    AttributeValue
    Lock StyleKeyed
    Lock TypeInterlock
    Connection TypeScrew
    Housing MaterialMetal
    Number of Head Directions2
    SeriesM-TD
    Length148mm
    Maximum Operating Temperature+50°C
    Depth109mm
    Width44mm
    Minimum Operating Temperature-25°C
