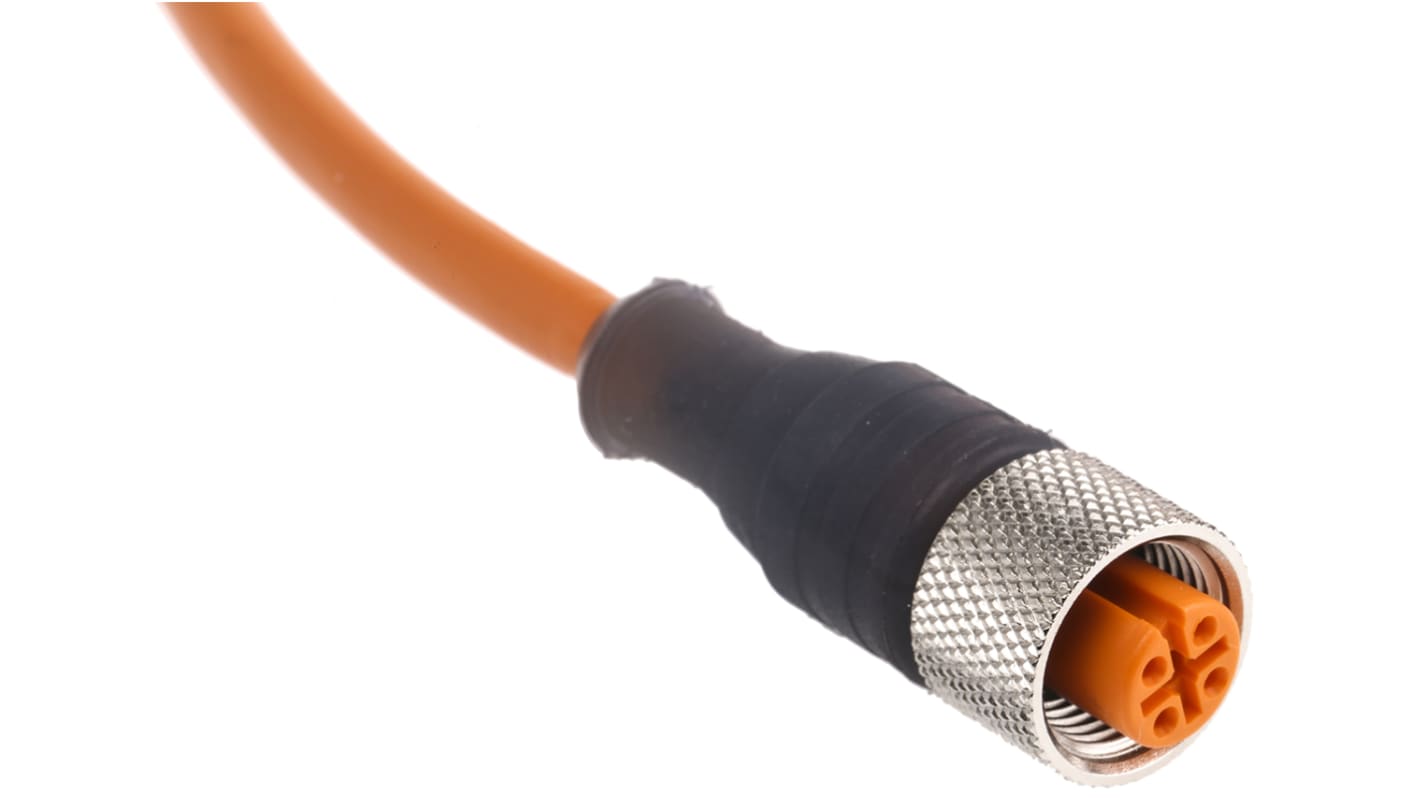

Lumberg Automation Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 161-6915
- Mfr. Part No.:
- RKT4-07/5
- Brand:
- Lumberg Automation
12 In stock for same day dispatch
60 available from Europe for delivery within 2 working day(s)
Added
Price Each
Kr. 221,87
(exc. VAT)
Kr. 277,34
(inc. VAT)
| Units | Per unit |
| 1 - 4 | Kr. 221,87 |
| 5 - 24 | Kr. 215,49 |
| 25 + | Kr. 206,58 |
- RS Stock No.:
- 161-6915
- Mfr. Part No.:
- RKT4-07/5
- Brand:
- Lumberg Automation
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Belden Lumberg Automation Sensor Actuator Cable, 230V AC/DC Operating Voltage, 5m Length - RKT Series - RKT4-07/5
Looking for a trusty messenger to carry signals between your equipment and your sensors? Choose this sensor actuator cable from Belden Lumberg Automation. It's unterminated on one end, so you can choose an adapter that suits your setup. The other end of the cable has an M12 connector that makes it a walk in the park to link up devices. As the copper wires are highly conductive and resistant to corrosion, you get the zippy transfers needed to keep your processes running strong.
Features & Benefits
• Minimum bend radius of 10 times the outer diameter in a flexible installation for ease of routing around corners
• Wide operating temperature range between -40°C and +90°C
• Wide operating temperature range between -40°C and +90°C
Applications
• Industrial automation
• Machine building
• Transportation industry
• Machine building
• Transportation industry
How many times can I disconnect and reconnect this cable?
The cable withstands up to 100 mating cycles, so you can trust it to last.
Specifications
Attribute | Value |
|---|---|
| Series | RKT |
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 4 |
| Length | 5m |
| Sheath Material | PVC |
| Sheath Colour | Orange |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67 |
| Cable Shape | Round |
| Oil Resistant | Yes |
| Insulation Material | PVC |
| Conductor Resistance | = 10 mΩ |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 5mm |
| Standards Met | UL |
| Maximum Operating Temperature | +90°C |
| Operating Temperature Range | -40 → +90 °C |
| Conductor Material | Copper |
| Minimum Bend Radius | ? 5 x D |
| Minimum Operating Temperature | -25°C |
