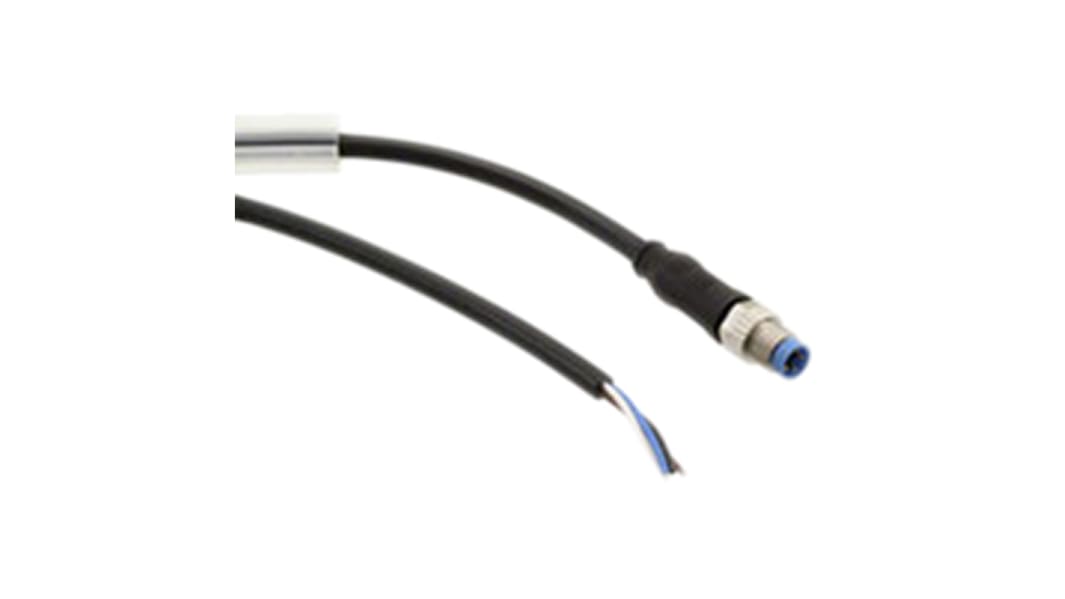

    TE Connectivity Straight Male 4 way M8 to Unterminated Sensor Actuator Cable, 1.5m

    RS Stock No.:
    162-1619
    Mfr. Part No.:
    1-2273002-1
    Brand:
    TE Connectivity
    TE Connectivity
    View all Sensor & Actuator Cables
    575 In stock for same day dispatch
    Add to Basket
    Units

    Added

    Price Each (In a Box of 25)

    kr 104,91

    (exc. VAT)

    kr 131,14

    (inc. VAT)

    UnitsPer unitPer Box*
    25 +kr 104,91kr 2 622,75
    *price indicative
    RS Stock No.:
    162-1619
    Mfr. Part No.:
    1-2273002-1
    Brand:
    TE Connectivity
    COO (Country of Origin):
    DE

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    M8 Pigtail Connector


    From TE Connectivity, the M8 Pigtail Connector cable assembly is ideal for neat and secure connections in sensor and automation applications. With a screw terminal connection that offers a high degree of environmental protection this cable assembly is well suited to industrial purposes. The “pigtail” wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.

    The TE Connectivity range of M8 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.

    Features and Benefits:
    • Compact and Reliable Connection
    • Environmental Protection
    • High Bandwidth

    Applications:
    • Sensor and Actuator
    • Factory Automation
    • I/O Boxes


    Specifications

    AttributeValue
    Connector 1M8
    Connector 2Unterminated
    Connector 1 GenderMale
    Connector 1 Number of Contacts4
    Connector 1 OrientationStraight
    CodingA
    Connector 1 Housing GenderMale
    Shielded/UnshieldedUnshielded
    Length1.5m
    Sheath MaterialPUR
    Number of Cores4
    Sheath ColourBlack
    IP RatingIP65, IP67
    Standards MetCSA, ELV Compliant, EN 60529, RoHS Compliant, UL
    Cable ShapeMulticore
    Operating Temperature Range-30 → +80 °C
    American Wire Gauge24 AWG
    Cross Sectional Area0.25 mm²
    Minimum Bend Radius48 mm
    Insulation MaterialPVC
    Current Rating4 A
    Voltage Rating30 V ac/dc
    Minimum Operating Temperature-30°C
    Outer Diameter4.8mm
    Maximum Operating Temperature+80°C
