RS PRO Straight Female 8 way M12 to Straight Male 8 way M12 Sensor Actuator Cable, 5m

RS Stock No.:: 206-7659
Distrelec Article No.:: 304-04-448
Brand:: RS PRO

RS PRO Straight Female 8 way M12 to Straight Male 8 way M12 Sensor Actuator Cable, 5m

Bulk discount available

Subtotal (1 unit)*

Kr.633 70

(exc. VAT)

Kr.792 12

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

116 unit(s) ready to ship
Plus 17 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	Kr. 633,70
5 - 9	Kr. 620,96
10 - 24	Kr. 601,97
25 - 49	Kr. 557,81
50 +	Kr. 506,91

*price indicative

RS Stock No.:: 206-7659
Distrelec Article No.:: 304-04-448
Brand:: RS PRO

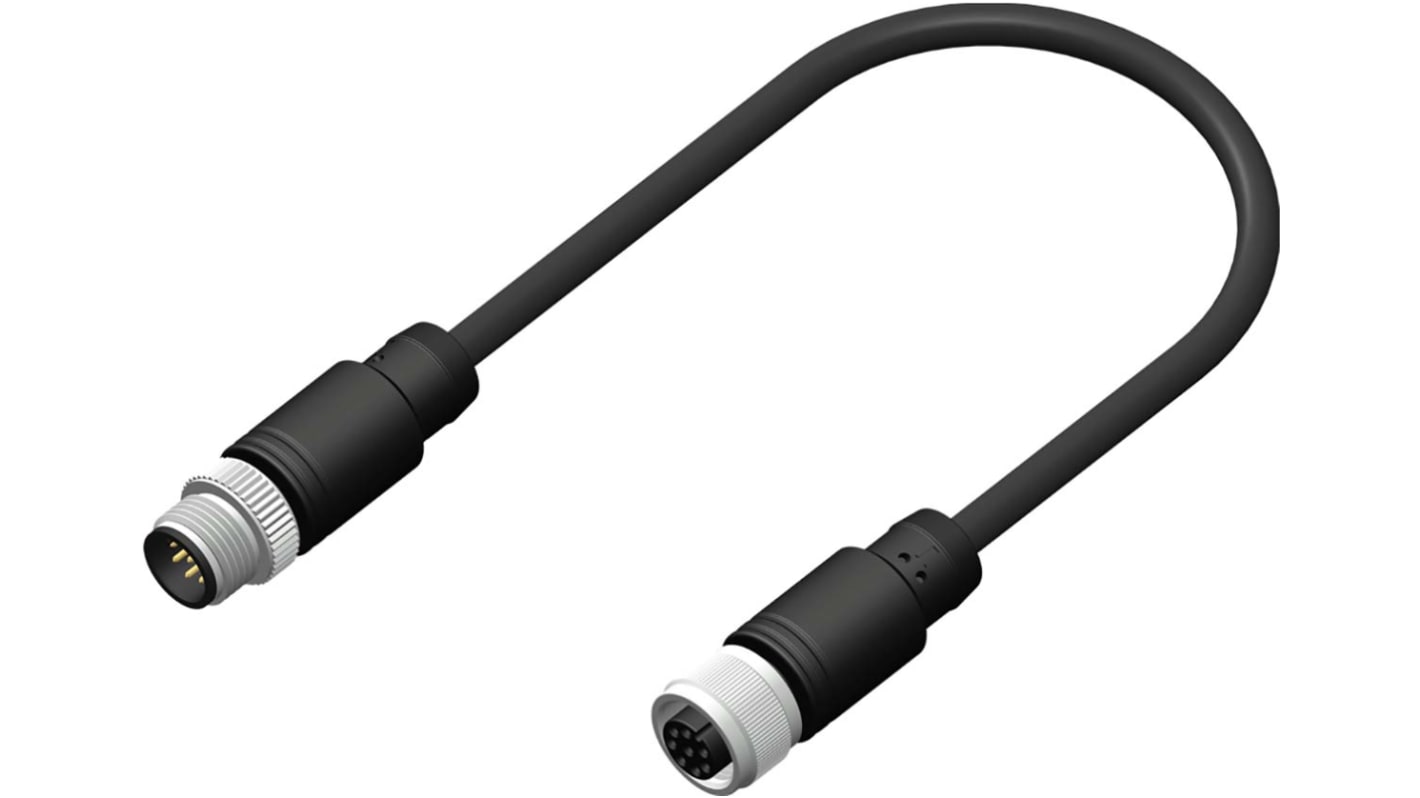

RS PRO M12 Connector Cable Assembly, 5 m

Introducing the range of RS PRO Cables, ideal for use with industrial sensor and automation equipment. This cable has been designed with a secure coupling nut and a male to female connection, allowing complete flexibility for connection. The 5 m PUR multi-strand cable is ultra-durable, protecting the internal wires, and easy to install, making it an ideal solution where secure and reliable data transference is required.

Features and Benefits:

This high-performance RS PRO cable comes with an M12 connector, designed with a brass nickel-plated coupling nut male to female connection, allowing complete flexibility for connection

The wire is un-terminated and has an insulation resistance of less than 100 MΩ

The 5 m PUR cable is ultra-durable, making it ideal for use in difficult environments with extreme temperatures, UV exposure or where contact with chemicals or oils could occur

It is quick and easy to install, making it user-friendly and saving on valuable installation time

This type of industrial cable is most suited to sensing and instrumentation applications in industrial environments

Applications:

Industrial automation cable assemblies are versatile products that transmit electrical power to machinery or peripheral components, like sensors. They are generally designed to withstand extreme temperature changes and moisture, exposure to chemicals, oils and UV, as well as any abrasions or wear that can be caused by machinery vibration to ensure the protection of the internal wires. These types of cable assemblies are most commonly found in:

Aerospace and aviation

Construction machinery and industrial engineering

Industrial automation and manufacturing

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Number of Cores	8
	Cross Sectional Area	0.25 mm²
	Sheath Colour	Black
	Sheath Material	PUR
	Length	5m
	Connector 1 Gender	Female
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 2 Orientation	Straight
	Connector 2 Housing Gender	Male
	Connector 2 Number of Contacts	8
	Connector 2 Gender	Male
	Connector 2	M12
	Current Rating	2 A
	Voltage Rating	30 V
	IP Rating	IP67
	Maximum Operating Temperature	+75°C
	Connector 1 Housing Gender	Female
	Outer Diameter	6.8mm
	Insulation Material	PUR
	Cable Shape	Multicore
	Minimum Operating Temperature	-25°C
	Conductor Material	Copper
	Operating Temperature Range	-25 °C→+75 °C

	Select all
	Brand RS PRO
	Number of Cores 8
	Cross Sectional Area 0.25 mm²
	Sheath Colour Black
	Sheath Material PUR
	Length 5m
	Connector 1 Gender Female
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 2 Orientation Straight
	Connector 2 Housing Gender Male
	Connector 2 Number of Contacts 8
	Connector 2 Gender Male
	Connector 2 M12
	Current Rating 2 A
	Voltage Rating 30 V
	IP Rating IP67
	Maximum Operating Temperature +75°C
	Connector 1 Housing Gender Female
	Outer Diameter 6.8mm
	Insulation Material PUR
	Cable Shape Multicore
	Minimum Operating Temperature -25°C
	Conductor Material Copper
	Operating Temperature Range -25 °C→+75 °C
