- RS Stock No.:
- 332-470
- Mfr. Part No.:
- T22205BABE
- Brand:
- Arcolectric (Bulgin) Ltd
5412 In stock for same day dispatch
Added
Price Each
Kr. 22,66
(exc. VAT)
Kr. 28,32
(inc. VAT)
Units | Per unit |
1 + | Kr. 22,66 |
- RS Stock No.:
- 332-470
- Mfr. Part No.:
- T22205BABE
- Brand:
- Arcolectric (Bulgin) Ltd
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details
Arcolectric Voltage Selector Slide Switches
2 position, panel mount
Designed to select the operating voltage in dual voltage equipment, using transformers with two independent windings which can be connected in parallel or series for 115 V or 230 V supplies.
Snap-in type (stock no. 319-900) is push fit into panel, moulded in black with a red slider marked 115//230, with 0·11 in (110) terminals suitable for push on receptacles or soldering

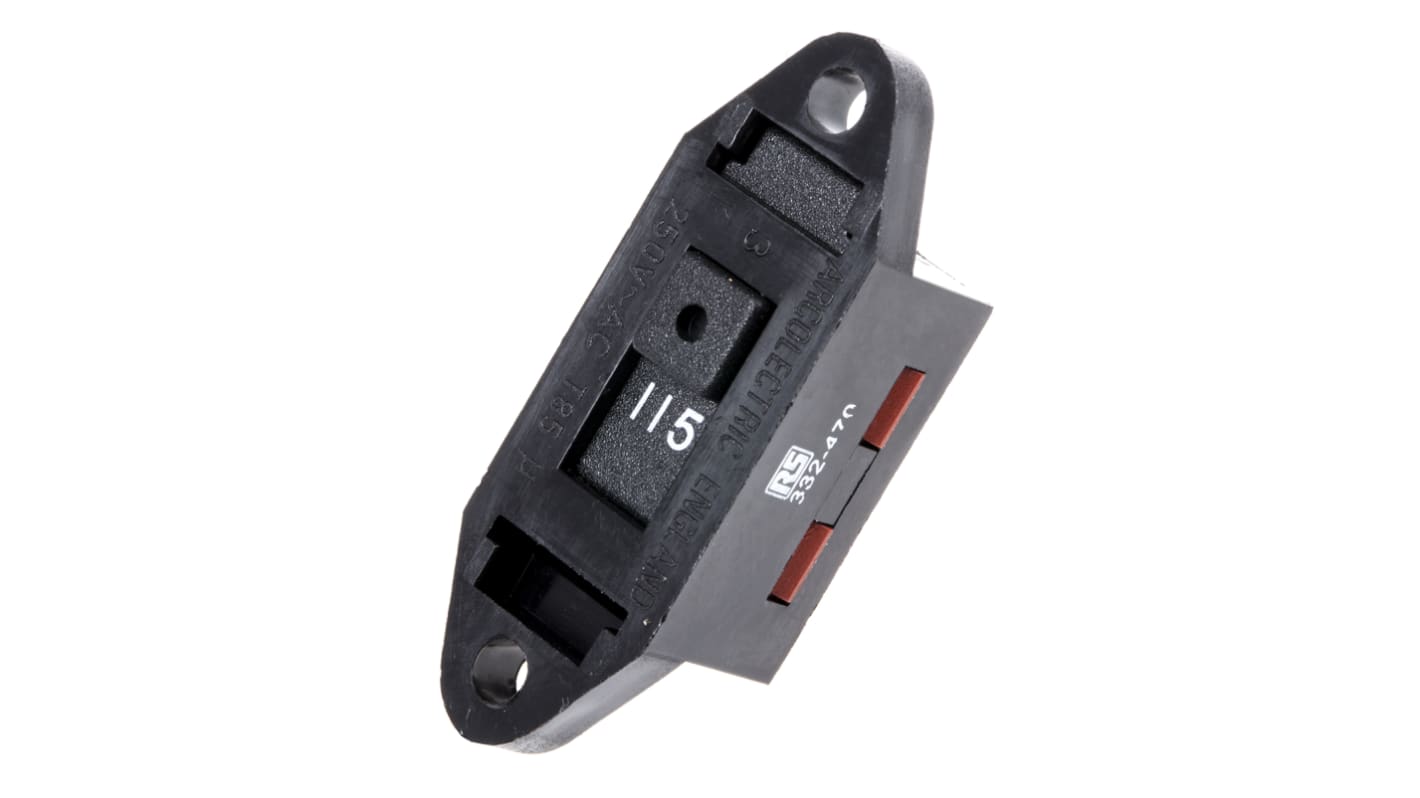

Chassis type (stock no. 332-470) mounts behind panels; moulded in black with a black slider marked 115//230, with solder tag terminals
Silver alloy contacts
Nylon 6.6 actuator and case
Designed to select the operating voltage in dual voltage equipment, using transformers with two independent windings which can be connected in parallel or series for 115 V or 230 V supplies.
Snap-in type (stock no. 319-900) is push fit into panel, moulded in black with a red slider marked 115//230, with 0·11 in (110) terminals suitable for push on receptacles or soldering
Chassis type (stock no. 332-470) mounts behind panels; moulded in black with a black slider marked 115//230, with solder tag terminals
Silver alloy contacts
Nylon 6.6 actuator and case
Note
* In accordance with ENEC
Approvals
ENEC, UL, CSA
Approvals
ENEC; UL; CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Mounting Type | Panel Mount |
Contact Current Rating | 16 A @ 250 V ac |
Terminal Type | Solder |
Actuator Type | Slide |
Contact Resistance | 100mΩ |
Contact Material | Silver |
Actuator Material | Nylon |
