- RS Stock No.:
- 175-9674
- Mfr. Part No.:
- S202031MS02Q
- Brand:
- C & K
44 In stock for same day dispatch
Added
Price Each
Kr. 32,23
(exc. VAT)
Kr. 40,29
(inc. VAT)
Units | Per unit |
1 - 24 | Kr. 32,23 |
25 - 99 | Kr. 31,13 |
100 - 249 | Kr. 30,03 |
250 - 499 | Kr. 28,82 |
500 + | Kr. 27,72 |
- RS Stock No.:
- 175-9674
- Mfr. Part No.:
- S202031MS02Q
- Brand:
- C & K
Technical Reference
Legislation and Compliance
Product Details

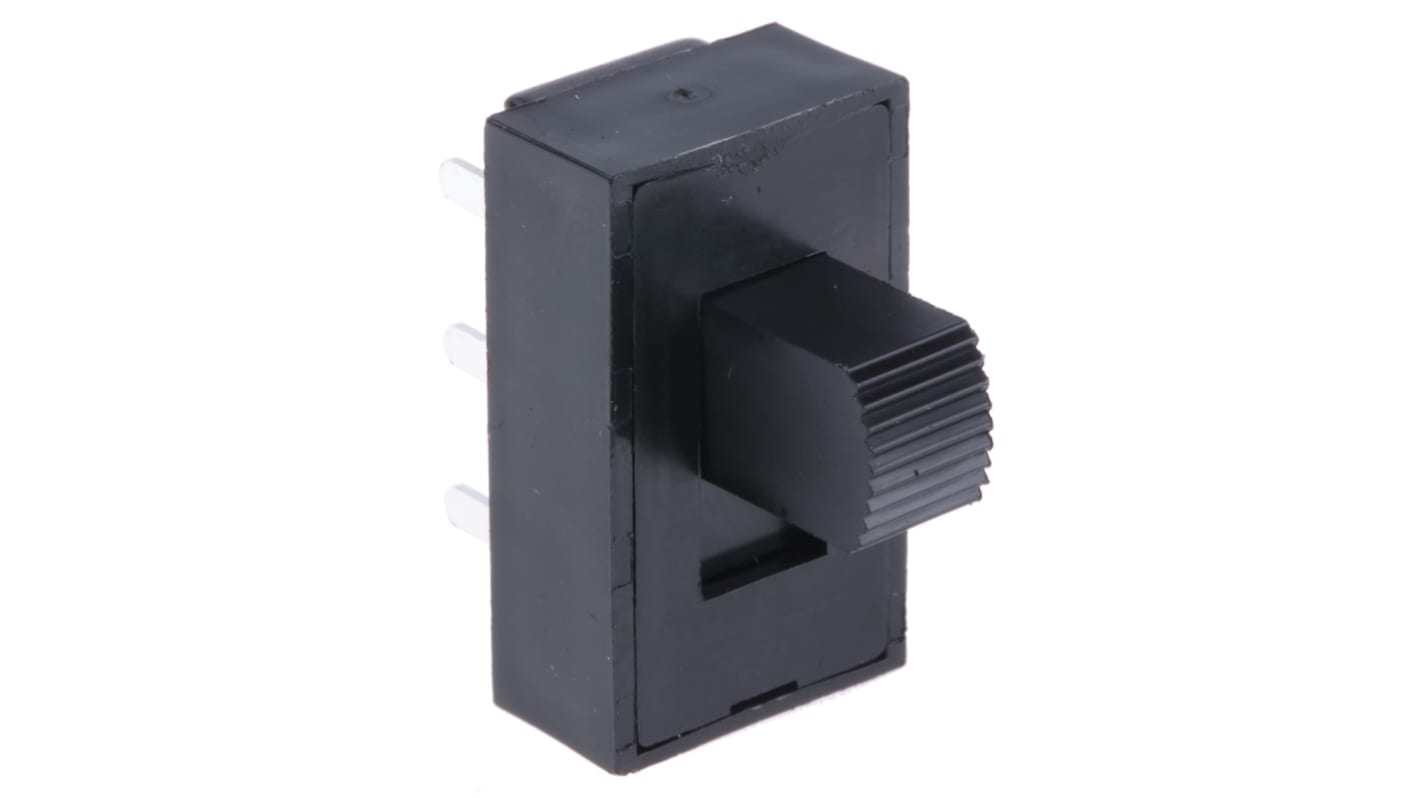

C&K - S Series Slide Switches
The S series slide switches are designed for use in a wide variety of applications including portable tools, small appliances and floor care products. They feature a high current rating of 6A at 250 Vac yet are still manufactured in a compact housing.
Approvals
UL; CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Mounting Type | PCB |
Contact Current Rating | 6 A @ 250 V ac |
Terminal Type | Through Hole |
Actuator Type | Slide |
Length | 22.99mm |
Width | 13.46mm |
Depth | 15.62mm |
Dimensions | 13.46 x 15.62 x 22.99mm |
Contact Resistance | 10mΩ |
Actuator Material | Nylon |
Minimum Operating Temperature | -30°C |
Contact Material | Silver Plated Copper |
Maximum Operating Temperature | +65°C |
Operating Temperature Range | -30 → +65°C |
