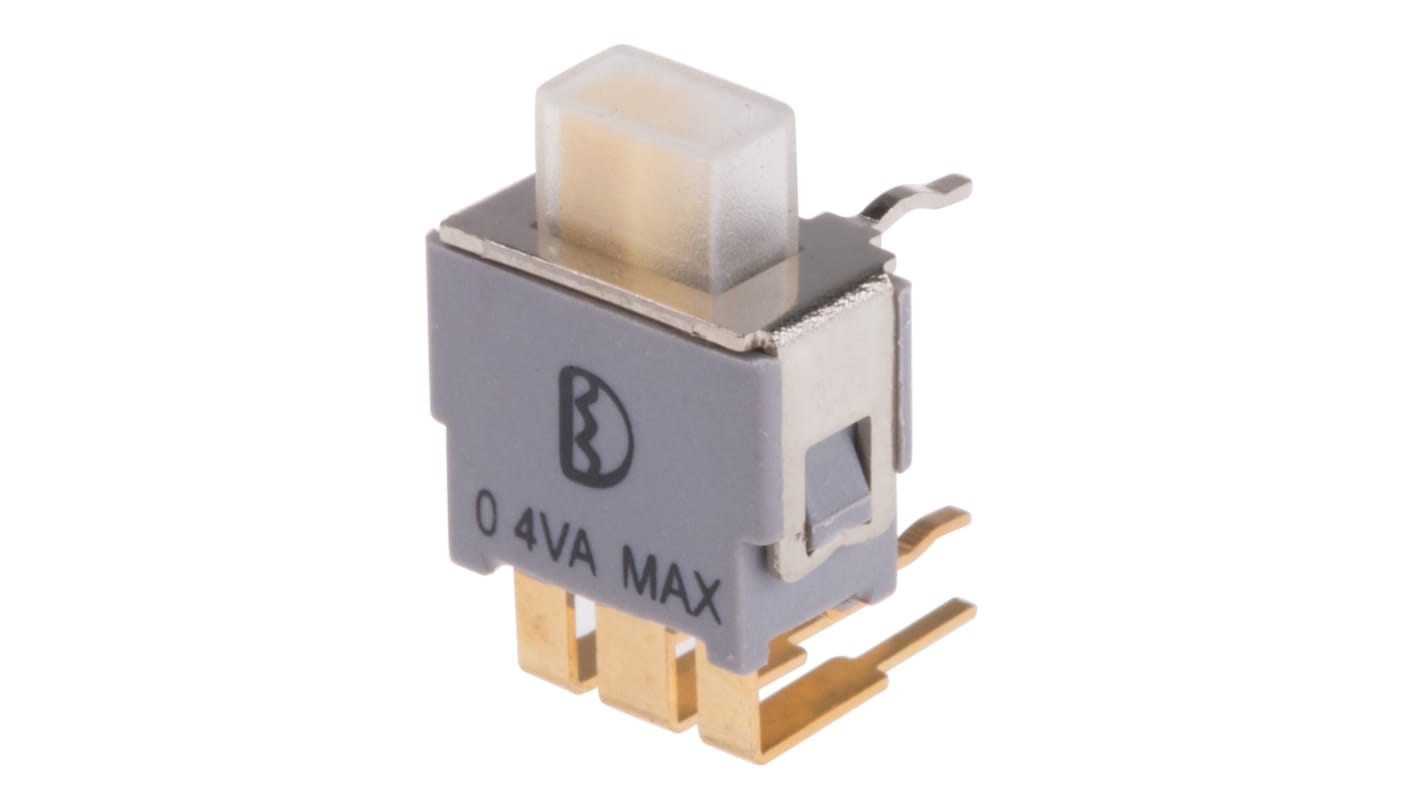

RS PRO IP67 PCB Slide Switch DPDT Latching 400mA Polybutylene Terephthalate
- RS Stock No.:
- 734-7356
- Brand:
- RS PRO
Subtotal (1 unit)*
Kr. 69,44
(exc. VAT)
Kr. 86,80
(inc. VAT)
FREE delivery for online orders over 750,00 kr
In Stock
- 418 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | Kr. 69,44 |
*price indicative
- RS Stock No.:
- 734-7356
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Slide Switch | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Switch Operation | Latching | |
| Switch Contact Current | 400mA | |
| IP Rating | IP67 | |
| Terminal Type | Solder | |
| Illuminated | No | |
| Contact DC Voltage | 48V dc | |
| Contact AC Voltage | 48V ac | |
| Switch Configuration | On-None-On | |
| Depth | 8mm | |
| Length | 9.5mm | |
| Standards/Approvals | RoHS, UL | |
| Width | 5mm | |
| Series | 5SES1 | |
| Mechanical Life | 40000Cycles | |
| Minimum Operating Temperature | -20°C | |
| Actuator Material | Polybutylene Terephthalate | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Slide Switch | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Switch Operation Latching | ||
Switch Contact Current 400mA | ||
IP Rating IP67 | ||
Terminal Type Solder | ||
Illuminated No | ||
Contact DC Voltage 48V dc | ||
Contact AC Voltage 48V ac | ||
Switch Configuration On-None-On | ||
Depth 8mm | ||
Length 9.5mm | ||
Standards/Approvals RoHS, UL | ||
Width 5mm | ||
Series 5SES1 | ||
Mechanical Life 40000Cycles | ||
Minimum Operating Temperature -20°C | ||
Actuator Material Polybutylene Terephthalate | ||
Maximum Operating Temperature 80°C | ||
RS - Micro Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Yellow PBT actuator, white PBT case and nickel plated brass housing
Epoxy seal and actuator boot make this switch washable
Typical applications include PCB control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
