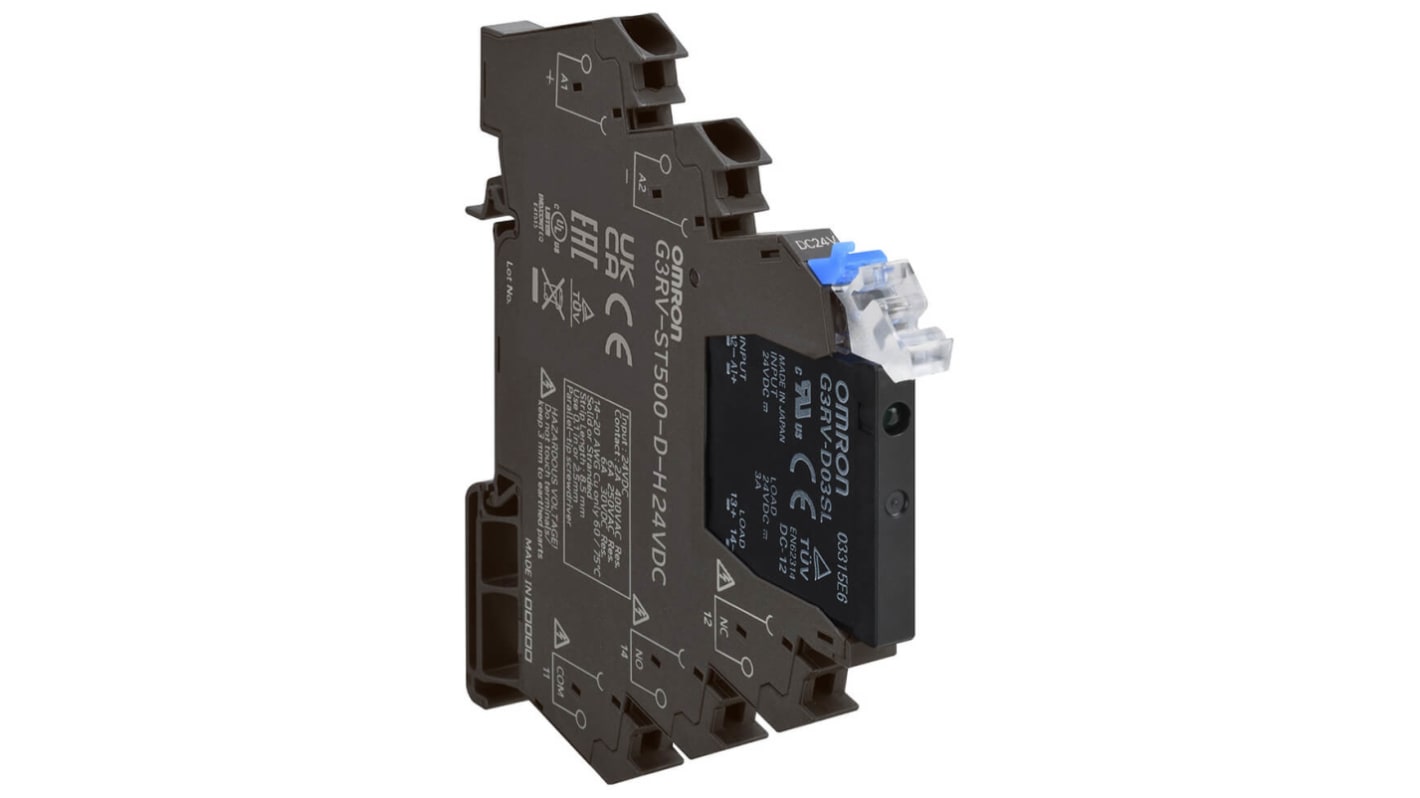

Omron G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount
- RS Stock No.:
- 271-1899
- Mfr. Part No.:
- G3RV-ST700-D AC/DC24
- Brand:
- Omron
Subtotal (1 unit)**
Kr. 526,00
(exc. VAT)
Kr. 657,50
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over kr 500,00
Units | Per unit |
|---|---|
| 1 + | Kr. 526,00 |
**price indicative
- RS Stock No.:
- 271-1899
- Mfr. Part No.:
- G3RV-ST700-D AC/DC24
- Brand:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Control Voltage | 24 V ac/dc | |
| Maximum Load Current | 3 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 26.4 Vdc | |
| Minimum Control Voltage | 21.6 V | |
| Control Voltage Range | 19.2 - 26.4 V | |
| Switching Type | High-Speed | |
| Contact Configuration | SPDT | |
| Load Voltage Range | 3 - 26.4V | |
| Minimum Load Voltage | 3 Vdc | |
| Terminal Type | Screw | |
| Number of Poles | 1 | |
| Input Current | 4.3mA | |
| Minimum Load Current | 0.1 mA | |
| Length | 88mm | |
| Rise Time | 6ms | |
| Width | 6.2mm | |
| Height | 90mm | |
| Series | G3RV-ST | |
| Output Device | Photovoltage Coupler | |
| Depth | 87.1mm | |
| Range | G3RV | |
| Special Features | 60% Space Saving, Easy Maintenance | |
| Standards Met | CSA C22.2 No.14, EN 62314, IEC 60529, UL | |
| Isolation Voltage | 2500V | |
| Off State Leakage Current | 5 mA | |
| Dimensions | 88 x 90 x 6.2mm | |
| Minimum Operating Temperature | -30°C | |
| Package Style | Carton Box | |
| Maximum Operating Temperature | +55°C | |
| Maximum Turn On Time | 6 ms | |
| Manufacturer Part No. | G3RV-ST700-D AC/DC24 | |
| Operating Temperature Range | -30 → 55°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Control Voltage 24 V ac/dc | ||
Maximum Load Current 3 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 26.4 Vdc | ||
Minimum Control Voltage 21.6 V | ||
Control Voltage Range 19.2 - 26.4 V | ||
Switching Type High-Speed | ||
Contact Configuration SPDT | ||
Load Voltage Range 3 - 26.4V | ||
Minimum Load Voltage 3 Vdc | ||
Terminal Type Screw | ||
Number of Poles 1 | ||
Input Current 4.3mA | ||
Minimum Load Current 0.1 mA | ||
Length 88mm | ||
Rise Time 6ms | ||
Width 6.2mm | ||
Height 90mm | ||
Series G3RV-ST | ||
Output Device Photovoltage Coupler | ||
Depth 87.1mm | ||
Range G3RV | ||
Special Features 60% Space Saving, Easy Maintenance | ||
Standards Met CSA C22.2 No.14, EN 62314, IEC 60529, UL | ||
Isolation Voltage 2500V | ||
Off State Leakage Current 5 mA | ||
Dimensions 88 x 90 x 6.2mm | ||
Minimum Operating Temperature -30°C | ||
Package Style Carton Box | ||
Maximum Operating Temperature +55°C | ||
Maximum Turn On Time 6 ms | ||
Manufacturer Part No. G3RV-ST700-D AC/DC24 | ||
Operating Temperature Range -30 → 55°C | ||
