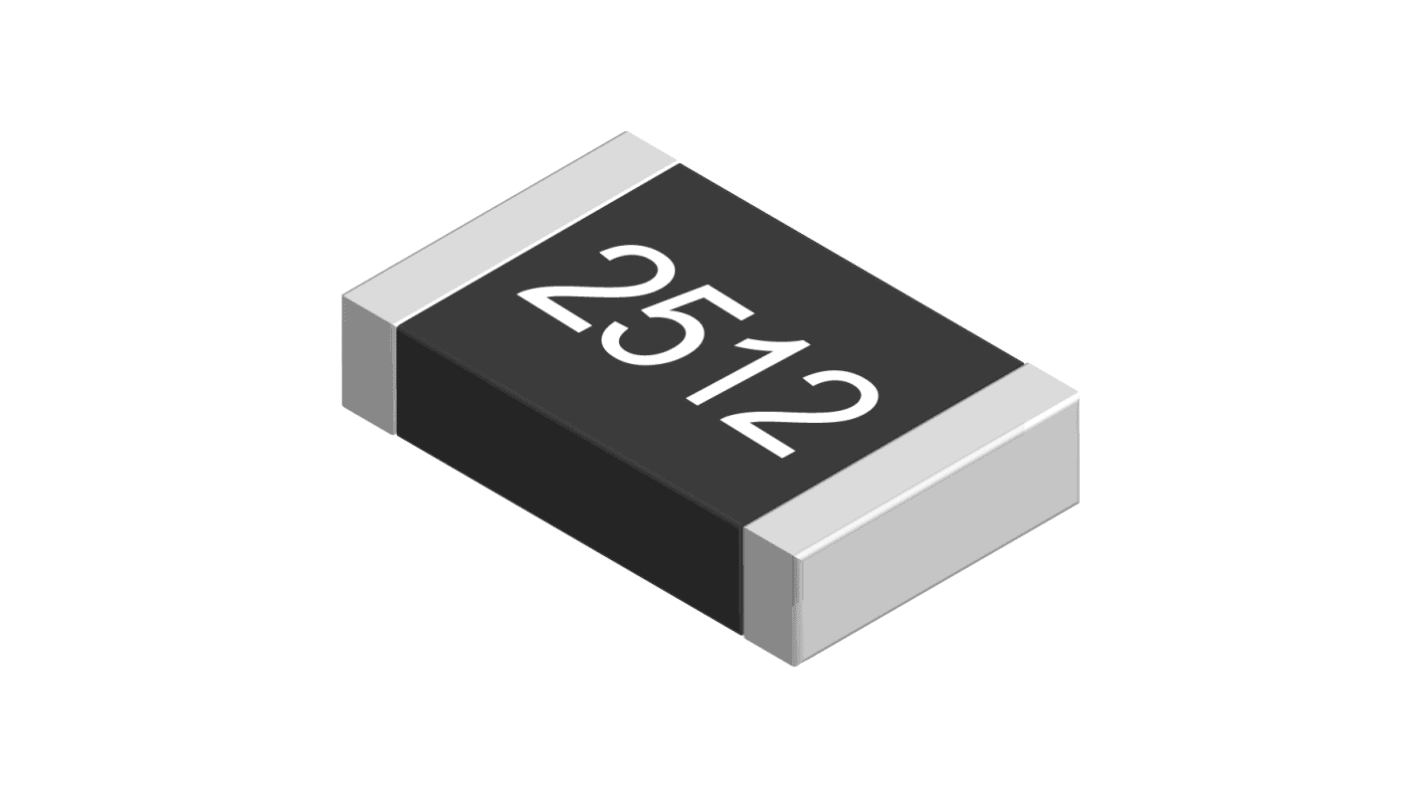

Vishay CRCW 2.2 kΩ, 2512 Thick Film Surface Mount Resistor ±1 % Surface 1 W - CRCW25122K20FKEG

RS Stock No.:: 679-2433
Mfr. Part No.:: CRCW25122K20FKEG
Brand:: Vishay

Vishay CRCW 2.2 kΩ, 2512 Thick Film Surface Mount Resistor ±1 % Surface 1 W - CRCW25122K20FKEG

Bulk discount available

Subtotal (1 pack of 25 units)*

Kr. 40,95

(exc. VAT)

Kr. 51,20

(inc. VAT)

FREE delivery for online orders over 500,00 kr

In Stock

75 unit(s) ready to ship from another location
Plus 1 275 unit(s) shipping from 11 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
25 - 100	Kr. 1,638	Kr. 40,95
125 - 225	Kr. 0,801	Kr. 20,03
250 - 600	Kr. 0,778	Kr. 19,45
625 - 1225	Kr. 0,764	Kr. 19,10
1250 +	Kr. 0,741	Kr. 18,53

*price indicative

RS Stock No.:: 679-2433
Mfr. Part No.:: CRCW25122K20FKEG
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Product Type	Surface Mount Resistor
	Resistance	2.2kΩ
	Resistor Type	Zero Ohm
	Technology	Thick Film
	Package/Case	2512
	Packaging	Blister Tape
	Tolerance	±1 %
	Power Rating	1W
	Voltage	500 V
	Temperature Coefficient	-100 ppm/°C, +100 ppm/°C
	Mount Type	Surface
	Automotive Standard	AEC-Q200
	Series	CRCW
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Width	3.15 mm
	Height	0.6mm
	Length	6.3mm
	Termination Style	Solder
	Standards/Approvals	EN 60115-1, IEC 60068-2, IEC 61249-2-21, JEDEC JS709A, RoHS

	Select all
	Brand Vishay
	Product Type Surface Mount Resistor
	Resistance 2.2kΩ
	Resistor Type Zero Ohm
	Technology Thick Film
	Package/Case 2512
	Packaging Blister Tape
	Tolerance ±1 %
	Power Rating 1W
	Voltage 500 V
	Temperature Coefficient -100 ppm/°C, +100 ppm/°C
	Mount Type Surface
	Automotive Standard AEC-Q200
	Series CRCW
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Width 3.15 mm
	Height 0.6mm
	Length 6.3mm
	Termination Style Solder
	Standards/Approvals EN 60115-1, IEC 60068-2, IEC 61249-2-21, JEDEC JS709A, RoHS

Datasheet

2512 Format CRCW Series - 1% (Paper T/R) (1Ω to 1MΩ)

Features

• Stability R/R = 1 % for 1000 h at 70 ° C

• 2 mm pitch packaging option for 0603 size

• Pure tin solder contacts on Ni barrier layer provides compatibility with lead (Pb)-free and lead containing soldering processes

• Metal glaze on high quality ceramic

• AEC-Q200 qualified

Vishay CRCW 2.2 kΩ, 2512 Thick Film Surface Mount Resistor ±1 % Surface 1 W - CRCW25122K20FKEG

FREE delivery for online orders over 500,00 kr

2512 Format CRCW Series - 1% (Paper T/R) (1Ω to 1MΩ)
